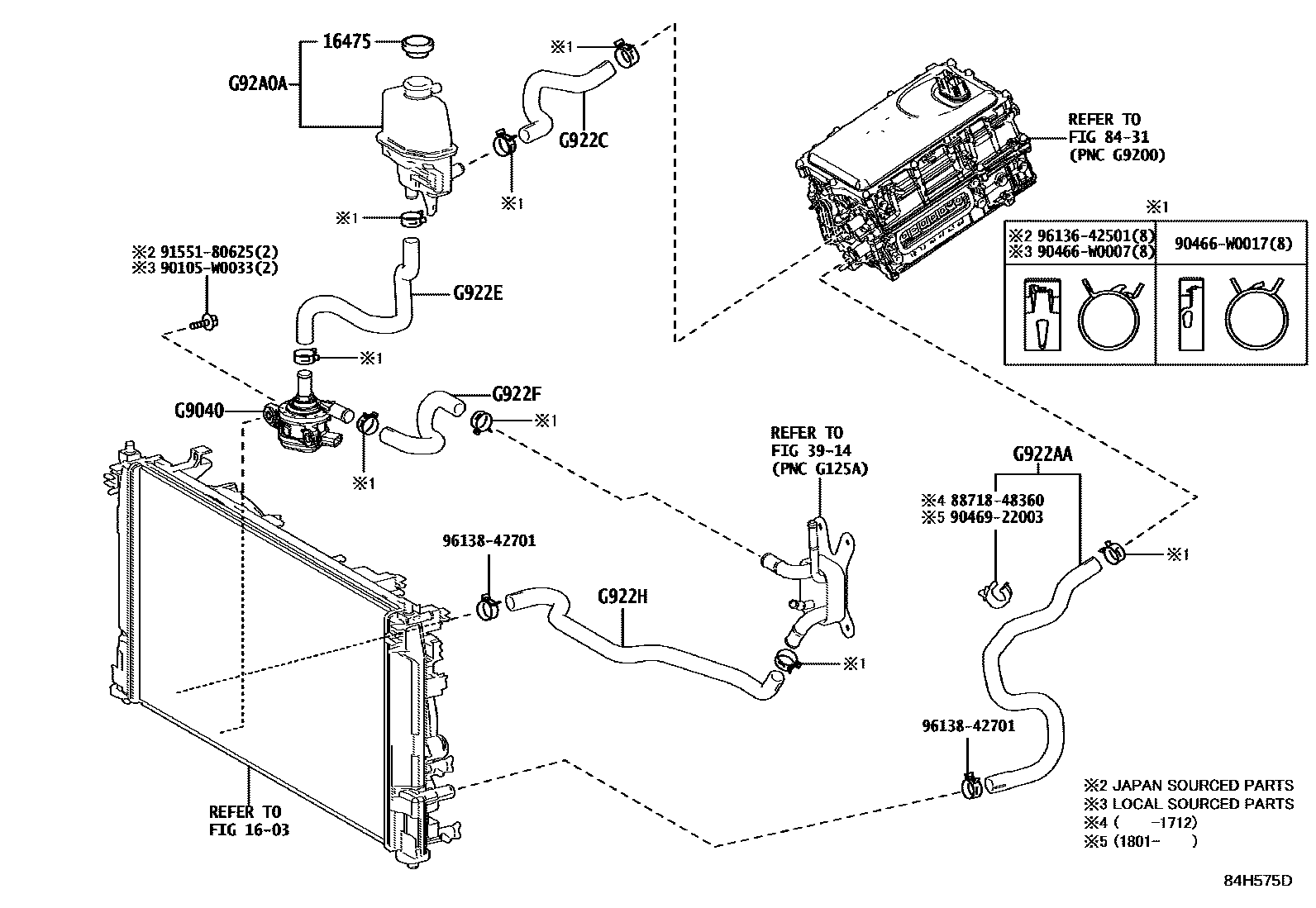

Toyota C-HR — INVERTER COOLING

0001 1 0002 1 0003 1

1603

16475CAP, RESERVE TANK

main16475-28140i2ZRFXE..ZYX10¥1,200201703-201909

main16475-28140iM20AFXS,2ZRFXE..MAXH10,ZYX1#¥1,200201909

main16475-37011i2ZRFXE..ZYX10¥1,200201610-201703

sub16475-28140¥1,200

3914

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904033050iMAXH10201909

mainG904047040iZYX10201610-201909

mainG904047040iZYX1#201909

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A02040iMAXH10201909

mainG922AF4010iZYX10201610-201909

mainG922AF4010iZYX1#201909

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C02040iMAXH10201909

mainG922CF4010iZYX10201610-201909

mainG922CF4010iZYX1#201909

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E02040iMAXH10201909

mainG922EF4010iZYX10201610-201909

mainG922EF4010iZYX1#201909

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F02040iMAXH10201909

mainG922FF4010iZYX10201610-201909

mainG922FF4010iZYX1#201909

G922HHOSE, HYBRID RADIATOR INLET

mainG922H02040iMAXH10201909

mainG922HF4010iZYX1#201909

mainG922HF4010iZYX10201610-201909

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H0F4010iZYX10201610-201702

subG91H0-F4011

mainG91H0F4011iZYX10201703-201909

mainG91H0F4011iZYX1#201909

mainG91H0F4040iMAXH10201909

8871848360PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48360

90105W0033

main90105-W0033¥60

90466W0007

main90466-W0007¥200

90466W0017

main90466-W0017

9046922003

main90469-22003¥110

9155180625

main91551-80625¥60

9613642501

main96136-42501¥200

9613842701

main96138-42701¥200

19 parts on this diagram · 3 diagrams in section
