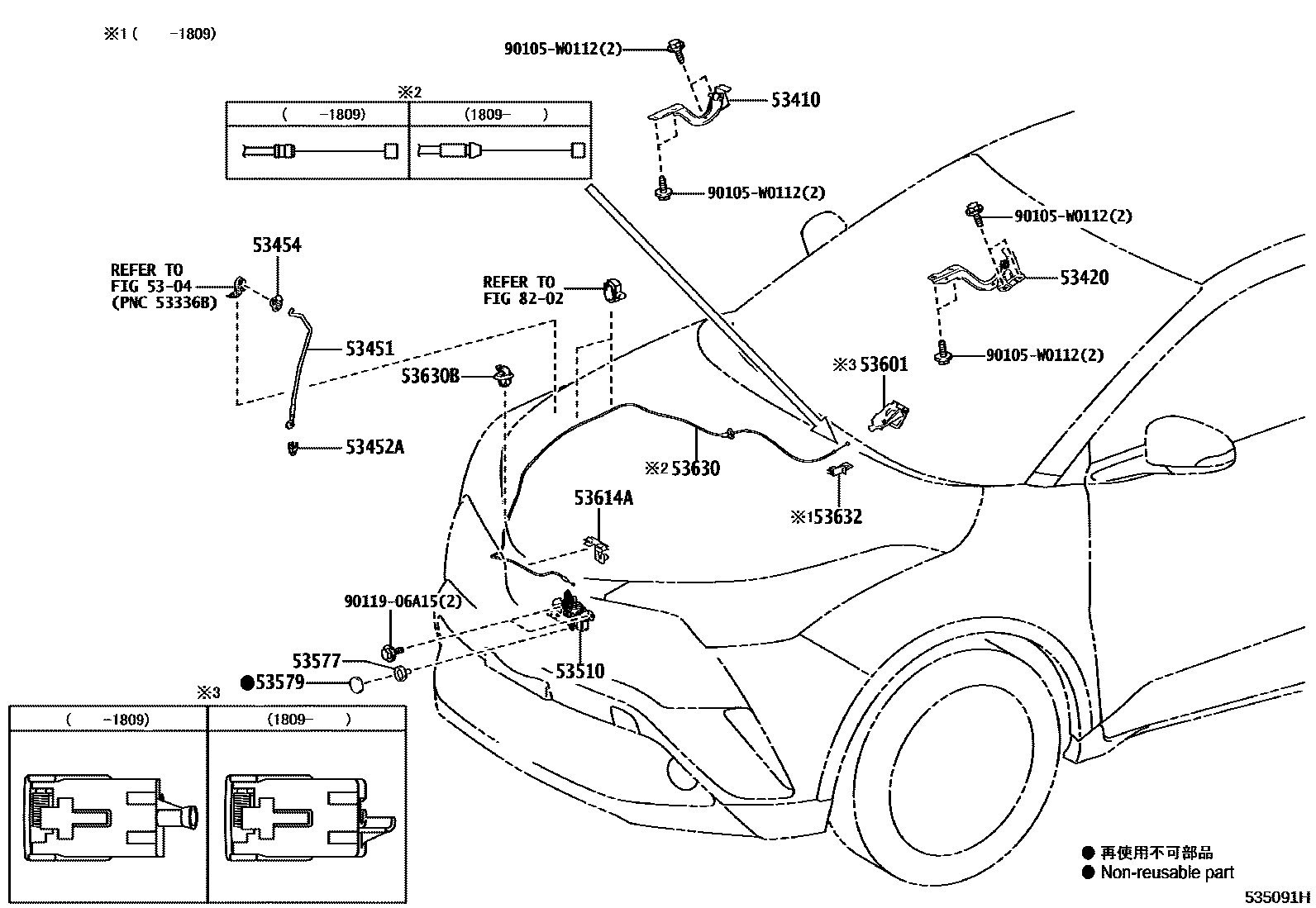

Toyota C-HR — HOOD LOCK & HINGE

5304

53410HINGE ASSY, HOOD, RH

main53410-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909

main53410-F4010iNGX10..RUS201909-202112

main53410-F4010iNGX10,50,ZGX10,ZYX10201610-201909

53420HINGE ASSY, HOOD, LH

main53420-F4010iNGX10,50,ZGX10,ZYX10201610-201909

main53420-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909

main53420-F4010iNGX10..RUS201909-202112

53451ROD, HOOD SUPPORT

main53440-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909

main53440-F4010iNGX10..RUS201909-202112

main53440-F4010iNGX10,50,ZGX10,ZYX10201610-201909

53452AHOLDER, HOOD STAY

main53452-F4012iNGX10,50,ZGX10,ZYX10201610-201909

main53452-F4012iNGX10..RUS201909-202112

main53452-F4012iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909

53454CLIP, HOOD SUPPORT ROD

main53454-12030iNGX10,50,ZGX10,ZYX10¥100201610-201909

main53454-12030iNGX10..RUS¥100201909-202112

main53454-12030iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥100201909

53510LOCK ASSY, HOOD

main53510-F4020iNGX10..LHD..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD201909

main53510-F4020iNGX10,50,ZGX10,ZYX10..LHD201610-201909

main53510-F4020iNGX10..RUS201909-202112

main53510-F4030iMAXH10,NGX10,ZYX1#..RHD201909

main53510-F4030iNGX10,50,ZYX10..RHD201610-201909

53577BOLT, HOOD LOCK

main53577-33010iNGX10..RUS¥230201909-202112

main53577-33010iNGX10,50,ZGX10,ZYX10¥230201610-201909

main53577-33010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥230201909

53579CAP, HOOD LOCK NUT

main53579-50010iNGX10..RUS¥100201909-202112

main53579-50010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥100201909

main53579-50010iNGX10,50,ZGX10,ZYX10¥100201610-201909

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-05030-C1iNGX10,50,ZGX10,ZYX10201610-201805

EU BLACK,TRIM2#

sub53601-05030¥1,410

main53601-05030-C2iNGX10,50,ZGX10,ZYX10201805-201809

BLACK,TRIM2#

sub53601-05030¥1,410

main53601-F4020-C0iZYX10..RHD..G201909

BLACK,TRIM2#,4#,8#

sub53601-F4020¥1,860

main53601-F4020-C0iZYX10..RHD..G201909

BLACK,TRIM2#

sub53601-F4020¥1,860

main53601-F4020-C0iNGX10..(E,G,K)..EUR;ZYX10..LHD..(E,G,K);MAXH10,NGX50,ZGX10,ZYX11..E,G,K201909

BLACK,TRIM2#,8#

sub53601-F4020¥1,860

main53601-F4020-C0iNGX10,50,ZGX10,ZYX10201809-201909

BLACK,TRIM2#

sub53601-F4020¥1,860

main53601-F4020-C0iNGX10..N..RUS201909-202112

BLACK,TRIM2#

sub53601-F4020¥1,860

main53601-F4020-C0iNGX10..N..RUS201909-202112

BLACK,TRIM2#,4#,8#

sub53601-F4020¥1,860

53614ACLAMP, HOOD LOCK CONTROL CABLE, NO.1

main53614-F4010iNGX10,50,ZGX10,ZYX10201610-201909

main53614-F4010iNGX10..RUS201909-202112

main53614-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-F4010iNGX10,50,ZYX10..RHD201610-201809

main53630-F4011iNGX10,50,ZYX10..RHD201809-201909

main53630-F4011iMAXH10,NGX10,ZYX1#..RHD201909

main53630-F4020iNGX10,50,ZGX10,ZYX10..LHD201610-201809

main53630-F4021iNGX10..RUS201909-202112

main53630-F4021iNGX10,50,ZGX10,ZYX10..LHD201809-201909

main53630-F4021iNGX10..LHD..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD201909

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iNGX10,50,ZGX10,ZYX10¥80201610-201909

main90469-06005iNGX10..RUS¥80201909-202112

main90469-06005iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥80201909

53632HOLDER, HOOD LOCK CONTROL CABLE

main53632-10010iNGX10,50,ZGX10,ZYX10¥200201610-201809

8202

90105W0112

main90105-W0112

9011906A15

main90119-06A15¥60

17 parts on this diagram · 1 diagram in section
