Toyota C-HR — HEV INVERTER

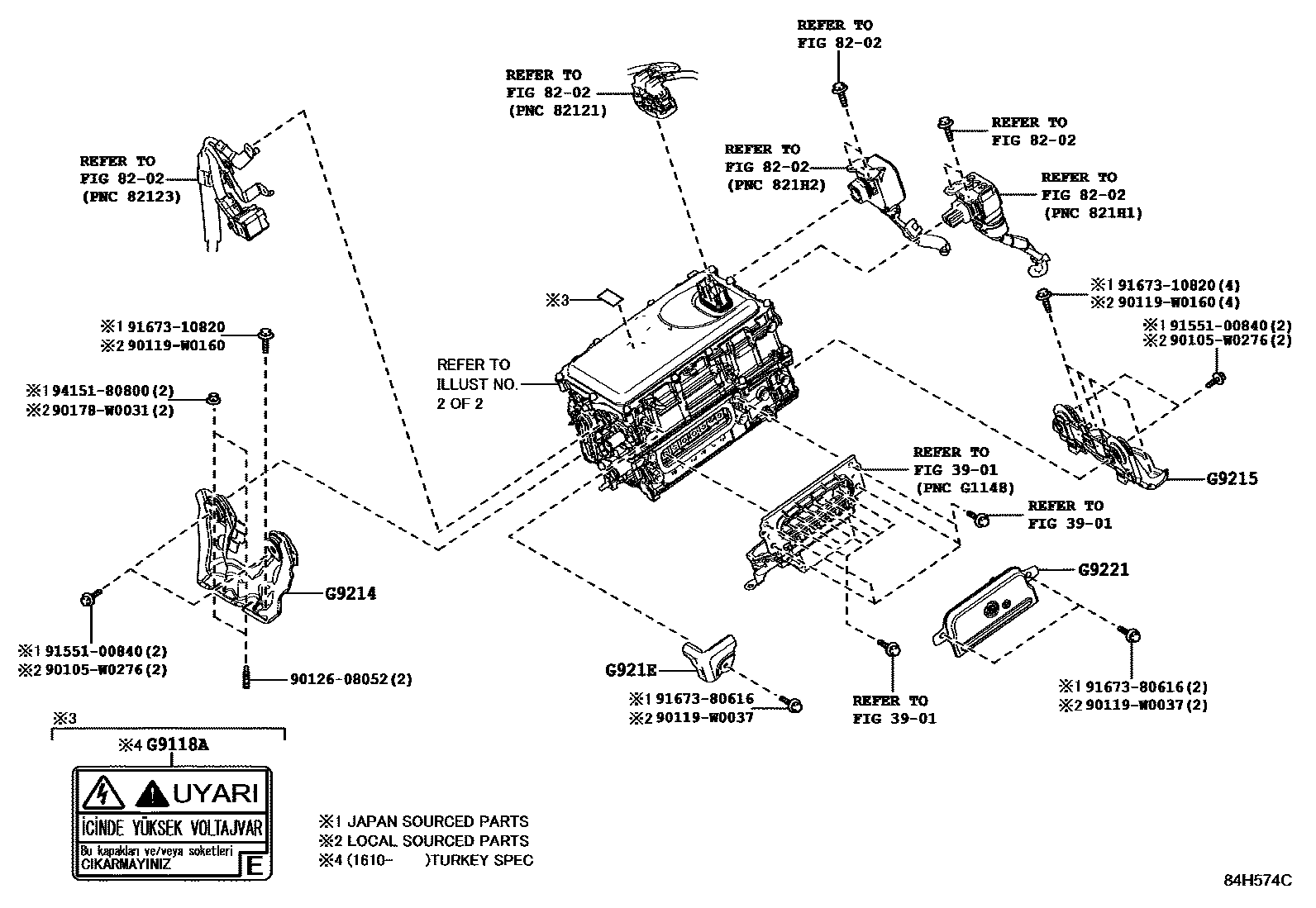

0001 1 0002 1INVERTER ASSY 0003 1 0004 1

3901

8202

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

G9214BRACKET, INVERTER, NO.1

mainG921433040iMAXH10201909

mainG921447070iZYX1#201610-201909

G9215BRACKET, INVERTER, NO.2

mainG921533040iMAXH10201909

mainG921547050iZYX1#201610-201909

G921EPROTECTOR, INVERTER

mainG921E47010iZYX10201610-201909

G9221COVER, INVERTER

mainG902247050iZYX10201610-201909

90105W0276

main90105-W0276

90119W0037

main90119-W0037¥60

90119W0160

main90119-W0160

9012608052

main90126-08052¥80

90178W0031

main90178-W0031¥100

9155100840

main91551-00840¥80

9167310820

main91673-10820¥80

9167380616

main91673-80616¥60

9415180800

main94151-80800¥80

16 parts on this diagram · 4 diagrams in section
