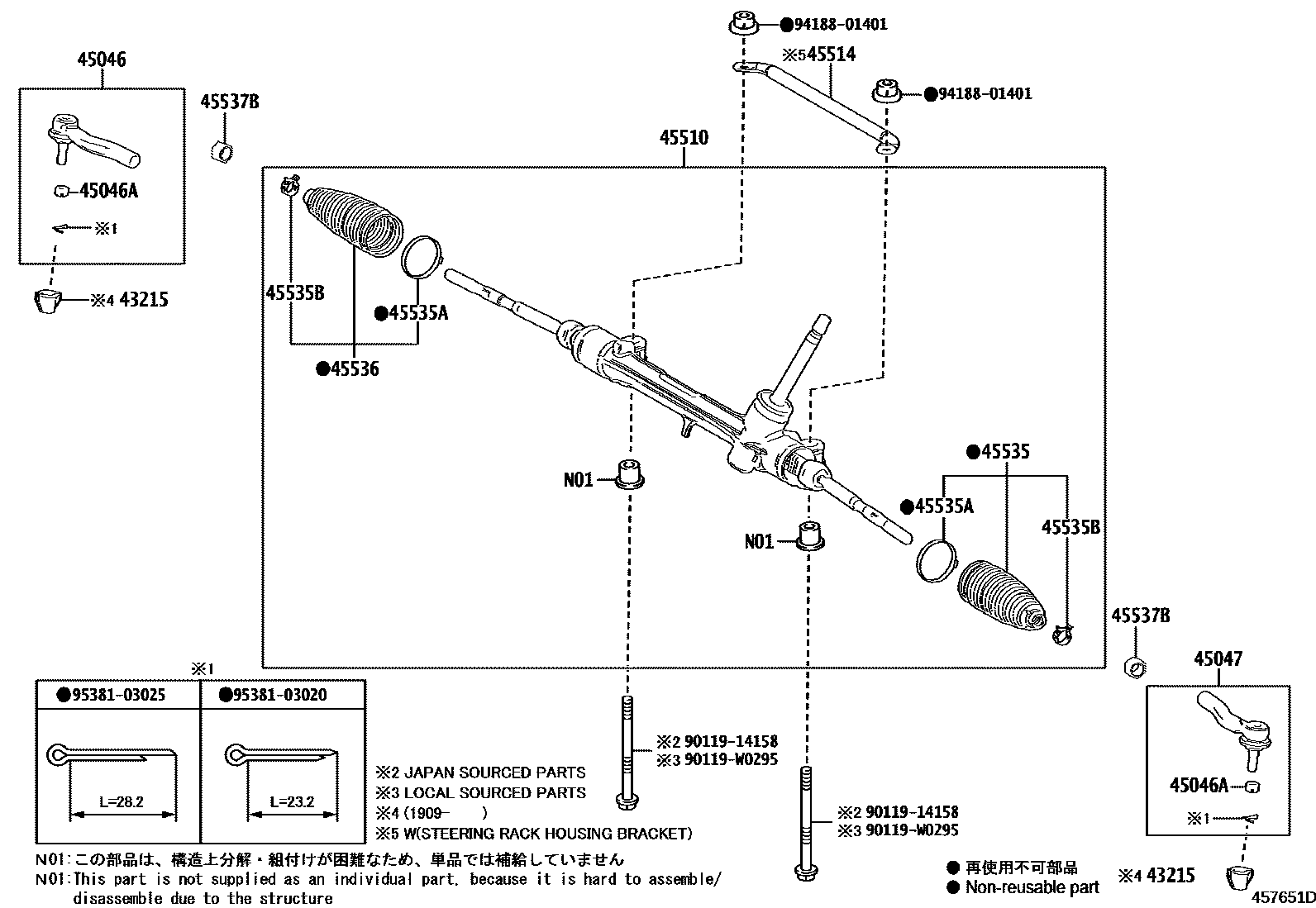

Toyota C-HR — FRONT STEERING GEAR & LINK

0001 1 0002 1

43215SEAL, STEERING KNUCKLE

main43215-12010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥210201909-202112

45046END SUB-ASSY, TIE ROD, RH

main45046-F9010iNGX10,50,ZGX10,ZYX10201610-202112

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iNGX10,50,ZGX10,ZYX10¥130201610-202112

45047END SUB-ASSY, TIE ROD, LH

main45047-F9010iNGX10,50,ZGX10,ZYX10201610-202112

45510GEAR ASSY, STEERING

main45510-F4010iNGX10..RUS201610-202309

sub45510-F4011

main45510-F4011iMAXH10,NGX10,50,ZGX10,ZYX1#..LHD..CVT202310

main45510-F4020iMAXH10,NGX10,ZYX1#..RHD201610-202309

sub45510-F4021

main45510-F4021iMAXH10,ZYX1#..RHD202310

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-76010¥2,090

45535BOOT, STEERING RACK, NO.1

main45535-F9010iNGX10,50,ZGX10,ZYX10201610-202112

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-F4010iNGX10,50,ZGX10,ZYX10201610-202112

45535BCLIP(FOR STEERING RACK BOOT)

main45537-02010iNGX10,50,ZGX10,ZYX10¥200201610-202112

45536BOOT, STEERING RACK, NO.2

main45535-F9010iNGX10,50,ZGX10,ZYX10201610-202112

45537BNUT, RACK END LOCK

main90178-16001iNGX10,50,ZGX10,ZYX10¥120201610-202112

9011914158

main90119-14158¥430

90119W0295

main90119-W0295

9418801401

main94188-01401¥190

9538103020

main95381-03020¥90

9538103025

main95381-03025¥130

16 parts on this diagram · 2 diagrams in section
