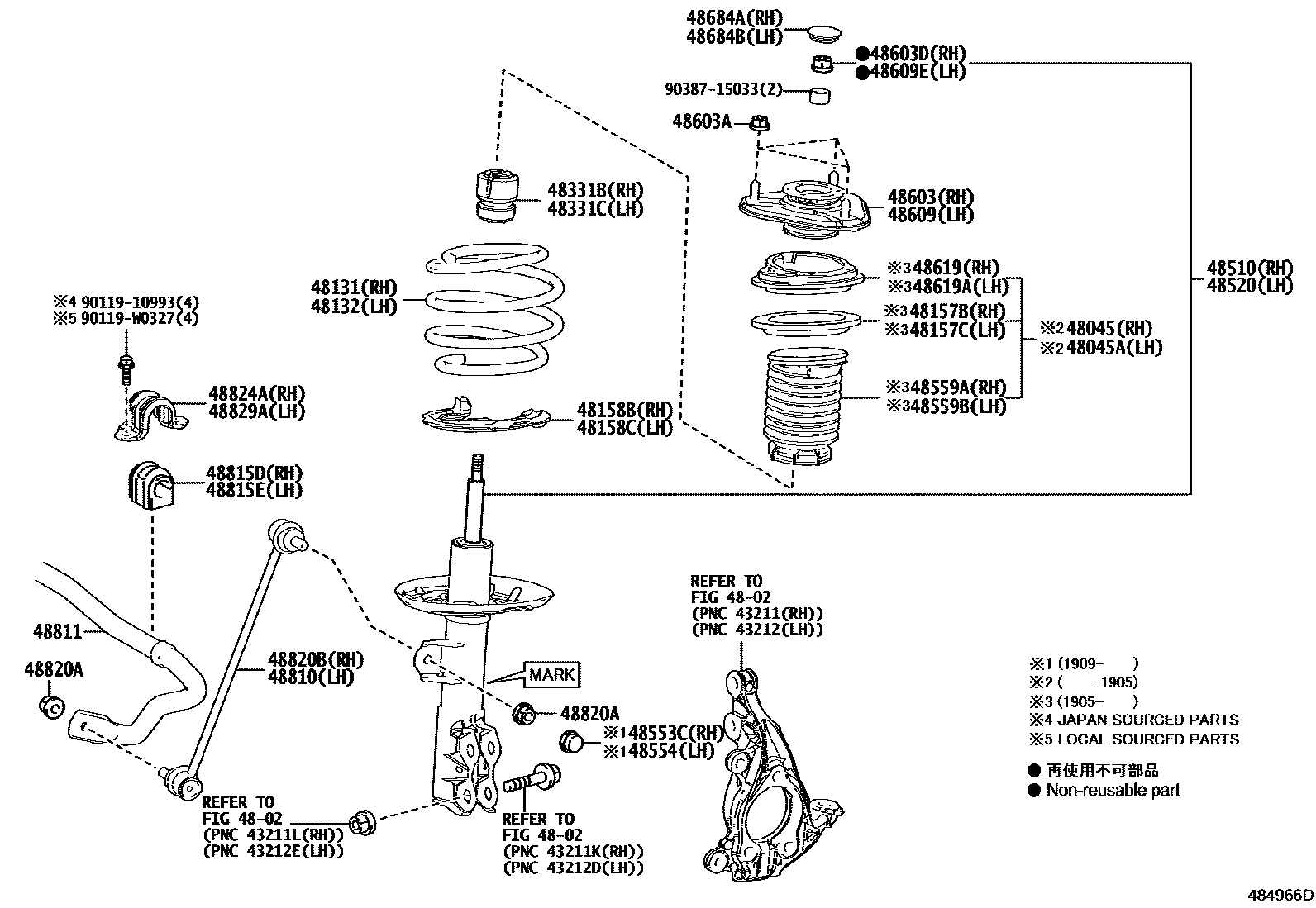

Toyota C-HR — FRONT SPRING & SHOCK ABSORBER

4802

48045SEAT SUB-ASSY, FRONT SPRING RH, W/INSULATOR

main48045-F4010iNGX10,50,ZGX10,ZYX10201610-201905

sub48157-F4010

sub48559-F4010

sub48619-F4010¥3,030

48045ASEAT SUB-ASSY, FRONT SPRING LH, W/INSULATOR

main48045-F4010iNGX10,50,ZGX10,ZYX10201610-201905

sub48157-F4010

sub48559-F4010

sub48619-F4010¥3,030

48131SPRING, FRONT COIL, RH

main48131-F4010iNGX10..EUR201610-201805

main48131-F4011iNGX10..EUR201909

main48131-F4011iNGX10..EUR201806-201909

main48131-F4020iNGX50..EUR201610-201805

main48131-F4021iNGX50..EUR201909

main48131-F4021iNGX50..EUR201806-201909

main48131-F4030iNGX10..RUS201610-201708

sub48131-F4031

main48131-F4031iNGX10..RUS201709-201805

main48131-F4032iNGX10..RUS201909-202112

main48131-F4032iNGX10..RUS201806-201909

main48131-F4040iNGX50,ZGX10..RUS201610-201708

sub48131-F4041

main48131-F4041iNGX50,ZGX10..RUS201709-201805

main48131-F4042iNGX50,ZGX10..RUS201806-201909

main48131-F4042iNGX50,ZGX10..RUS201909

main48131-F4060iZYX10201610-201805

ECO PACKAGE

main48131-F4061iNGX10..6F..N..EUR201806-201909

ECO PACKAGE

main48131-F4061iZYX1#201909

main48131-F4130iMAXH10201909

48132SPRING, FRONT COIL, LH

main48131-F4010iNGX10..EUR201610-201805

main48131-F4011iNGX10..EUR201909

main48131-F4011iNGX10..EUR201806-201909

main48131-F4020iNGX50..EUR201610-201805

main48131-F4021iNGX50..EUR201909

main48131-F4021iNGX50..EUR201806-201909

main48131-F4030iNGX10..RUS201610-201708

sub48131-F4031

main48131-F4031iNGX10..RUS201709-201805

main48131-F4032iNGX10..RUS201909-202112

main48131-F4032iNGX10..RUS201806-201909

main48131-F4040iNGX50,ZGX10..RUS201610-201708

sub48131-F4041

main48131-F4041iNGX50,ZGX10..RUS201709-201805

main48131-F4042iNGX50,ZGX10..RUS201909

main48131-F4042iNGX50,ZGX10..RUS201806-201909

main48131-F4060iZYX10201610-201805

ECO PACKAGE

main48131-F4061iZYX1#201909

main48131-F4061iZYX10201806-201909

ECO PACKAGE

main48131-F4130iMAXH10201909

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-F4010iNGX10,50,ZGX10,ZYX10201905-201909

main48157-F4010iNGX10..RUS201909-202112

main48157-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-F4010iNGX10..RUS201909-202112

main48157-F4010iNGX10,50,ZGX10,ZYX10201905-201909

main48157-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-F4010iNGX10,50,ZGX10,ZYX10201610-201909

main48158-F4010iNGX10..RUS201909-202112

main48158-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-F4010iNGX10,50,ZGX10,ZYX10201610-201909

main48158-F4010iNGX10..RUS201909-202112

main48158-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909

48331BBUMPER, FRONT SPRING, RH

main48331-F4010iNGX10,50,ZGX10,ZYX10¥360201610-201909

main48331-F4010iNGX10..RUS¥360201909-202112

main48331-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥360201909

48331CBUMPER, FRONT SPRING, LH

main48331-F4010iNGX10,50,ZGX10,ZYX10¥360201610-201909

main48331-F4010iNGX10..RUS¥360201909-202112

main48331-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥360201909

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-F9010iNGX10¥21,300201610-201805

MARK 48510-F4010

main48510-F9011iNGX10..EUR¥17,800201909

MARK 48510-F4011

main48510-F9011iNGX10¥17,800201805-201909

MARK 48510-F4011

main48510-F9011iNGX10..RUS¥17,800201909-202112

MARK 48510-F4011

main48510-F9020iZYX10¥21,300201610-201805

MARK 48510-F4020

main48510-F9021iZYX1#¥17,800201909

MARK 48510-F4021

main48510-F9021iZYX10¥17,800201805-201909

MARK 48510-F4021

main48510-F9030iNGX50¥21,300201610-201805

MARK 48510-F4030

main48510-F9031iNGX50¥17,800201805-201909

MARK 48510-F4031

main48510-F9031iNGX50¥17,800201909

MARK 48510-F4031

main48510-F9040iZGX10201610-201805

MARK 48510-F4040

main48510-F9041iZGX10201805-201909

MARK 48510-F4041

main48510-F9041iZGX10201909

MARK 48510-F4041

main48510-F9110iMAXH10201909

MARK 48510-F4120

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-F9010iNGX10¥21,300201610-201805

MARK 48520-F4010

main48520-F9011iNGX10¥17,800201805-201909

MARK 48520-F4011

main48520-F9011iNGX10..EUR¥17,800201909

MARK 48520-F4011

main48520-F9011iNGX10..RUS¥17,800201909-202112

MARK 48520-F4011

main48520-F9020iZYX10¥21,300201610-201805

MARK 48520-F4020

main48520-F9021iZYX10¥17,800201805-201909

MARK 48520-F4021

main48520-F9021iZYX1#¥17,800201909

MARK 48520-F4021

main48520-F9030iNGX50¥21,300201610-201805

MARK 48520-F4030

main48520-F9031iNGX50¥17,800201909

MARK 48520-F4031

main48520-F9031iNGX50¥17,800201805-201909

MARK 48520-F4031

main48520-F9040iZGX10201610-201805

MARK 48520-F4040

main48520-F9041iZGX10201805-201909

MARK 48520-F4041

main48520-F9041iZGX10201909

MARK 48520-F4041

main48520-F9110iMAXH10201909

MARK 48520-F4120

48553CCAP, FRONT SHOCK ABSORBER, RH

main48553-52030iNGX10..RUS¥60201909-202112

main48553-52030iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥60201909

48554CAP, FRONT SHOCK ABSORBER, LH

main48553-52030iNGX10..RUS¥60201909-202112

main48553-52030iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥60201909

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-F4010iNGX10,50,ZGX10,ZYX10201905-201906

sub48559-F4011

main48559-F4011iNGX10,50,ZGX10,ZYX10201907-201909

main48559-F4011iNGX10..RUS201909-202112

main48559-F4011iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-F4010iNGX10,50,ZGX10,ZYX10201905-201906

sub48559-F4011

main48559-F4011iNGX10,50,ZGX10,ZYX10201907-201909

main48559-F4011iNGX10..RUS201909-202112

main48559-F4011iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-F4010iNGX10,50,ZGX10,ZYX10201610-201909

main48609-F4010iNGX10..RUS201909-202112

main48609-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10029iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥100201909

(J)

main90178-10029iNGX10,50,ZGX10,ZYX10¥100201610-201909

main90178-10029iNGX10..RUS¥100201909-202112

(J)

main90178-W0060iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥100201909

(L)

main90178-W0060iNGX10..RUS¥100201909-202112

(L)

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14005iNGX10,50,ZGX10,ZYX10¥120201610-201909

main90177-14005iNGX10..RUS¥120201909-202112

main90177-14005iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥120201909

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-F4010iNGX10,50,ZGX10,ZYX10201610-201909

main48609-F4010iNGX10..RUS201909-202112

main48609-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14005iNGX10,50,ZGX10,ZYX10¥120201610-201909

main90177-14005iNGX10..RUS¥120201909-202112

main90177-14005iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥120201909

48619BEARING, STRUT MOUNTING, RH

main48619-F4010iNGX10,50,ZGX10,ZYX10¥3,030201905-201909

main48619-F4010iNGX10..RUS¥3,030201909-202112

main48619-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥3,030201909

48619ABEARING, STRUT MOUNTING, LH

main48619-F4010iNGX10,50,ZGX10,ZYX10¥3,030201905-201909

main48619-F4010iNGX10..RUS¥3,030201909-202112

main48619-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥3,030201909

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52010iNGX10,50,ZGX10,ZYX10¥600201610-201909

main48684-52010iNGX10..RUS¥600201909-202112

main48684-52010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥600201909

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52010iNGX10,50,ZGX10,ZYX10¥600201610-201909

main48684-52010iNGX10..RUS¥600201909-202112

main48684-52010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥600201909

48810LINK ASSY, FRONT STABILIZER, LH

main48820-47040iNGX10,50,ZGX10,ZYX10¥3,320201610-201909

main48820-47040iNGX10..RUS¥3,320201909-202112

main48820-47040iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥3,320201909

48811BAR, STABILIZER, FRONT

main48811-F4010iNGX10,50,ZGX10,ZYX10201610-201909

main48811-F4010iNGX10..RUS201909-202112

main48811-F4010iNGX50,ZGX10;NGX10,ZYX1#..EUR201909

main48811-F4070iMAXH10201909

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-F4010iNGX10,50,ZGX10,ZYX10201610-201711

sub48815-F4011¥570

main48815-F4011iNGX10,50,ZGX10,ZYX10¥570201712-201909

main48815-F4011iNGX10..RUS¥570201909-202112

main48815-F4011iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥570201909

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-F4010iNGX10,50,ZGX10,ZYX10201610-201711

sub48815-F4011¥570

main48815-F4011iNGX10,50,ZGX10,ZYX10¥570201712-201909

main48815-F4011iNGX10..RUS¥570201909-202112

main48815-F4011iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥570201909

48820ANUT(FOR FRONT STABILIZER LINK)

main90178-W0051iNGX10,50,ZGX10,ZYX10¥100201610-201909

(L)

main90178-W0051iNGX10..RUS¥100201909-202112

(L)

main90178-W0051iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥100201909

(L)

main94151-21241iNGX10,50,ZGX10,ZYX10¥100201610-201909

(J)

main94151-21241iNGX10..RUS¥100201909-202112

(J)

main94151-21241iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥100201909

(J)

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-47040iNGX10..RUS¥3,320201909-202112

main48820-47040iNGX10,50,ZGX10,ZYX10¥3,320201610-201909

main48820-47040iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥3,320201909

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-F4010iNGX10,50,ZGX10,ZYX10201610-201909

main48824-F4010iNGX10..RUS201909-202112

main48824-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-F4010iNGX10,50,ZGX10,ZYX10201610-201909

main48824-F4010iNGX10..RUS201909-202112

main48824-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909

9011910993

main90119-10993¥120

90119W0327

main90119-W0327

9038715033

main90387-15033¥200

37 parts on this diagram · 1 diagram in section
