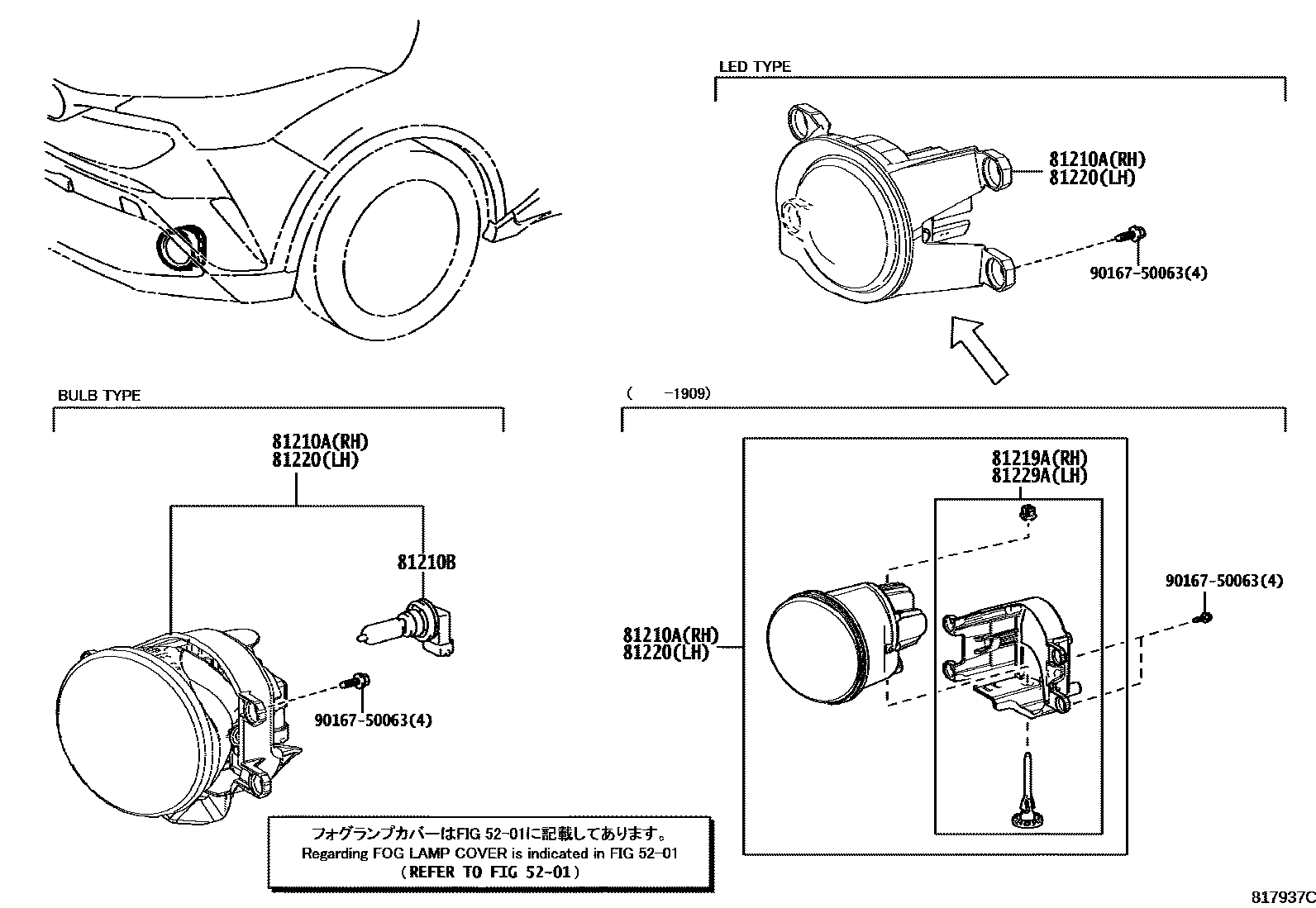

Toyota C-HR — FOG LAMP

0001 1 0002 1

5201

81210ALAMP ASSY, FOG, RH

main81210-02110iNGX10..K..RUS¥8,900201909-202112

FRONT FOG LAMP-WITH(BULB TYPE)

main81210-02110iZYX10..N;NGX10..6F..N..EUR¥8,900201610-201909

LIGHT GRADE

main81210-02190iNGX10..(E,G)..EUR;MAXH10,NGX50,ZGX10,ZYX1#..E,G201909-202212

HEADLAMP-PROJECTOR & *AHB & *AFLS

sub81211-02190

sub8121C-02190

main81210-02190iMAXH10,NGX10,50,ZYX11..K..EUR201909-202212

HEADLAMP-PROJECTOR & *AHB

sub81211-02190

sub8121C-02190

main81210-02190iNGX10..LHD..6F..K..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD..K201909-202212

HEADLAMP-PROJECTOR

sub81211-02190

sub8121C-02190

81210BBULB, FOG LAMP

main90981-WD016iNGX10..N..RUS¥2,800201909-202112

12V 19W,FRONT FOG LAMP-WITH(BULB TYPE)

main90981-WD016iNGX10,50,ZGX10,ZYX10..E,G,N¥2,800201610-202112

12V 19W

main90981-WD016iNGX10,50,ZGX10,ZYX10..E,G,N¥2,800201610-201909

12V 19W,LIGHT GRADE

81219ABRACKET, FOG LAMP, RH

81220LAMP ASSY, FOG, LH

main81220-02110iNGX10..K..RUS¥8,900201909-202112

FRONT FOG LAMP-WITH(BULB TYPE)

main81220-02110iNGX10,50,ZGX10,ZYX10..E,G,N¥8,900201610-201909

LIGHT GRADE

main81220-02190iNGX10..LHD..6F..K..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD..K201909-202212

HEADLAMP-PROJECTOR

sub81221-02190

sub8121C-02190

main81220-02190iNGX10..LHD..6F..K..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD..K201909-202212

HEADLAMP-PROJECTOR & *AHB

sub81221-02190

sub8121C-02190

main81220-02190iNGX10..LHD..6F..K..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD..K201909-202212

HEADLAMP-PROJECTOR & *AHB & *AFLS

sub81221-02190

sub8121C-02190

81229ABRACKET, FOG LAMP, LH

9016750063

main90167-50063¥60

7 parts on this diagram · 2 diagrams in section
