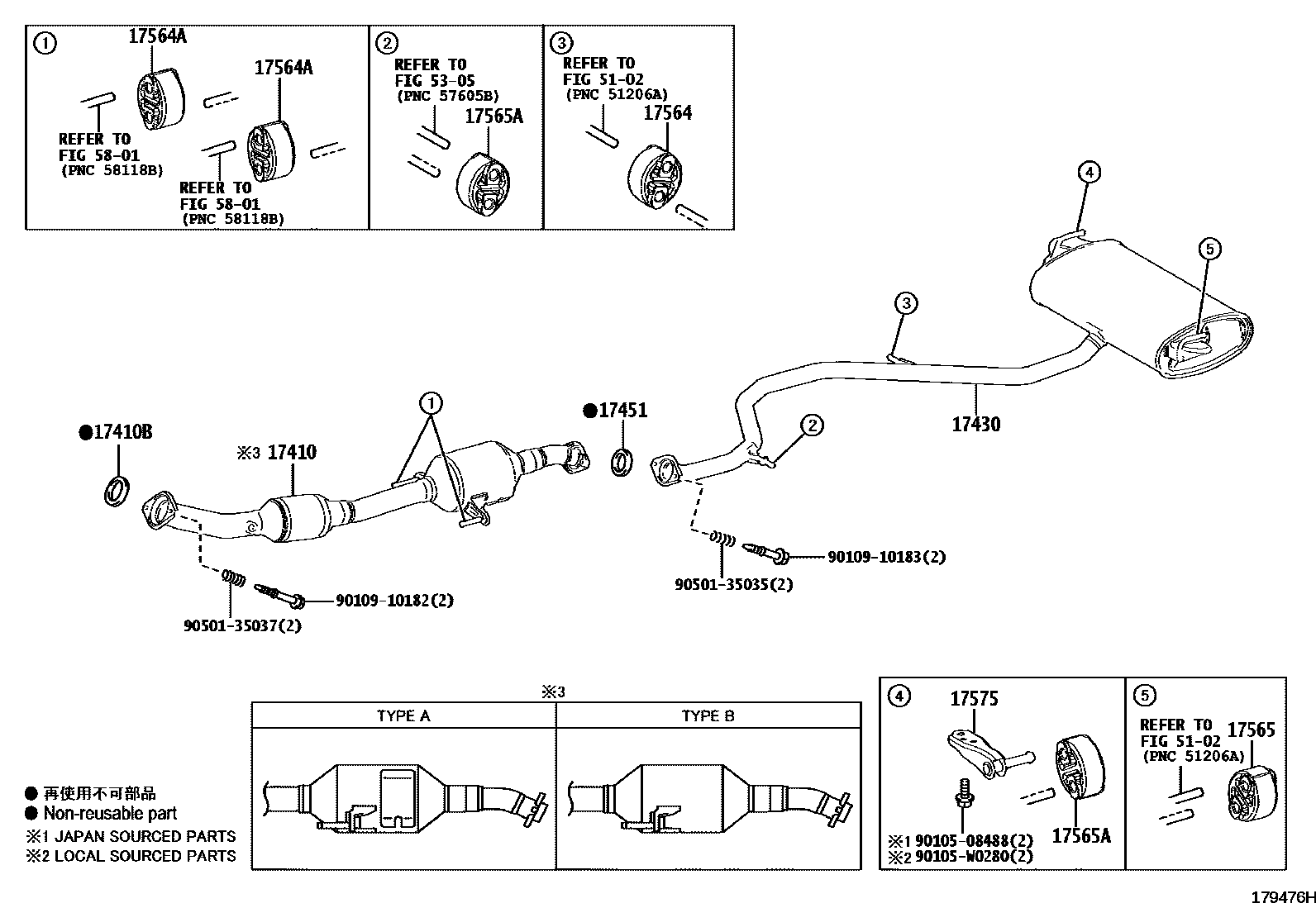

Toyota C-HR — EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0TA90i2ZRFXE..ZYX10201610-201909

*114=TOYOTA/TL8/Y

main17410-0TA90i2ZRFXE..ZYX1#201909-202008

*114=TOYOTA/TL8/Y,TYPE A:REFER ILLUST.

main17410-0TA91i2ZRFXE..ZYX11202008-202010

*114=TOYOTA/TL8/Y,TYPE B:REFER ILLUST.

main17410-0TA91i2ZRFXE..ZYX10202008-202303

*114=TOYOTA/TL8/Y,TYPE B:REFER ILLUST.

main17410-0TA92i2ZRFXE..ZYX11..LHD202303

*114=TOYOTA/TL8/Y

main17410-0TA92i2ZRFXE..ZYX10202303

*114=TOYOTA/TL8/Y,UKRAINE SPEC

main17410-0TA92i2ZRFXE..ZYX10202303

*114=TOYOTA/TL8/Y,GEORGIA SPEC

main17410-0TB20i3ZRFAE..ZGX10201610-201909

main17410-0TB20i3ZRFAE..ZGX10201909

main17410-0TJ10i2ZRFXE..ZYX11202010

*114=*713,FRENCH GUIANA SPEC

main17410-0TJ10i2ZRFXE..ZYX11202010

*114=*713,GUADELOUPE SPEC

main17410-0TJ10i2ZRFXE..ZYX11202010

*114=*713,MARTINIQUE SPEC

main17410-0TJ10i2ZRFXE..ZYX11202010

*114=*713,GREENLAND SPEC

main17410-0TJ10i2ZRFXE..ZYX10..LHD202010

*114=*713

main17410-0Y370i8NRFTS..NGX10..RUS201909-202201

*114=TOYOTA/RN7/Y

main17410-0Y370i8NRFTS..NGX10..RUS201610-201909

*114=TOYOTA/RN7/Y

main17410-0Y370i8NRFTS..NGX10..EUR201610-201805

*114=TOYOTA/RN7/Y

main17410-0Y390i8NRFTS..NGX50201610-201909

main17410-0Y390i8NRFTS..NGX50201909

main17410-0YA70i8NRFTS..NGX10..EUR201909

*114=*567

main17410-0YA70i8NRFTS..NGX10..EUR201805-201909

*114=*567

main17410-F2140iM20AFXS..MAXH10201909

*114=*713

17410BGASKET, EXHAUST PIPE

main17451-0R010i2ZRFXE..ZYX1#¥1,360201909-202010

main17451-0R010i8NRFTS,2ZRFXE,3ZRFAE..NGX10,ZGX10,ZYX10¥1,360201610-201909

main17451-0R010i8NRFTS..NGX10..RUS¥1,360201909-202201

main17451-0R010i3ZRFAE..ZGX10;M20AFXS,8NRFTS..MAXH10,NGX10..EUR¥1,360201909

main17451-0T090i2ZRFXE..ZYX1#202010

main90917-06089i8NRFTS..NGX50¥500201610-201909

main90917-06089i8NRFTS..NGX50¥500201909

17430PIPE ASSY, EXHAUST, TAIL

main17430-0T470i2ZRFXE..ZYX10201610-201611

sub17430-0T471

main17430-0T471i2ZRFXE..ZYX11201909-202010

main17430-0T471i2ZRFXE..ZYX10201909

main17430-0T471i2ZRFXE..ZYX10201611-201909

main17430-0T750i2ZRFXE..ZYX10..LHD202010

MARTINIQUE SPEC

main17430-0T750i2ZRFXE..ZYX11202010

FRENCH GUIANA SPEC

main17430-0T750i2ZRFXE..ZYX11202010

GUADELOUPE SPEC

main17430-0T750i2ZRFXE..ZYX11202010

GREENLAND SPEC

main17430-0Y150i8NRFTS,3ZRFAE..NGX10,ZGX10201610-201611

sub17430-0Y151

main17430-0Y151i8NRFTS..NGX10..RUS;8NRFTS,3ZRFAE..NGX10,ZGX10..CVT201611-201909

main17430-0Y151i8NRFTS..NGX10..6F..EUR202002

main17430-0Y151i8NRFTS..NGX10..6F..EUR201611-201805

main17430-0Y151i8NRFTS..NGX10..RUS201909-202201

main17430-0Y151i8NRFTS,3ZRFAE..NGX10,ZGX10..CVT201909

main17430-0Y170i8NRFTS..NGX50201610-201611

sub17430-0Y171

main17430-0Y171i8NRFTS..NGX50201909

main17430-0Y171i8NRFTS..NGX50201611-201909

main17430-0Y220i8NRFTS..NGX10..6F..EUR201909-202002

main17430-0Y220i8NRFTS..NGX10..6F..EUR201805-201909

main17430-F2100iM20AFXS..MAXH10201909

17451GASKET, EXHAUST PIPE

main17451-0J022i3ZRFAE..ZGX10;M20AFXS,8NRFTS..MAXH10,NGX10..EUR¥720201909

main17451-0J022i8NRFTS,2ZRFXE,3ZRFAE..NGX10,ZGX10,ZYX10¥720201610-201909

main17451-0J022i2ZRFXE..ZYX1#¥720201909-202010

main17451-0J022i8NRFTS..NGX10..RUS¥720201909-202201

main17451-0T100i2ZRFXE..ZYX1#202010

main90917-06089i8NRFTS..NGX50¥500201909

main90917-06089i8NRFTS..NGX50¥500201610-201909

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-0T040i8NRFTS,2ZRFXE,3ZRFAE..NGX10,ZGX10,ZYX10201610-201909

main17565-0T040i8NRFTS..NGX10..RUS201909-202201

main17565-0T040i8NRFTS..NGX50201909

17564ASUPPORT, CATALYTIC CONVERTER, RH

main17565-0J031i8NRFTS,2ZRFXE,3ZRFAE..NGX10,ZGX10,ZYX10¥680201610-201909

main17565-0J031i8NRFTS..NGX10..RUS¥680201909-202201

main17565-0J031i3ZRFAE..ZGX10;8NRFTS,2ZRFXE..NGX10,ZYX1#..EUR¥680201909

main17565-0T040iM20AFXS..MAXH10201909

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0J031i8NRFTS..NGX10..RUS¥680201909-202201

main17565-0J031i8NRFTS,2ZRFXE,3ZRFAE..NGX10,50,ZGX10,ZYX10¥680201612-201909

main17565-0J031i8NRFTS,3ZRFAE..NGX50,ZGX10;M20AFXS,8NRFTS,2ZRFXE..MAXH10,NGX10,ZYX1#..EUR¥680201909

main17566-0T020i8NRFTS,2ZRFXE,3ZRFAE..NGX10,50,ZGX10,ZYX10201610-201612

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0J031i8NRFTS,2ZRFXE,3ZRFAE..NGX10,ZGX10,ZYX10¥680201610-201909

main17565-0J031i8NRFTS..NGX10..RUS¥680201909-202201

main17565-0J031i3ZRFAE..ZGX10;M20AFXS,8NRFTS,2ZRFXE..MAXH10,NGX10,ZYX1#..EUR¥680201909

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-0Y030i8NRFTS,3ZRFAE..NGX50,ZGX10;M20AFXS,8NRFTS,2ZRFXE..MAXH10,NGX10,ZYX1#..EUR201909

main17575-0Y030i8NRFTS,2ZRFXE,3ZRFAE..NGX10,50,ZGX10,ZYX10201610-201909

main17575-0Y030i8NRFTS..NGX10..RUS201909-202201

5102

5305

5801

9010508488

main90105-08488¥80

90105W0280

main90105-W0280

9010910182

main90109-10182¥190

9010910183

main90109-10183¥190

9050135035

main90501-35035¥200

9050135037

main90501-35037¥200

18 parts on this diagram · 3 diagrams in section
