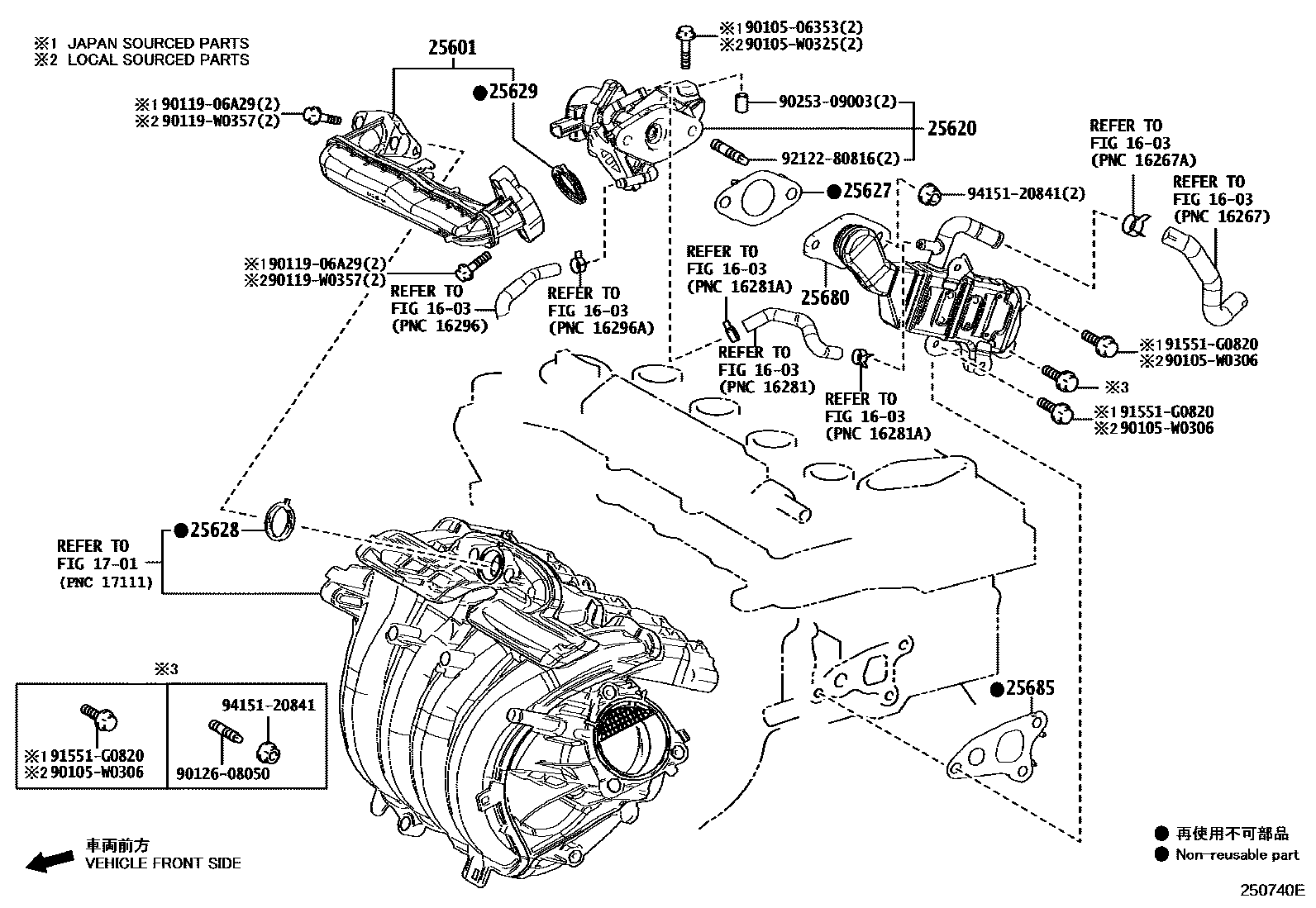

Toyota C-HR — EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1603

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-24030iM20AFXS..MAXH10¥3,140201909-202304

*132

main25601-F2020iM20AFXS..MAXH10201909

*613

25620VALVE ASSY, EGR

main25620-24050iM20AFXS..MAXH10¥18,400201909-202304

*132

main25620-37140i2ZRFXE..ZYX10..LHD¥18,400201909

GUADELOUPE SPEC

main25620-37140i2ZRFXE..ZYX10¥18,400201610-201909

main25620-37140i2ZRFXE..ZYX11¥18,400201909

FRENCH GUIANA SPEC

main25620-37140i2ZRFXE..ZYX11¥18,400201909

MARTINIQUE SPEC

main25620-37140i2ZRFXE..ZYX11¥18,400201909

GREENLAND SPEC

main25620-37150i2ZRFXE..ZYX10201909

main25620-F2020iM20AFXS..MAXH10201909

*613

25627GASKET, EGR VALVE

main25627-24010iM20AFXS..MAXH10¥270201909-202304

*132

main25627-37020i2ZRFXE..ZYX1#¥270201610-201909

main25627-F2040iM20AFXS..MAXH10201909

*613

25628GASKET, EGR INLET

main25628-25010iM20AFXS..MAXH10¥340201909-202304

(J)

main25628-F2040iM20AFXS..MAXH10201909

(L)

25629GASKET, EGR VALVE ADAPTER

main25629-25010iM20AFXS..MAXH10¥340201909

*613

main25629-25010iM20AFXS..MAXH10¥340201909-202304

*132

25680COOLER ASSY, EGR

main25680-24030iM20AFXS..MAXH10¥15,400201909-202304

*132

main25680-24030iM20AFXS..MAXH10¥15,400201909

*613

25685GASKET, EGR COOLER, NO.1

main25685-25011iM20AFXS..MAXH10¥270201909

*613

main25685-25011iM20AFXS..MAXH10¥270201909-202304

*132

main25685-37020i2ZRFXE..ZYX1#¥210201610-201909

9010506353

main90105-06353¥60

90105W0306

main90105-W0306

90105W0325

main90105-W0325

9011906A29

main90119-06A29¥60

90119W0357

main90119-W0357

9012608050

main90126-08050¥80

9025309003

main90253-09003¥50

91551G0820

main91551-G0820¥80

9212280816

main92122-80816¥70

9415120841

main94151-20841¥80

19 parts on this diagram · 2 diagrams in section
