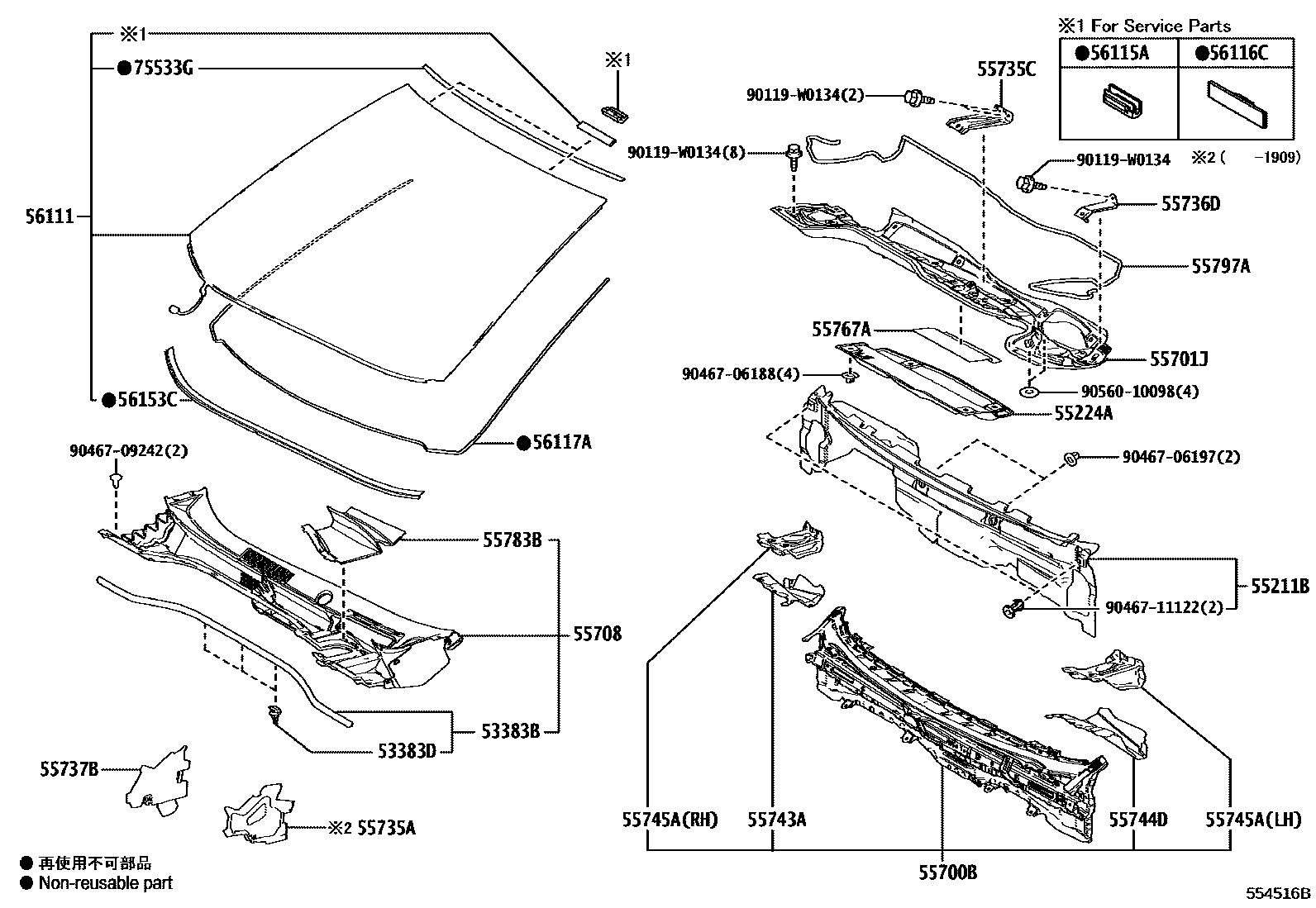

Toyota C-HR — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55211BSILENCER, FRONT PANEL
LIGHT GRADE
LIGHT GRADE
55224AINSULATOR, DASH PANEL, OUTER NO.2
55700BCOWL ASSY
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
MEXICO SPEC
SUB COLD AREA SPEC
COLD AREA SPEC
COLD AREA SPEC
SUB COLD AREA SPEC
55735APLATE, WATER GUARD, LH
55735CREINFORCEMENT, COWL BODY MOUNTING, RH
55736DREINFORCEMENT, COWL BODY MOUNTING, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55743AEXTENSION, COWL TO COWL SIDE, RH
55744DEXTENSION, COWL TO COWL SIDE, LH
55745AREINFORCEMENT, COWL TOP, INNER
RH
RH
RH
LH
LH
LH
55767ASHEET, COWL TOP INSULATOR, NO.5
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55797ASEAL, COWL WATER EXTRACT
56111GLASS, WINDSHIELD
FRENCH GUIANA SPEC
MARTINIQUE SPEC
GUADELOUPE SPEC
REUNION SPEC
EUROPE SPEC(EXCEPT EU)
WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
GUADELOUPE SPEC&COLD AREA SPEC
GUADELOUPE SPEC&COLD AREA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
MARTINIQUE SPEC&COLD AREA SPEC
MARTINIQUE SPEC&COLD AREA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
GREENLAND SPEC&COLD AREA SPEC
GREENLAND SPEC&COLD AREA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACKDOOR))
SVALBARD SPEC&COLD AREA SPEC
SVALBARD SPEC&COLD AREA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACKDOOR))
EUROPE SPEC(EXCEPT EU)&COLD AREA SPEC
EUROPE SPEC(EXCEPT EU)&COLD AREA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
REUNION SPEC&COLD AREA SPEC
REUNION SPEC&COLD AREA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
FRENCH GUIANA SPEC&COLD AREA SPEC
FRENCH GUIANA SPEC&COLD AREA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR &BACK DOOR))
WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
GUADELOUPE SPEC&COLD AREA SPEC&AUDIO-RADIO LESS & 6SPEAKER
GUADELOUPE SPEC&COLD AREA SPEC&AUDIO-CD & 6SPEAKER & USB & *BT,LATIN AMERICA
MARTINIQUE SPEC&COLD AREA SPEC&AUDIO-RADIO LESS & 6SPEAKER
MARTINIQUE SPEC&COLD AREA SPEC&AUDIO-CD & 6SPEAKER & USB & *BT,LATIN AMERICA
EUROPE SPEC(EXCEPT EU)&COLD AREA SPEC
REUNION SPEC&COLD AREA SPEC&AUDIO-RADIO LESS & 6SPEAKER
REUNION SPEC&COLD AREA SPEC&AUDIO-CD & 6SPEAKER & USB & *BT,FOR GENERAL
FRENCH GUIANA SPEC&COLD AREA SPEC&AUDIO-RADIO LESS & 6SPEAKER
FRENCH GUIANA SPEC&COLD AREA SPEC&AUDIO-CD & 6SPEAKER & USB & *BT,LATIN AMERICA
ACTIVE SAFETY PACKAGE- TOYOTA SAFETY SENSE
WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
ACTIVE SAFETY PACKAGE- TOYOTA SAFETY SENSE
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=2979,REUNION SPEC&AUDIO-RADIO LESS & 6SPEAKER
*D,L=2979,REUNION SPEC&AUDIO-CD & 6SPEAKER & USB & *BT,FOR GENERAL
*D,L=2979,FRENCH GUIANA SPEC
*D,L=2979,FRENCH GUIANA SPEC&COLD AREA SPEC&AUDIO-RADIO LESS & 6SPEAKER
*D,L=2979,FRENCH GUIANA SPEC&COLD AREA SPEC&AUDIO-CD & 6SPEAKER & USB & *BT,LATINAMERICA
*D,L=2979,FRENCH GUIANA SPEC&AUDIO-RADIO LESS & 6SPEAKER
*D,L=2979,FRENCH GUIANA SPEC&AUDIO-CD & 6SPEAKER & USB & *BT,LATIN AMERICA
*D,L=2979,GUADELOUPE SPEC
*D,L=2979,GUADELOUPE SPEC&COLD AREA SPEC&AUDIO-RADIO LESS & 6SPEAKER
*D,L=2979,GUADELOUPE SPEC&COLD AREA SPEC&AUDIO-CD & 6SPEAKER & USB & *BT,LATIN AMERICA
*D,L=2979,GUADELOUPE SPEC&AUDIO-RADIO LESS & 6SPEAKER
*D,L=2979,GUADELOUPE SPEC&AUDIO-CD & 6SPEAKER & USB & *BT,LATIN AMERICA
*D,L=2979,MARTINIQUE SPEC
*D,L=2979,MARTINIQUE SPEC&COLD AREA SPEC&AUDIO-RADIO LESS & 6SPEAKER
*D,L=2979,MARTINIQUE SPEC&COLD AREA SPEC&AUDIO-CD & 6SPEAKER & USB & *BT,LATIN AMERICA
*D,L=2979,MARTINIQUE SPEC&AUDIO-RADIO LESS & 6SPEAKER
*D,L=2979,MARTINIQUE SPEC&AUDIO-CD & 6SPEAKER & USB & *BT,LATIN AMERICA
*D,L=2979,COLD AREA SPEC
*D,L=2979,COLD AREA SPEC&AUDIO-*DA & 6SPEAKER & DAB & USB
*D,L=2979,COLD AREA SPEC&AUDIO-*DA & 9SPEAKER & DAB & USB
*D,L=2979,AUDIO-*DA & 6SPEAKER & DAB & USB
*D,L=2979,AUDIO-*DA & 9SPEAKER & DAB & USB
*D,L=2979
*D,L=2979,EUROPE SPEC(EXCEPT EU)
*D,L=2979,EUROPE SPEC(EXCEPT EU)&COLD AREA SPEC
*D,L=2979,EUROPE SPEC(EXCEPT EU)&COLD AREA SPEC&AUDIO-*DA & 6SPEAKER & DAB & USB
*D,L=2979,EUROPE SPEC(EXCEPT EU)&COLD AREA SPEC&AUDIO-*DA & 9SPEAKER & DAB & USB
*D,L=2979,EUROPE SPEC(EXCEPT EU)&AUDIO-*DA & 6SPEAKER & DAB & USB
*D,L=2979,EUROPE SPEC(EXCEPT EU)&AUDIO-*DA & 9SPEAKER & DAB & USB
*D,L=2979,REUNION SPEC
*D,L=2979,REUNION SPEC&COLD AREA SPEC&AUDIO-RADIO LESS & 6SPEAKER
*D,L=2979,REUNION SPEC&COLD AREA SPEC&AUDIO-CD & 6SPEAKER & USB & *BT,FOR GENERAL
*D,L=2979
*D,L=2979,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
*D,L=2979
*D,L=2979,EUROPE SPEC(EXCEPT EU)
*D,L=2979,EUROPE SPEC(EXCEPT EU)&COLD AREA SPEC
*D,L=2979,EUROPE SPEC(EXCEPT EU)&COLD AREA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
*D,L=2979,EUROPE SPEC(EXCEPT EU)&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
*D,L=2979,REUNION SPEC
*D,L=2979,REUNION SPEC&COLD AREA SPEC
*D,L=2979,REUNION SPEC&COLD AREA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
*D,L=2979,REUNION SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
*D,L=2979,FRENCH GUIANA SPEC
*D,L=2979,FRENCH GUIANA SPEC&COLD AREA SPEC
*D,L=2979,FRENCH GUIANA SPEC&COLD AREA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
*D,L=2979,FRENCH GUIANA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACKDOOR))
*D,L=2979,GUADELOUPE SPEC
*D,L=2979,GUADELOUPE SPEC&COLD AREA SPEC
*D,L=2979,GUADELOUPE SPEC&COLD AREA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRPDOOR & BACK DOOR))
*D,L=2979,GUADELOUPE SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
*D,L=2979,MARTINIQUE SPEC
*D,L=2979,MARTINIQUE SPEC&COLD AREA SPEC
*D,L=2979,MARTINIQUE SPEC&COLD AREA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRPDOOR & BACK DOOR))
*D,L=2979,MARTINIQUE SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
*D,L=2979,GREENLAND SPEC
*D,L=2979,GREENLAND SPEC&COLD AREA SPEC
*D,L=2979,GREENLAND SPEC&COLD AREA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
*D,L=2979,GREENLAND SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
*D,L=2979,SVALBARD SPEC
*D,L=2979,SVALBARD SPEC&COLD AREA SPEC
*D,L=2979,SVALBARD SPEC&COLD AREA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
*D,L=2979,SVALBARD SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
*D,L=2979,COLD AREA SPEC
*D,L=2979,COLD AREA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
*D,L=2979,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
56153CMOULDING, FRONT WINDOW, INNER CENTER
75533GMOULDING, WINDSHIELD, OUTSIDE
90119W0134
9046706188
9046706197
9046709242
9046711122
9056010098
29 parts on this diagram · 2 diagrams in section
