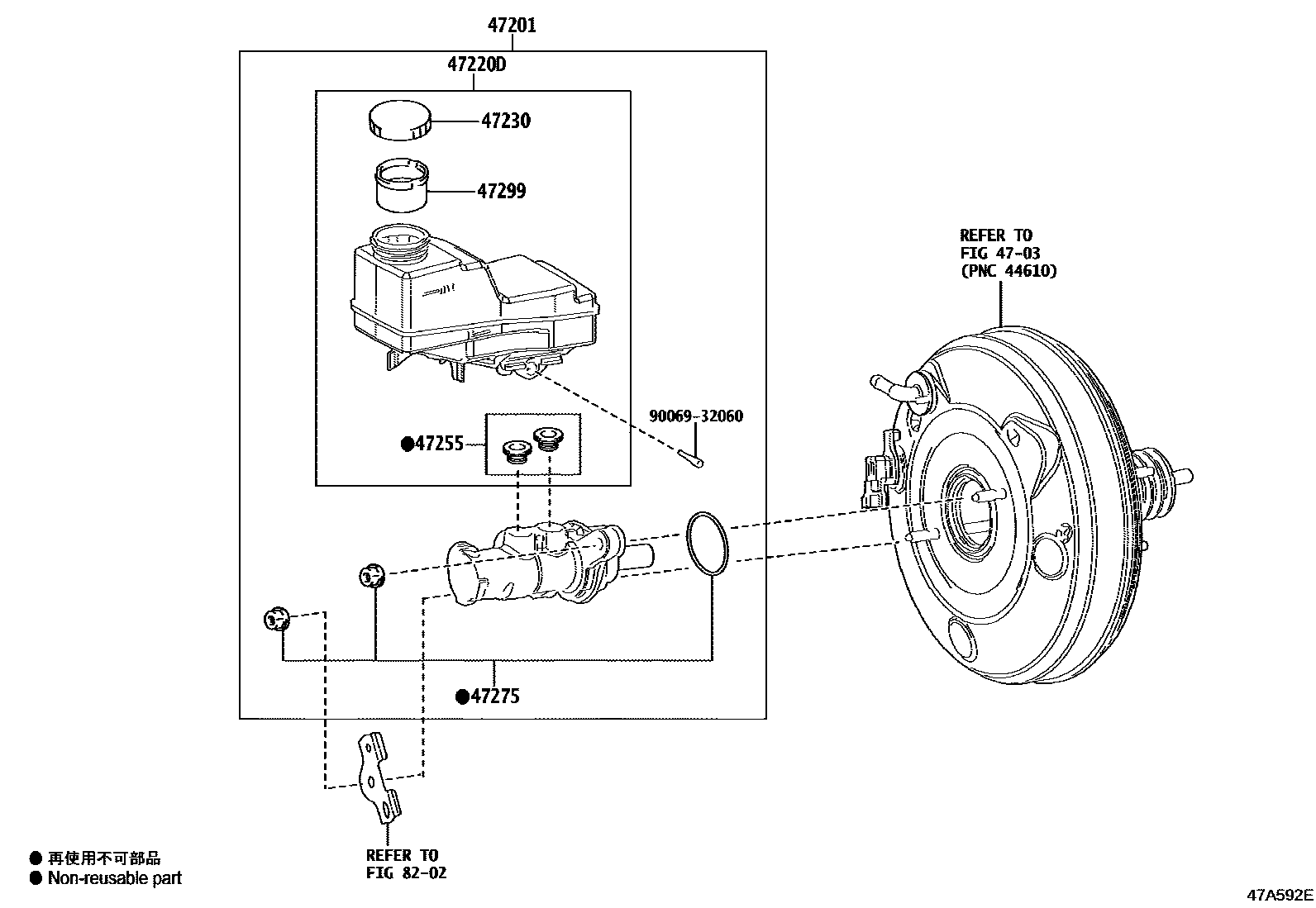

Toyota C-HR — BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-F9010iNGX10..RHD201610-202009

main47201-F9020iNGX50,ZGX10;NGX10..LHD..EUR201610-202112

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-F9010iNGX10..RHD201610-202009

main47220-F9020iNGX10,50,ZGX10..LHD201610-202112

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iZYX10¥770201610-202010

main47230-F4010iNGX10..RUS201610-202112

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iNGX10,50,ZGX10¥720201610-202112

47275GASKET, BRAKE MASTER CYLINDER

main47275-09010iNGX10,50,ZGX10¥200201610-202112

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iNGX10,50,ZGX10¥600201610-202112

8202

9006932060

main90069-32060

9 parts on this diagram · 4 diagrams in section
