Toyota C-HR — BACK DOOR LOCK & HANDLE

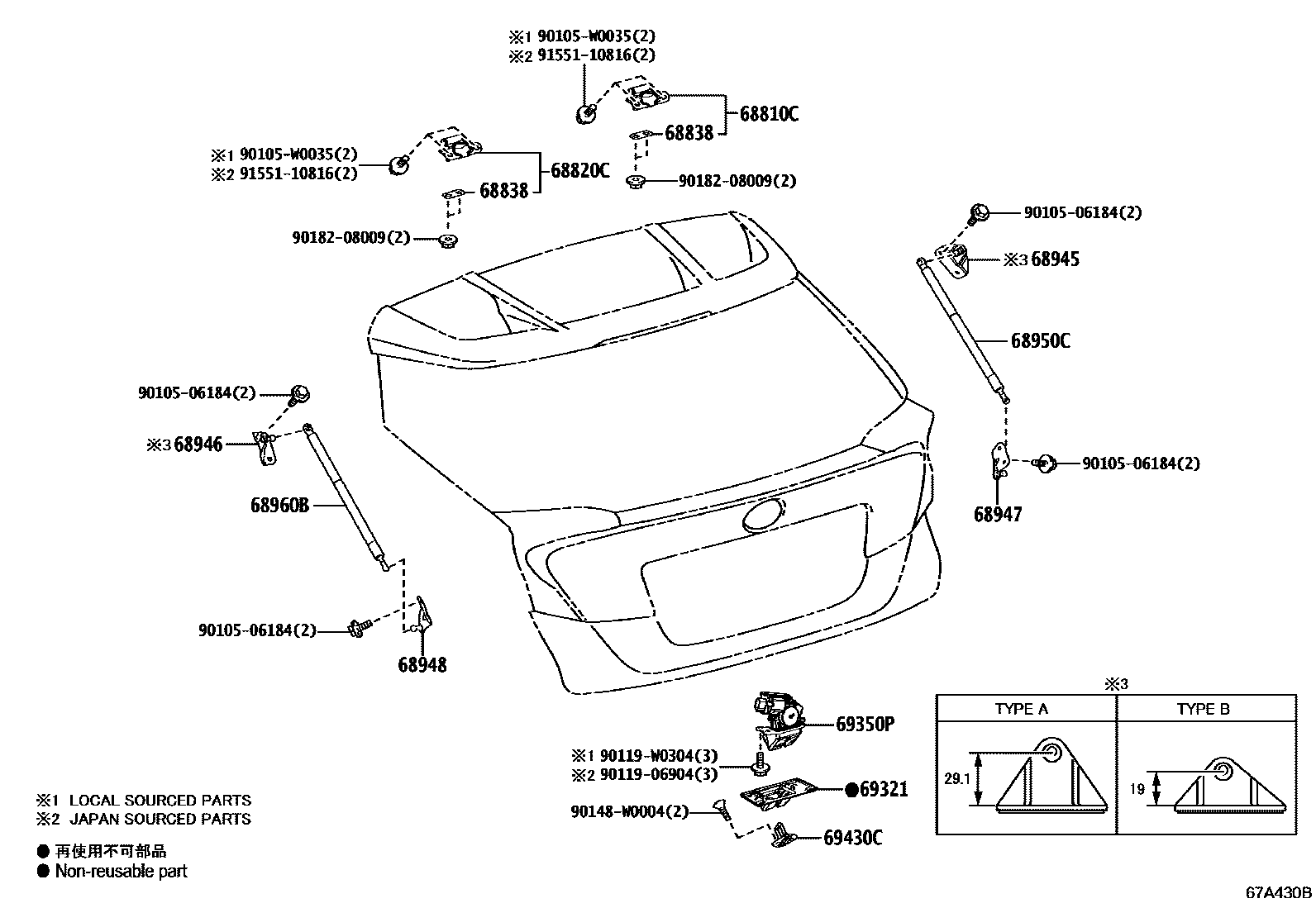

Parts diagram
68810CHINGE ASSY, BACK DOOR, RH
main68810-F4010i201610-202112
68820CHINGE ASSY, BACK DOOR, LH
main68810-F4010i201610-202112
68838PAD, BACK DOOR HINGE, NO.1
main68838-F4010i201610-202112
T=1.0
main68838-F4020i201610-202112
T=1.5
main68838-F4030i201610-202112
T=2.0
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
main68945-F4010i201610-201904
TYPE A:REFER ILLUST.
main68945-F4050i201902-201909
TYPE B:REFER ILLUST.
main68945-F4050i201909-202112
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
main68945-F4010i201610-201904
TYPE A:REFER ILLUST.
main68946-F4050i201909-202112
main68946-F4050i201902-201909
TYPE B:REFER ILLUST.
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
main68947-F4010i201610-201801
main68947-F4011i201801-202112
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
main68948-F4010i201610-201801
main68948-F4011i201801-202112
68950CSTAY ASSY, BACK DOOR, RH
main68950-F4010i201610-201804
NORDIC SPEC&COLD AREA SPEC,PRINT COLOR = BLUE
main68950-F4010i201610-201804
PRINT COLOR = BLUE
main68950-F4010i201610-201804
NORDIC SPEC,PRINT COLOR = BLUE
main68950-F4010i201610-201804
COLD AREA SPEC,PRINT COLOR = BLUE
main68950-F4011i201804-201904
COLD AREA SPEC,PRINT COLOR = RED
main68950-F4011i201804-201904
PRINT COLOR = RED
main68950-F4011i201804-201904
NORDIC SPEC,PRINT COLOR = RED
main68950-F4011i201804-201904
NORDIC SPEC&COLD AREA SPEC,PRINT COLOR = RED
main68950-F4050i201610-201804
PRINT COLOR = BLUE
sub68950-F4060
main68950-F4050i201610-201804
MEXICO SPEC,PRINT COLOR = BLUE
sub68950-F4060
main68950-F4051i201804-201904
MEXICO SPEC,PRINT COLOR = RED
sub68950-F4061
main68950-F4051i201804-201904
PRINT COLOR = RED
sub68950-F4061
main68950-F4052i201904-201909
REAR COMBINATION LAMP-BULB TYPE(BACK UP LAMP & TURN LAMP)
main68950-F4052i201909-202112
main68950-F4061i201805-201904
PRINT COLOR = RED
main68950-F4061i201805-201904
MEXICO SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP),PRINT COLOR =RED
main68950-F4062i201909
EUROPE SPEC(EXCEPT EU)&HEADLAMP-PROJECTOR
main68950-F4062i201909
REUNION SPEC&HEADLAMP-PROJECTOR
main68950-F4062i201909
FRENCH GUIANA SPEC&HEADLAMP-PROJECTOR
main68950-F4062i201909
GUADELOUPE SPEC&HEADLAMP-PROJECTOR
main68950-F4062i201909
MARTINIQUE SPEC&HEADLAMP-PROJECTOR
main68950-F4062i201909
GREENLAND SPEC&HEADLAMP-PROJECTOR
main68950-F4062i201909
SVALBARD SPEC&HEADLAMP-PROJECTOR
main68950-F4062i201909-202112
HEADLAMP-PROJECTOR
main68950-F4062i201909
HEADLAMP-PROJECTOR & *AHB
main68950-F4062i201909
HEADLAMP-PROJECTOR & *AHB & *AFLS
main68950-F4062i201904-201909
REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)
68960BSTAY ASSY, BACK DOOR, LH
main68960-F4010i201610-201804
COLD AREA SPEC,PRINT COLOR = BLUE
sub68960-F4060
main68960-F4010i201610-201804
NORDIC SPEC&COLD AREA SPEC,PRINT COLOR = BLUE
sub68960-F4060
main68960-F4010i201610-201804
NORDIC SPEC,PRINT COLOR = BLUE
sub68960-F4060
main68960-F4010i201610-201804
PRINT COLOR = BLUE
sub68960-F4060
main68960-F4011i201804-201904
NORDIC SPEC&COLD AREA SPEC,PRINT COLOR = RED
sub68960-F4061
main68960-F4011i201804-201904
PRINT COLOR = RED
sub68960-F4061
main68960-F4011i201804-201904
NORDIC SPEC,PRINT COLOR = RED
sub68960-F4061
main68960-F4011i201804-201904
COLD AREA SPEC,PRINT COLOR = RED
sub68960-F4061
main68960-F4050i201610-201804
PRINT COLOR = BLUE
sub68960-F4060
main68960-F4050i201610-201804
MEXICO SPEC,PRINT COLOR = BLUE
sub68960-F4060
main68960-F4051i201804-201904
MEXICO SPEC,PRINT COLOR = RED
sub68960-F4061
main68960-F4051i201804-201904
PRINT COLOR = RED
sub68960-F4061
main68960-F4052i201904-201909
REAR COMBINATION LAMP-BULB TYPE(BACK UP LAMP & TURN LAMP)
main68960-F4052i201909-202112
main68960-F4061i201805-201904
PRINT COLOR = RED
main68960-F4061i201805-201904
MEXICO SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP),PRINT COLOR =RED
main68960-F4062i201909
MARTINIQUE SPEC&HEADLAMP-PROJECTOR
main68960-F4062i201909
GREENLAND SPEC&HEADLAMP-PROJECTOR
main68960-F4062i201909
SVALBARD SPEC&HEADLAMP-PROJECTOR
main68960-F4062i201909-202112
HEADLAMP-PROJECTOR
main68960-F4062i201909
HEADLAMP-PROJECTOR & *AHB
main68960-F4062i201909
HEADLAMP-PROJECTOR & *AHB & *AFLS
main68960-F4062i201909
EUROPE SPEC(EXCEPT EU)&HEADLAMP-PROJECTOR
main68960-F4062i201909
REUNION SPEC&HEADLAMP-PROJECTOR
main68960-F4062i201909
FRENCH GUIANA SPEC&HEADLAMP-PROJECTOR
main68960-F4062i201909
GUADELOUPE SPEC&HEADLAMP-PROJECTOR
main68960-F4062i201904-201909
REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)
69321COVER, BACK DOOR LOCK
main69321-F4010i201610-202112
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
main69350-F4010i201610-202112
69430CSTRIKER ASSY, BACK DOOR LOCK
main69430-F4010i201610-202112
9010506184
main90105-06184¥70
90105W0035
main90105-W0035¥130
9011906904
main90119-06904¥80
90119W0304
main90119-W0304
90148W0004
main90148-W0004¥60
9018208009
main90182-08009¥100
9155110816
main91551-10816¥80

19 parts on this diagram · 1 diagram in section
