Toyota C-HR — WIRING & CLAMP

0001 1�������� 0002 1�������� 0003 1����� 0004 1����� 0005 1������������ 0006 1������������ 0007 1��� 0008 1��� & ��� 0009 1��� & ��� 0010 1��������� 0011 1��� 0012 1����� & ������ 0013 1����� & ������ 0014 1���� 1/3 0015 1���� 2/3 0016 1���� 3/3

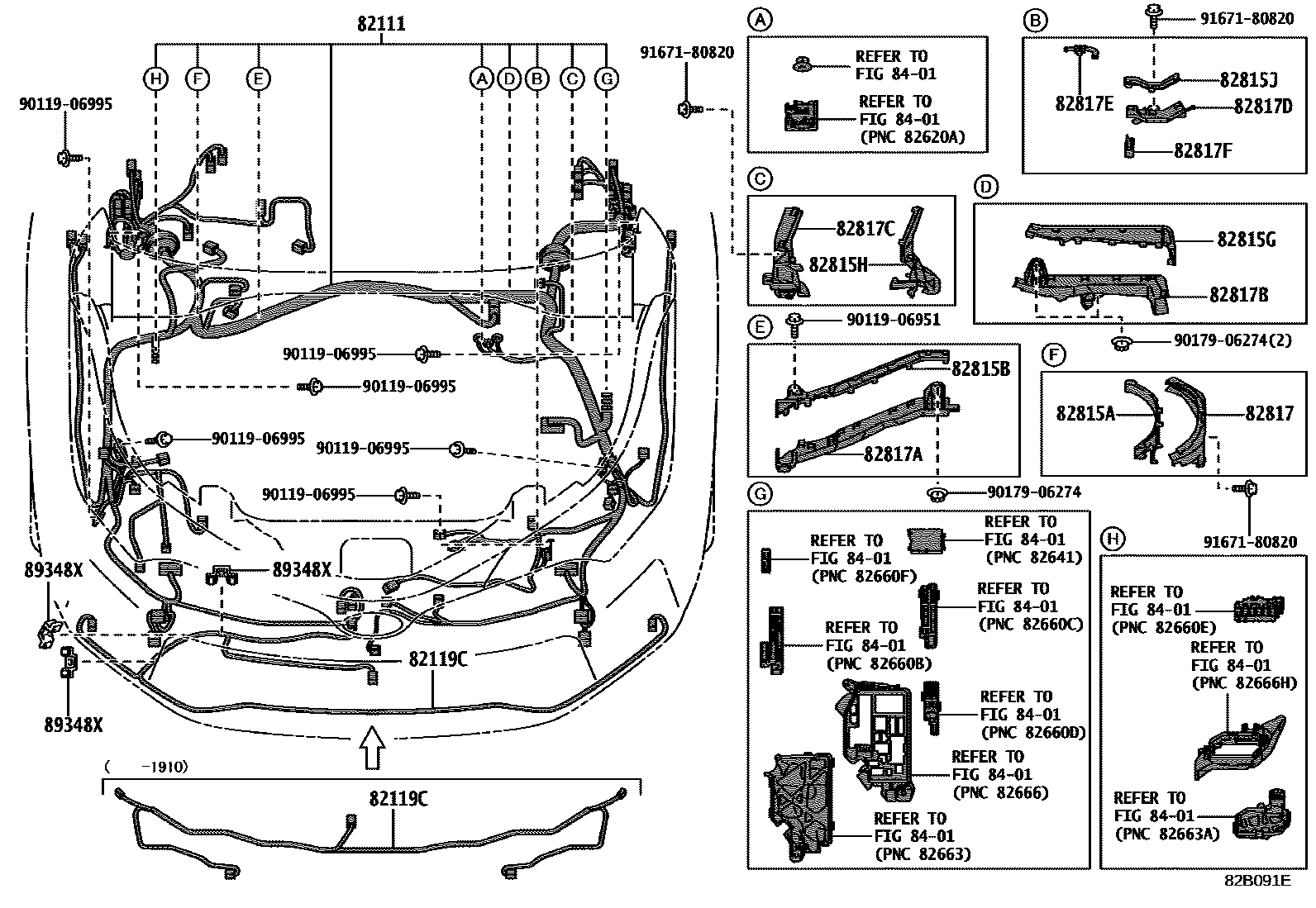

82111WIRE, ENGINE ROOM MAIN

main82111-10A50iZYX10..G¥184,000201612-201805

main82111-10A71iZYX10..G¥184,000201805-201910

main82111-10B00iNGX50..ST¥140,000201612-201805

main82111-10C51iNGX10,50..GT¥140,000201805-201910

main82111-10C60iNGX50..ST¥140,000201612-201805

�v���N���b�V���Z�[�t�e�B�V�X�e���|�L�����w�b�h�����v�|�n���Q�������`�g�a

main82111-10C61iNGX10,50..ST¥140,000201805-201910

main82111-10C70iZYX10..S¥169,000201612-201805

main82111-10C81iZYX10..S¥169,000201805-201910

main82111-10E30iNGX10..6F..GT¥155,000201910-202008

�f�q�@�r�o�n�q�s

main82111-10E31iNGX10..6F..GT¥129,000202008

�f�q�@�r�o�n�q�s

main82111-10E40iNGX10..6F..ST¥140,000201910-202008

main82111-10E41iNGX10..6F..ST¥116,000202008

main82111-10E70iNGX10,50..CVT..GT¥140,000201910-202008

main82111-10E71iNGX10,50..CVT..ST¥116,000202008

�f�q�@�r�o�n�q�s

main82111-10E80iNGX10,50..CVT..ST¥140,000201910-202008

main82111-10E81iNGX10,50..CVT..ST¥116,000202008

main82111-10F10iZYX11..G¥198,000201910-202008

�f�q�@�r�o�n�q�s

main82111-10F11iZYX11..S¥153,000202008

�f�q�@�r�o�n�q�s

main82111-10F20iZYX11..S¥184,000201910-202008

main82111-10F21iZYX11..S¥153,000202008

82119CWIRE, ENGINE ROOM, NO.5

main82119-10010iNGX10,50,ZYX10..G,GT¥4,250201612-201910

main82119-10020iNGX10,50,ZYX11¥3,540201910

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-12J00iNGX10,50¥520202008

main82815-47880iZYX10¥400201612-201910

main82815-47880iZYX11¥400201910

main82815-F4240iNGX10,50¥870201612-201910

main82815-F4240iNGX10,50¥870201910-202008

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-12L90iNGX10,50¥1,970202008

main82815-47C20iZYX10¥500201612-201910

main82815-47C20iZYX11¥500201910

main82815-F4250iNGX10,50¥2,380201910-202008

main82815-F4250iNGX10,50¥2,380201612-201910

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-12L80iNGX10,50¥1,800202008

main82815-47C90iZYX11¥980201910

main82815-47C90iZYX10¥980201612-201910

main82815-F4260iNGX10,50¥2,380201612-201910

main82815-F4260iNGX10,50¥2,380201910-202008

82815HCOVER, WIRING HARNESS PROTECTOR NO.6

main82815-12L70iNGX10,50¥1,200202008

main82815-47D00iZYX11¥650201910

main82815-47D00iZYX10¥650201612-201910

main82815-F4270iNGX10,50¥1,610201612-201910

main82815-F4270iNGX10,50¥1,610201910-202008

82815JCOVER, WIRING HARNESS PROTECTOR, NO.7

main82815-12L40iNGX10,50¥350202008

main82815-47D30iZYX10¥1,070201612-201910

main82815-47D30iZYX11¥1,070201910

main82815-F4280iNGX10,50¥470201612-201910

main82815-F4280iNGX10,50¥470201910-202008

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-12W50iNGX10,50¥1,060202008

main82817-47N30iZYX11¥520201910

main82817-47N30iZYX10¥520201612-201910

main82817-F4270iNGX10,50¥8,900201612-201910

main82817-F4270iNGX10,50¥8,900201910-202008

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-12Z80iNGX10,50¥1,600202008

main82817-47N40iZYX10¥890201612-201910

main82817-47N40iZYX11¥890201910

main82817-F4280iNGX10,50¥2,120201612-201910

main82817-F4280iNGX10,50¥2,120201910-202008

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-12Z70iNGX10,50¥1,600202008

main82817-47N60iZYX10¥1,340201612-201910

main82817-47N60iZYX11¥1,340201910

main82817-F4290iNGX10,50¥2,120201612-201910

main82817-F4290iNGX10,50¥2,120201910-202008

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-12Z60iNGX10,50¥1,480202008

main82817-47N70iZYX10¥970201612-201910

main82817-47N70iZYX11¥970201910

main82817-F4300iNGX10,50¥1,920201612-201910

main82817-F4300iNGX10,50¥1,920201910-202008

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-12Z20iNGX10,50¥520202008

main82817-47P00iZYX11¥1,600201910

main82817-47P00iZYX10¥1,600201612-201910

main82817-F4310iNGX10,50¥700201612-201910

main82817-F4310iNGX10,50¥700201910-202008

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-47P10iZYX11¥920201910

main82817-47P10iZYX10¥920201612-201910

main82817-F4320iNGX10,50¥220201612-201910

main82817-F4320iNGX10,50¥220201910

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-12Z50iNGX10,50¥230202008

main82817-F4470iNGX10,50¥320201612-201910

main82817-F4470iNGX10,50¥320201910-202008

8401

89348XCLIP, ULTRASONIC SENSOR, FRONT

main89348-50050iNGX10,50,ZYX11¥260201910

�f�q�@�r�o�n�q�s

main89348-50050iNGX10,50,ZYX11¥260201910

�f�q�@�r�o�n�q�s���o�b�N���j�^�|�L���i���o�u�l�j

9011906951

main90119-06951¥80

9011906995

main90119-06995¥60

9017906274

main90179-06274¥70

9167180820

main91671-80820¥80

20 parts on this diagram · 16 diagrams in section
