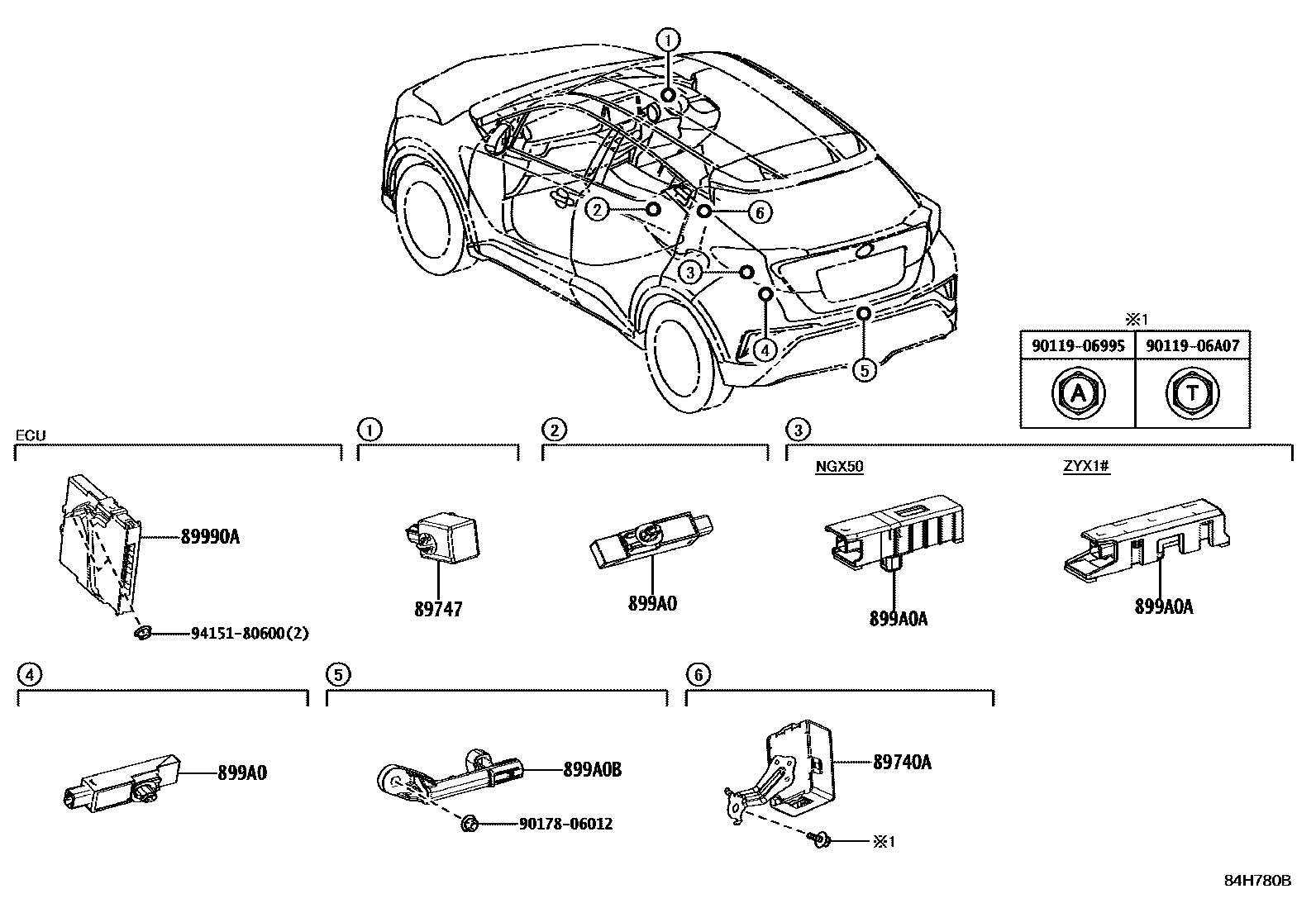

Toyota C-HR — WIRELESS DOOR LOCK

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-10010iNGX10,50,ZYX11¥12,900201910

main89740-10010iNGX10,50,ZYX10¥12,900201612-201910

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iNGX10,50,ZYX11¥2,900201910

main89747-30040iNGX10,50,ZYX10¥2,900201612-201910

89990ACOMPUTER ASSY, SMART KEY

main89990-10010iNGX50¥59,300201612-201710

sub89990-10011¥59,300

main89990-10011iNGX50¥59,300201711-201805

main89990-10012iNGX10,50¥59,300201805-201910

main89990-10013iNGX10,50¥49,400201910

main89990-10020iZYX10¥59,300201612-201805

main89990-10021iZYX10¥59,300201805-201910

main89990-10022iZYX11¥49,400201910

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iNGX10,50,ZYX10¥1,410201612-201910

main899A0-47010iNGX10,50,ZYX11¥1,410201910

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-10010iNGX50¥1,550201612-201805

main899A0-47050iZYX10¥1,550201612-201910

main899A0-47050iZYX11¥1,550201910

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main89997-30100iNGX10,50,ZYX10¥1,800201612-201910

main89997-30100iNGX10,50,ZYX11¥1,800201910

9011906995

main90119-06995¥60

9011906A07

main90119-06A07¥60

9017806012

main90178-06012¥80

9415180600

main94151-80600¥60

10 parts on this diagram · 1 diagram in section
