Toyota C-HR — TRANSAXLE ASSY(CVT)

Parts diagram

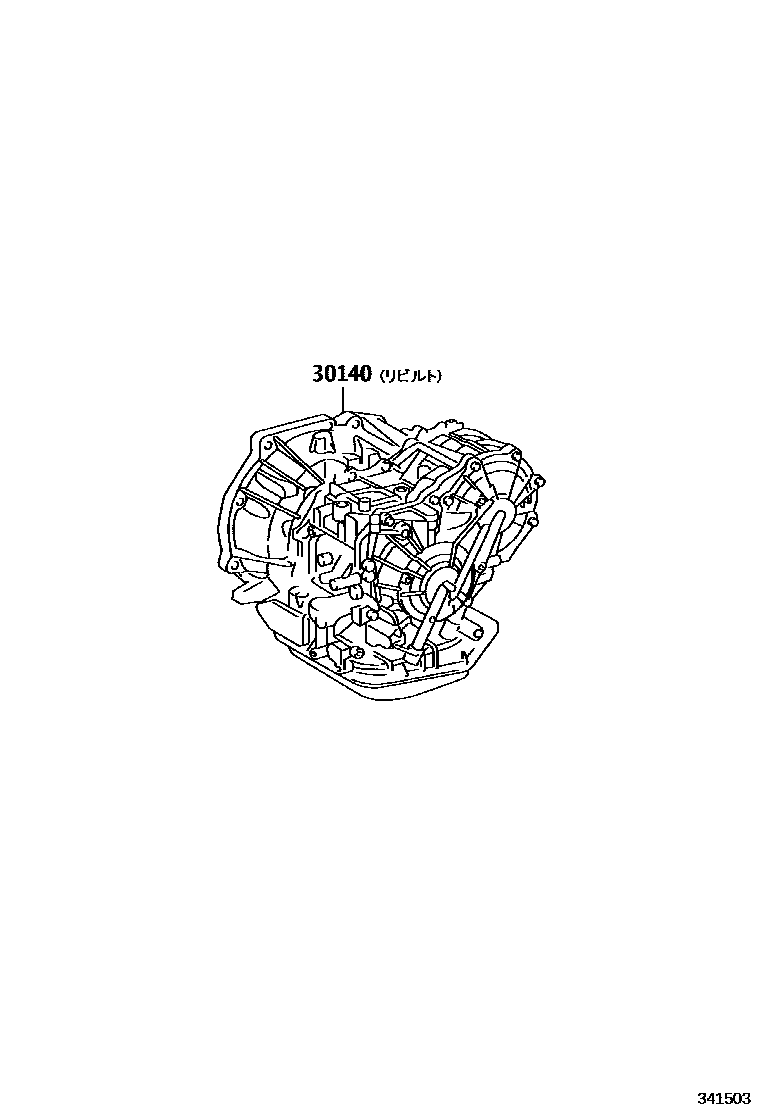

30140TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER)

main30140-10020i¥246,000201612-201910

1 parts on this diagram · 3 diagrams in section
