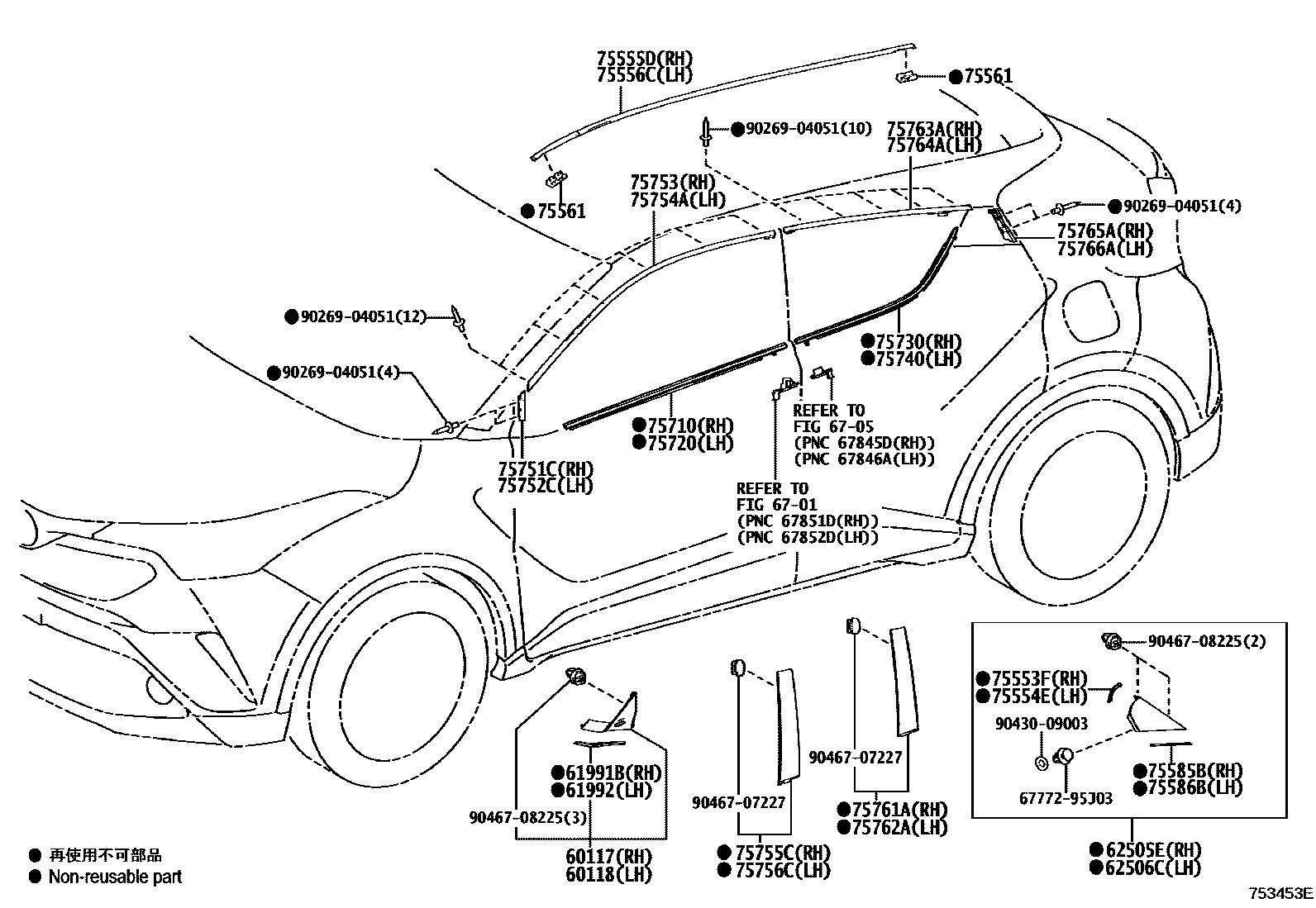

Toyota C-HR — SIDE MOULDING

0001 1 0002 1

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-10010iNGX10,50,ZYX10¥1,310201612-201910

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-10010iNGX10,50,ZYX10¥1,310201612-201910

61991BPROTECTOR, FRONT PILLAR COVER, RH

main61991-10010iNGX10,50,ZYX10¥220201612-201910

61992PROTECTOR, FRONT PILLAR COVER, LH

main61992-10010iNGX10,50,ZYX10¥220201612-201910

62505ECOVER SUB-ASSY, QUARTER PILLAR, RH

main62505-10010iNGX10,50,ZYX10¥2,300201612-201910

62506CCOVER SUB-ASSY, QUARTER PILLAR, LH

main62506-10010iNGX10,50,ZYX10¥2,300201612-201910

6701

6705

75553FMOULDING, QUARTER GARNISH, RH

main75553-10040iNGX10,50,ZYX10¥320201612-201910

75554EMOULDING, QUARTER GARNISH, LH

main75554-10040iNGX10,50,ZYX10¥320201612-201910

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-10020iNGX10,50,ZYX10¥2,380201612-201910

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-10020iNGX10,50,ZYX10¥2,380201612-201910

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030iNGX10,50,ZYX10¥140201612-201910

75585BPROTECTOR, REAR PILLAR GARNISH, NO.1

main75585-10010iNGX10,50,ZYX11¥470201612-201910

75586BPROTECTOR, REAR PILLAR GARNISH, NO.2

main75585-10010iNGX10,50,ZYX10¥470201701-201910

main75586-10010iNGX50,ZYX10¥690201612-201701

sub75585-10010¥470

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-10080iNGX10,50,ZYX10..S,ST¥2,640201612-201910

main75710-10090iNGX10,50,ZYX10..G,GT¥5,200201612-201910

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-10080iNGX10,50,ZYX10..S,ST¥2,640201612-201910

main75720-10090iNGX10,50,ZYX10..G,GT¥5,200201612-201910

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-10020iNGX10,50,ZYX10..S,ST¥2,640201612-201910

main75730-10030iNGX10,50,ZYX11..G,GT¥4,220201612-201910

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-10060iNGX10,50,ZYX10..S,ST¥2,640201612-201910

main75740-10070iNGX10,50,ZYX11..G,GT¥4,220201612-201910

75751CMOULDING, FRONT DOOR WINDOW FRAME, FRONT RH

main75751-10040iNGX10,50,ZYX10¥1,120201612-201910

75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75752-10040iNGX10,50,ZYX11¥1,120201612-201910

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-10010iNGX10,50,ZYX11¥2,640201612-201910

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-10010iNGX10,50,ZYX11¥2,640201612-201910

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-10010iNGX10,50,ZYX10..S,ST¥1,230201612-201910

main75755-10020iNGX10,50,ZYX10..G,GT¥1,720201612-201910

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-10010iNGX10,50,ZYX11..S,ST¥1,230201612-201910

main75756-10020iNGX10,50,ZYX11..G,GT¥1,720201612-201910

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-10010iNGX10,50,ZYX11..S,ST¥1,630201612-201910

main75761-10020iNGX10,50,ZYX10..G,GT¥2,280201612-201910

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-10010iNGX10,50,ZYX10..S,ST¥1,630201612-201910

main75762-10020iNGX10,50,ZYX10..G,GT¥2,280201612-201910

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-10010iNGX10,50,ZYX10¥2,640201612-201910

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-10010iNGX10,50,ZYX10¥2,640201612-201910

75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-10010iNGX10,50,ZYX10¥1,120201612-201910

75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-10010iNGX10,50,ZYX10¥1,120201612-201910

6777295J03WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J03¥170

9026904051

main90269-04051¥40

9043009003

main90430-09003¥60

9046707227

main90467-07227¥80

9046708225

main90467-08225¥60

36 parts on this diagram · 2 diagrams in section
