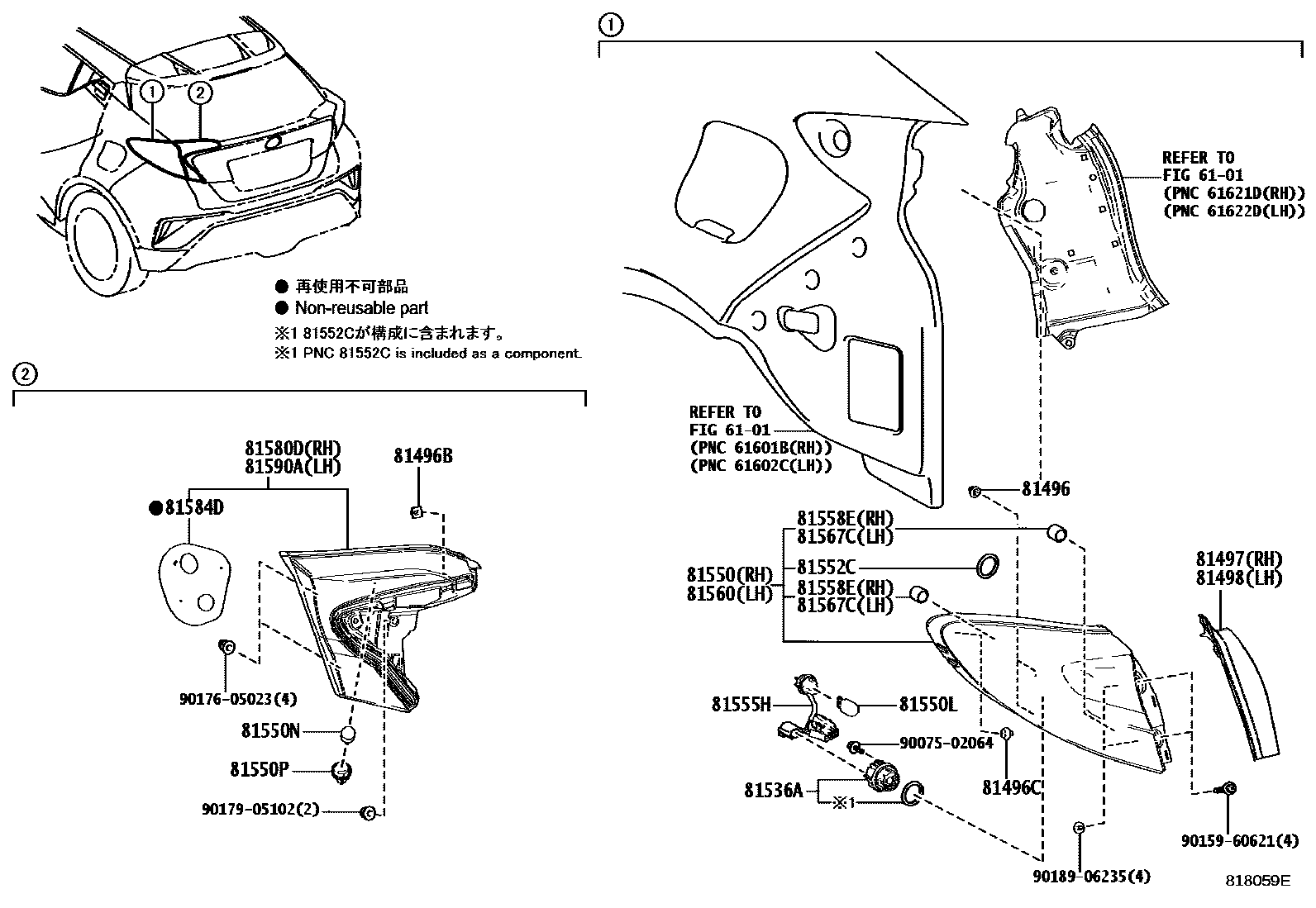

Toyota C-HR — REAR COMBINATION LAMP

0001 1���������(������������) 0002 1LED����(������������) 0003 1LED����(������������)

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iNGX10,50,ZYX10¥70201612-201910

81496BGUIDE, REAR LAMP

main76817-26040iNGX10,50,ZYX10¥110201612-201910

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iNGX10,50,ZYX10¥100201612-201910

81497COVER, REAR COMBINATION LAMP, RH

main81497-10010iNGX10,50,ZYX11¥1,480201612-201910

81498COVER, REAR COMBINATION LAMP, LH

main81498-10010iNGX10,50,ZYX10¥1,480201612-201910

81536ALED, REAR COMBINATION LAMP

main00000-00000iNGX10,50,ZYX10..G,GT201805-201910

main81536-52C80iNGX10,50,ZYX11..S,ST¥2,590201612-201910

81550LAMP ASSY, REAR COMBINATION, RH

main81550-10410iNGX10,50,ZYX11..G,GT¥58,000201910

main81550-10420iNGX10,50,ZYX10..G,GT¥56,400201805-201910

main81551-10380iNGX50,ZYX10..G,GT¥21,900201612-201910

81550LBULB, REAR TURN SIGNAL LAMP

main00000-00000iNGX10,50,ZYX10..G,GT201805-201910

main90981-15021iNGX10,50,ZYX11..S,ST¥300201612-201910

81550NBULB, BACK UP LAMP

main00000-00000iNGX10,50,ZYX10..G,GT201805-201910

main90981-11059iNGX10,50,ZYX10..S,ST¥200201612-201910

81550PSOCKET, BACK UP LAMP

main00000-00000iNGX10,50,ZYX10..G,GT201805-201910

main90075-60001iNGX50,ZYX10..G,GT¥610201612-201910

81552CGASKET, REAR COMBINATION LAMP

main00000-00000iNGX10,50,ZYX10..G,GT201805-201910

main90075-68010iNGX10,50,ZYX11..S,ST¥610201612-201910

81555HSOCKET & WIRE, REAR COMBINATION LAMP

main00000-00000iNGX10,50,ZYX10..G,GT201805-201910

main81555-10380iNGX50,ZYX10..G,GT¥1,400201612-201910

81558ECOVER, REAR COMBINATION LAMP, RH

main00000-00000iNGX10,50,ZYX10..G,GT201805-201910

main90075-15512iNGX50,ZYX10..G,GT¥610201612-201910

81560LAMP ASSY, REAR COMBINATION, LH

main81560-10410iNGX10,50,ZYX11..G,GT¥58,000201910

main81560-10420iNGX10,50,ZYX10..G,GT¥56,400201805-201910

main81561-10380iNGX50,ZYX10..G,GT¥21,900201612-201910

81567CCOVER, REAR COMBINATION LAMP, LH

main00000-00000iNGX10,50,ZYX10..G,GT201805-201910

main90075-15512iNGX50,ZYX10..G,GT¥610201612-201910

81580DLAMP ASSY, REAR, RH

main81580-10030iNGX10,50,ZYX11..G,GT¥35,600201910

main81580-10040iNGX10,50,ZYX10..G,GT¥39,000201805-201910

sub81580-10041¥39,000

main81581-10010iNGX50,ZYX10¥20,600201612-201711

sub81581-10011¥17,100

main81581-10011iNGX10,50,ZYX10..S,ST¥17,100201711-201910

81584DGASKET, REAR LAMP

main81584-10010iNGX10,50,ZYX10..S,ST¥750201612-201910

main81584-10020iNGX10,50,ZYX10..G,GT¥900201805-201910

81590ALAMP ASSY, REAR, LH

main81590-10030iZYX11..S;NGX10..6F..ST¥35,600201910

main81590-10040iNGX10,50,ZYX10..S,ST¥39,000201805-201910

sub81590-10041¥39,000

main81591-10010iNGX50,ZYX10¥20,600201612-201711

sub81591-10011¥21,300

main81591-10011iNGX10,50,ZYX10..S,ST¥21,300201711-201910

9007502064

main90075-02064¥60

9015960621

main90159-60621¥60

9017605023

main90176-05023¥80

9017905102

main90179-05102¥90

9018906235

main90189-06235¥70

24 parts on this diagram · 3 diagrams in section
