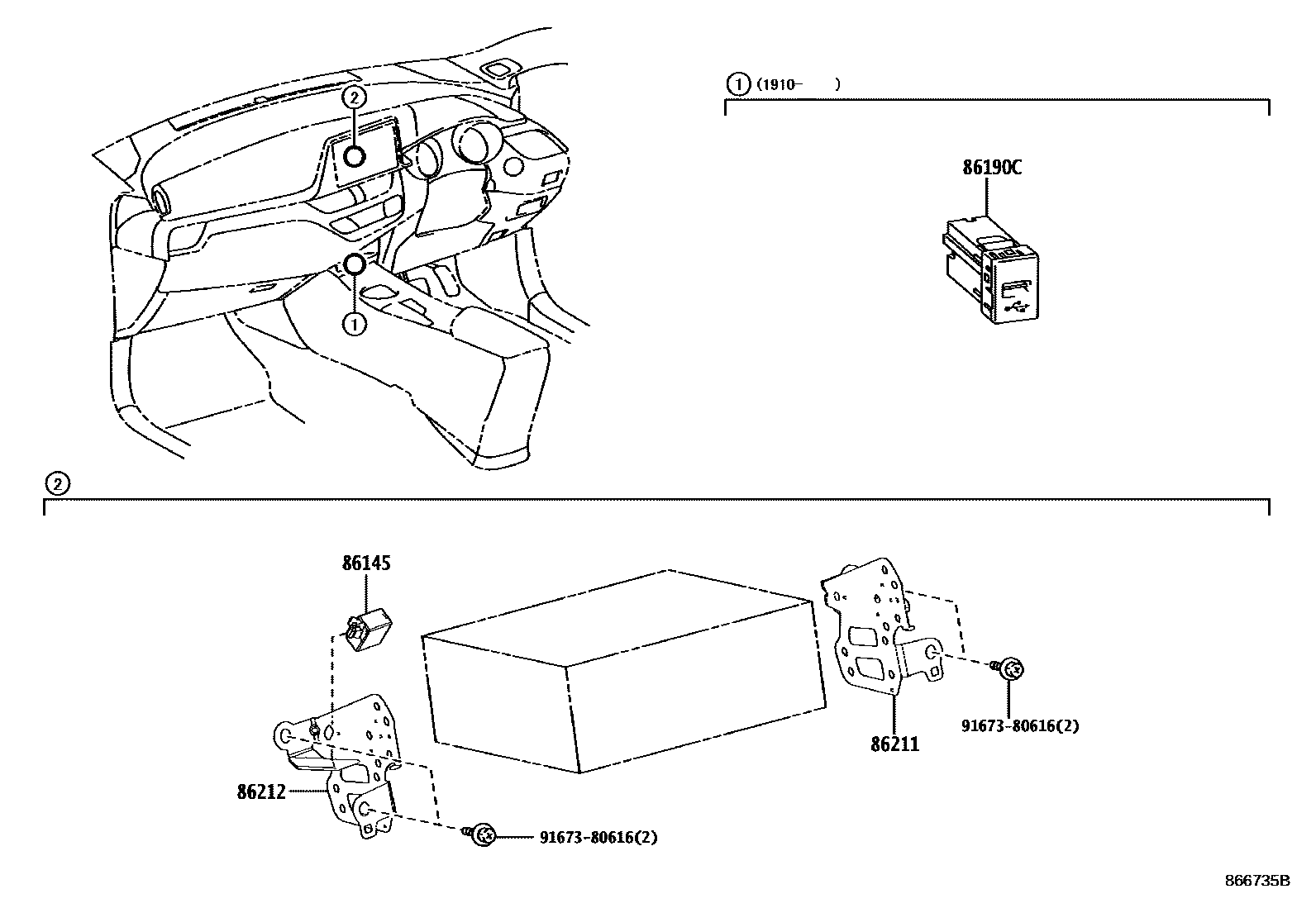

Toyota C-HR — RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1����� 0002 1������

86145CONNECTOR, ANTENNA MALE

main86145-52010iNGX10,50,ZYX10¥170201612-201910

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-12060iNGX10,50,ZYX11¥5,000201910-202008

sub86190-12061¥3,780

main86190-12061iNGX10,50,ZYX11¥3,780202009

86211BRACKET, RADIO, NO.1

main86211-10150iNGX10,50,ZYX10¥470201612-201910

86212BRACKET, RADIO, NO.2

main86212-10150iNGX10,50,ZYX10¥470201612-201910

9167380616

main91673-80616¥60

5 parts on this diagram · 2 diagrams in section
