Toyota C-HR — PARKING BRAKE & CABLE

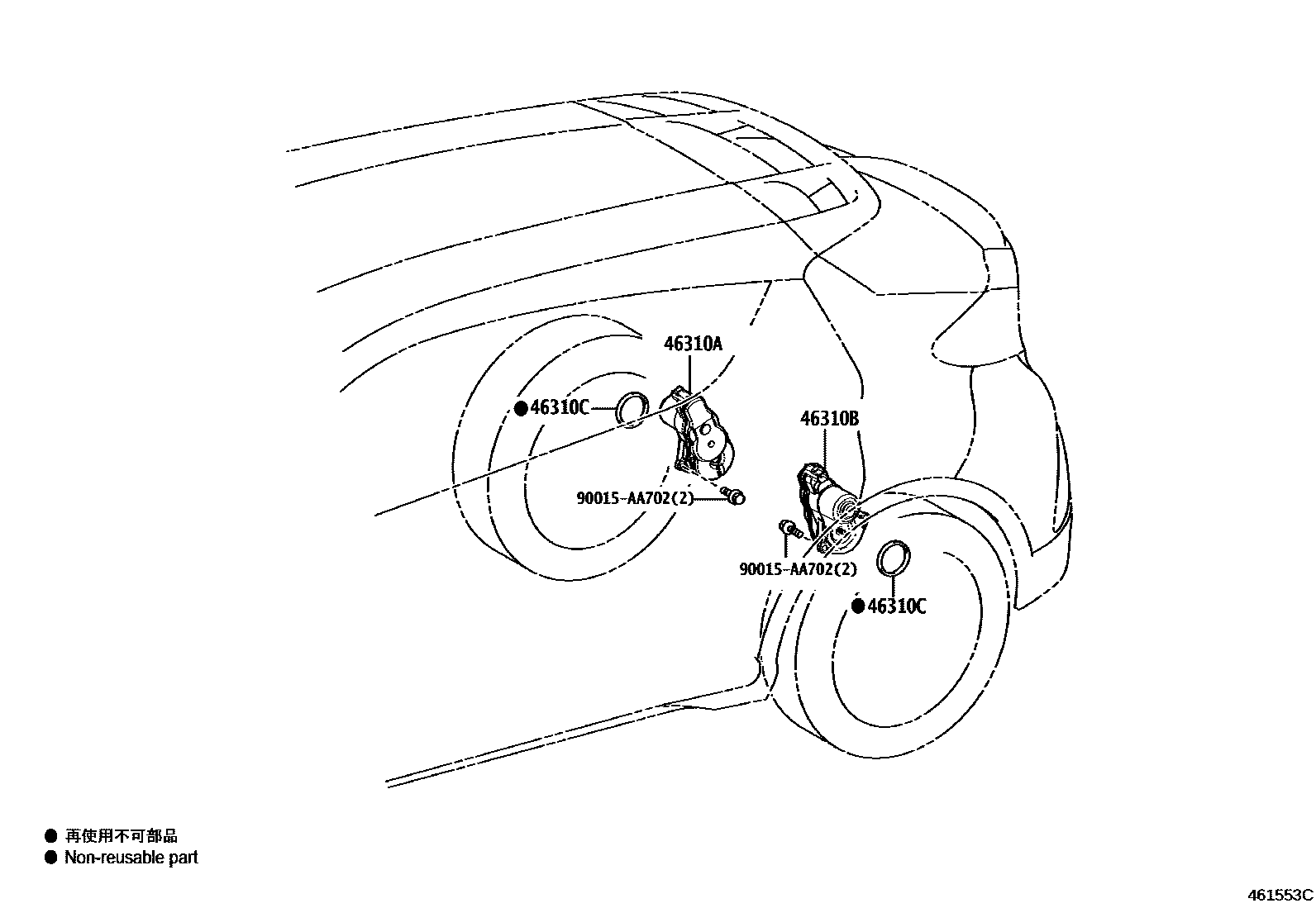

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-33010iNGX10,50,ZYX11¥14,400201910

main46310-78010iNGX10,50,ZYX10¥15,900201612-201910

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-33010iNGX10,50,ZYX11¥14,400201910

main46310-78010iNGX10,50,ZYX10¥15,900201612-201910

46310CSEAL(FOR PARKING BRAKE ACTUATOR)

main90015-AH005iNGX10,50,ZYX10¥130201612-201910

main90015-AH005iNGX10,50,ZYX11¥130201910

90015AA702

main90015-AA702¥270

4 parts on this diagram · 1 diagram in section
