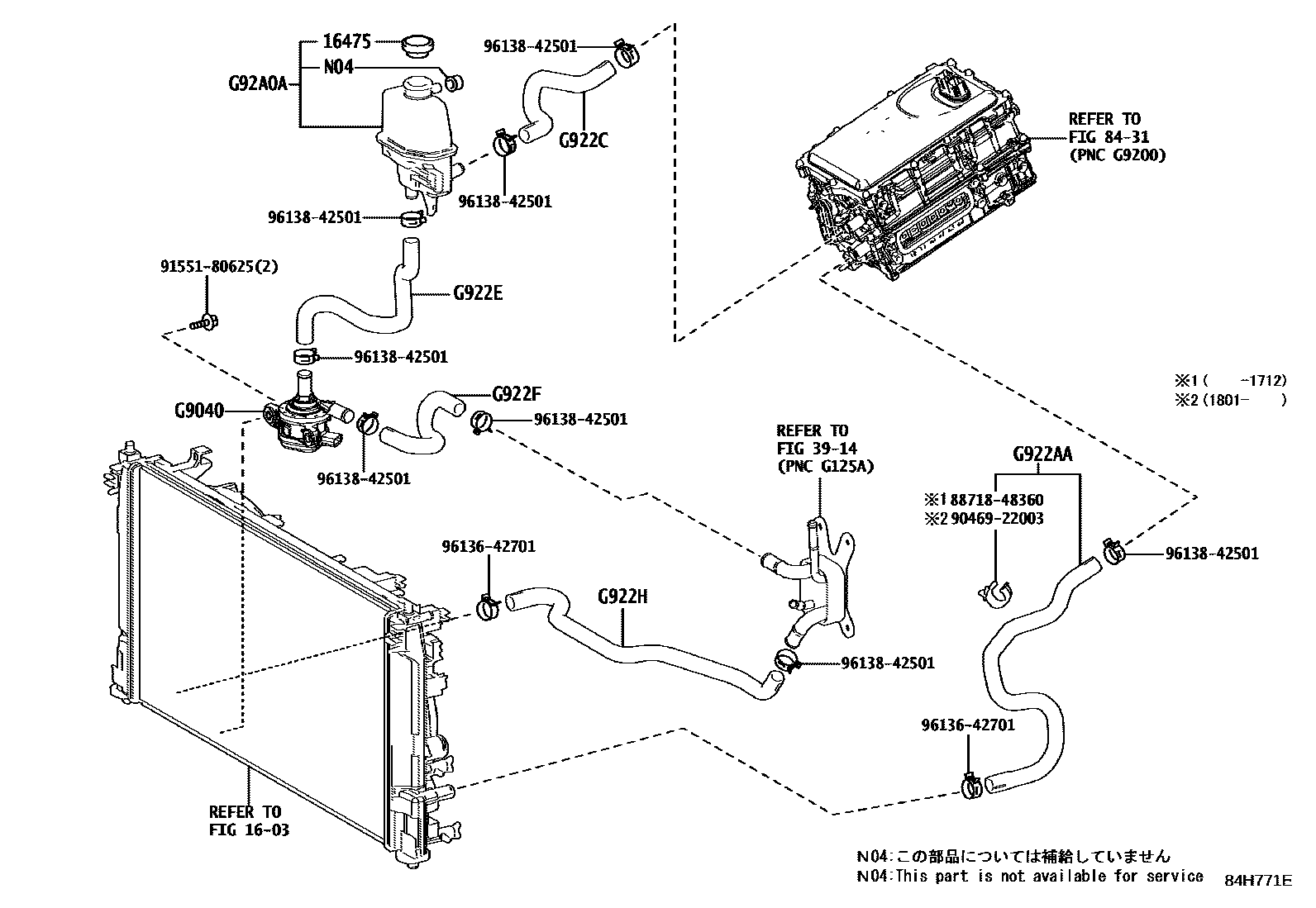

Toyota C-HR — INVERTER COOLING

1603

16475CAP, RESERVE TANK

main16475-28140i2ZRFXE..ZYX10¥1,200201612-201910

3914

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904047040iZYX10201612-201910

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A47010iZYX10201612-201910

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C47010iZYX10201612-201910

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E47010iZYX10201612-201910

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F47010iZYX10201612-201910

G922HHOSE, HYBRID RADIATOR INLET

mainG922H47010iZYX10201612-201910

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H047011iZYX10201612-201910

8871848360PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48360

9046922003

main90469-22003¥110

9155180625

main91551-80625¥60

9613642701

main96136-42701¥200

9613842501

main96138-42501¥180

16 parts on this diagram · 1 diagram in section
