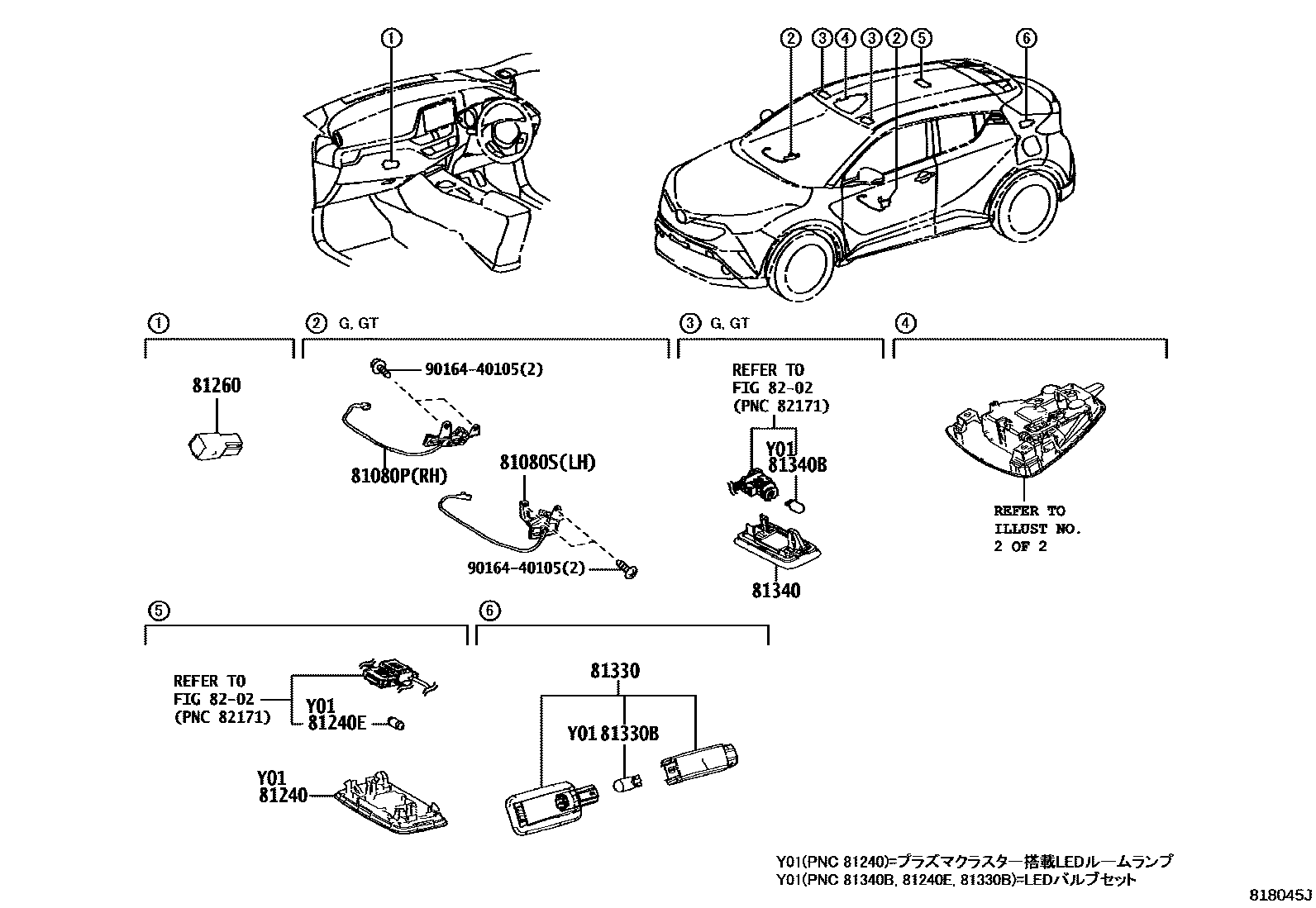

Toyota C-HR — INTERIOR LAMP

0001 1 0002 1 0003 1

81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-10010-C1iNGX10,50,ZYX10..G,GT201612-201910

BLACK,TRIM2#

main81080-10020-C0iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#

81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81090-10010-C1iNGX10,50,ZYX10..G,GT201612-201910

BLACK,TRIM2#

main81090-10020-C0iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#

81240LAMP ASSY, ROOM, NO.1

main81240-35020-C1iNGX10,50,ZYX10201612-201906

BLACK,TRIM2#

sub81240-35020¥2,850

sub81240-42020¥2,230

main81240-42020-C0iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#

main81240-42020-C0iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#

main81240-42020-C0iNGX10,50,ZYX10201906-201910

BLACK,TRIM2#

81240EBULB, ROOM LAMP, NO.2

main90981-14011iNGX10,50,ZYX10¥180201612-201910

�P�Q�u�@�W�v

main90981-14011iNGX10,50,ZYX11¥180201910

�P�Q�u�@�W�v

81260LAMP ASSY, GLOVE BOX

main81080-33290iNGX10,50,ZYX10¥920201708-201910

main81080-33290iNGX10,50,ZYX11¥920201910

main81080-58100iNGX50,ZYX10¥920201612-201707

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-30210iNGX10,50,ZYX10¥1,250201612-201910

main81250-30210iNGX10,50,ZYX11¥1,250201910

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iNGX10,50,ZYX10¥110201612-201910

�P�Q�u�@�T�v

main99132-12050iNGX10,50,ZYX11¥110201910

�P�Q�u�@�T�v

81340LAMP ASSY, VANITY

main81340-30110iNGX10,50,ZYX10..G,GT¥1,670201612-201910

main81340-30110iNGX10,50,ZYX11..G,GT¥1,670201910

81340BBULB (FOR VANITY LAMP)

main90981-11062iNGX10,50,ZYX10..G,GT¥340201612-201910

�P�Q�u�@�W�v

main90981-11062iNGX10,50,ZYX11..G,GT¥340201910

�P�Q�u�@�W�v

8202

9016440105

main90164-40105¥70

11 parts on this diagram · 3 diagrams in section
