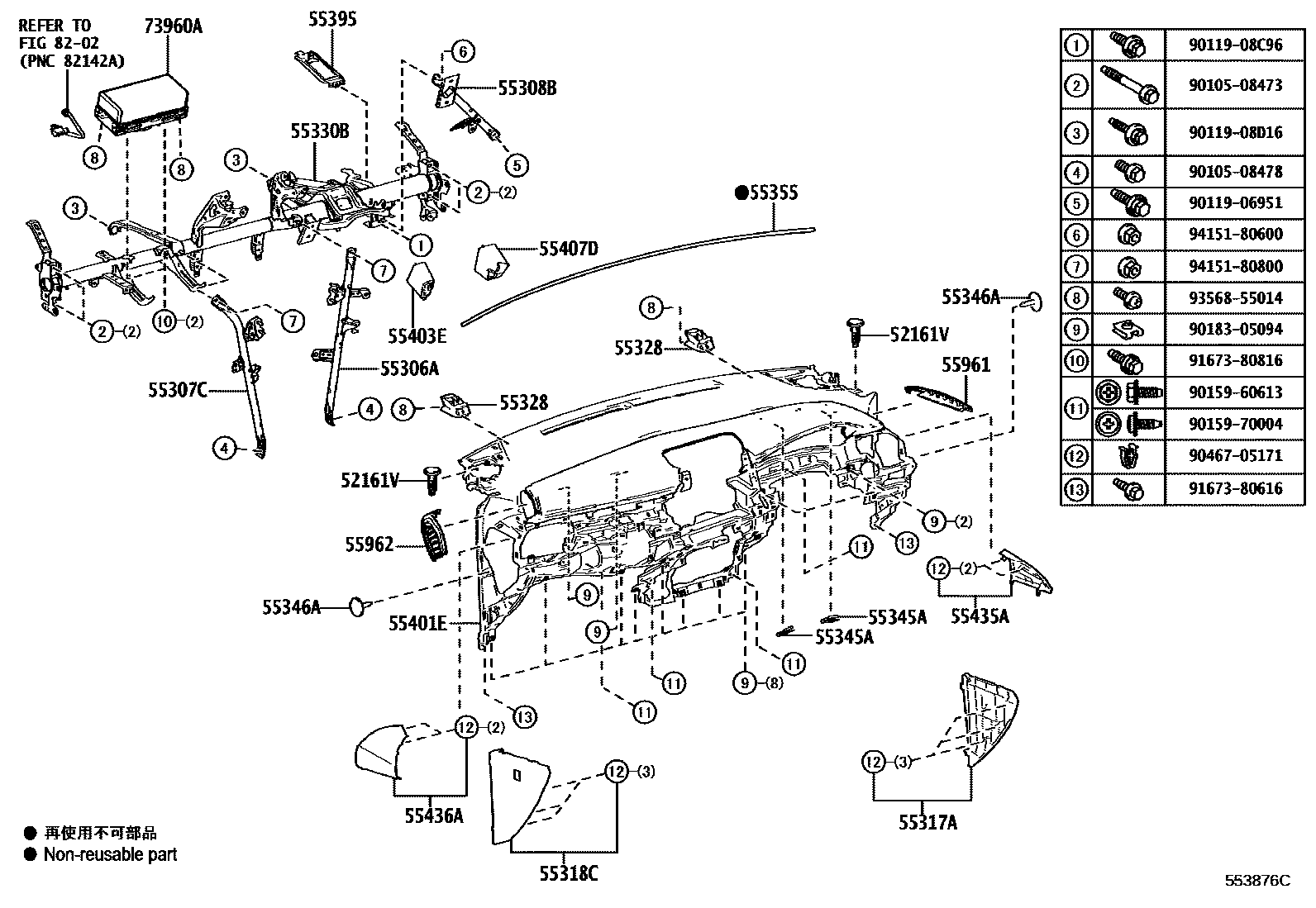

Toyota C-HR — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1��������� 0004 1��������� 0005 1��������� 0006 1����� 0007 1����� 0008 1����� 0009 1���������� 0010 1���������� 0011 1����������

52161VPIECE, INSTRUMENT PANEL

main52161-16010iNGX10,50,ZYX10¥120201612-201910

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-10050iNGX10,50,ZYX10¥1,900201612-201910

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-10060iNGX10,50,ZYX10¥1,720201612-201910

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-10120iNGX10,50,ZYX10¥1,490201612-201910

55317APANEL, INSTRUMENT SIDE, RH

main55317-10010-C1iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#,8#

main55317-10010-C1iNGX10,50,ZYX10201612-201910

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-10070-C1iNGX10,50,ZYX10201612-201910

BLACK,TRIM2#

main55318-10070-C1iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#,8#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-10040iNGX10,50,ZYX10¥370201612-201910

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-10190iNGX10,50,ZYX10¥19,500201612-201910

main55330-10220iNGX10,50,ZYX11¥16,300201910

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060iNGX10,50,ZYX10¥90201612-201910

55346ACLIP, INSTRUMENT PANEL, NO.2

main90467-05161-C9iNGX10,50,ZYX10201612-201910

BLACK

sub90467-05161¥90

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-10020iNGX10,50,ZYX10¥700201612-201910

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-10010iNGX10,50,ZYX10¥970201612-201910

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-10270-C3iNGX10,50,ZYX10..G,GT201612-201910

BLACK/LICORICE,TRIM20

main55401-10270-C4iNGX10,50,ZYX10..S,ST201612-201910

BLACK,TRIM2#

main55401-10270-C4iNGX10,50,ZYX10..S,ST201612-201910

BLACK,TRIM23

main55401-10270-C5iNGX10,50,ZYX10..G,GT201812-201910

BLACK/DK.SADDLE TAN,TRIM24

main55401-10300-C0iNGX10,50,ZYX11..CVT..(G,GT)201910

BLACK/SOFT BLACK,TRIM20

main55401-10300-C0iNGX10,50,ZYX11..S,ST201910

BLACK/SOFT BLACK,TRIM2#

main55401-10300-C0iNGX10,50,ZYX11..S,ST201910

BLACK/SOFT BLACK,TRIM20,26,27

main55401-10300-C1iNGX10,50,ZYX11..G,GT201910

BLACK/ORCHID BROWN,TRIM22,4#

55403EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2

main55403-10030iNGX10,50,ZYX10¥1,610201612-201910

55407DPAD SUB-ASSY, INSTRUMENT PANEL, END

main55407-10090iNGX10,50,ZYX10¥2,160201612-201910

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-10150-C1iNGX10,50,ZYX10201612-201910

BLACK,TRIM2#

main55435-10150-C1iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#,8#

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-10010-C1iNGX10,50,ZYX10201612-201910

BLACK,TRIM2#

main55436-10010-C1iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#,8#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-10030-C1iNGX10,50,ZYX11..S,ST201910

BLACK,TRIM2#,4#,8#

main55961-10030-C1iNGX10,50,ZYX10201612-201910

BLACK,TRIM2#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-10030-C1iNGX10,50,ZYX10201612-201910

BLACK,TRIM2#

main55962-10030-C1iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#,8#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-10010iNGX10,50,ZYX10¥83,200201612-201910

8202

9010508473

main90105-08473¥100

9010508478

main90105-08478¥80

9011906951

main90119-06951¥80

9011908C96

main90119-08C96¥80

9011908D16

main90119-08D16¥100

9015960613

main90159-60613¥60

9015970004

main90159-70004¥60

9018305094

main90183-05094¥90

9046705171

main90467-05171¥60

9167380616

main91673-80616¥60

9167380816

main91673-80816¥80

9356855014

main93568-55014¥70

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

35 parts on this diagram · 11 diagrams in section
