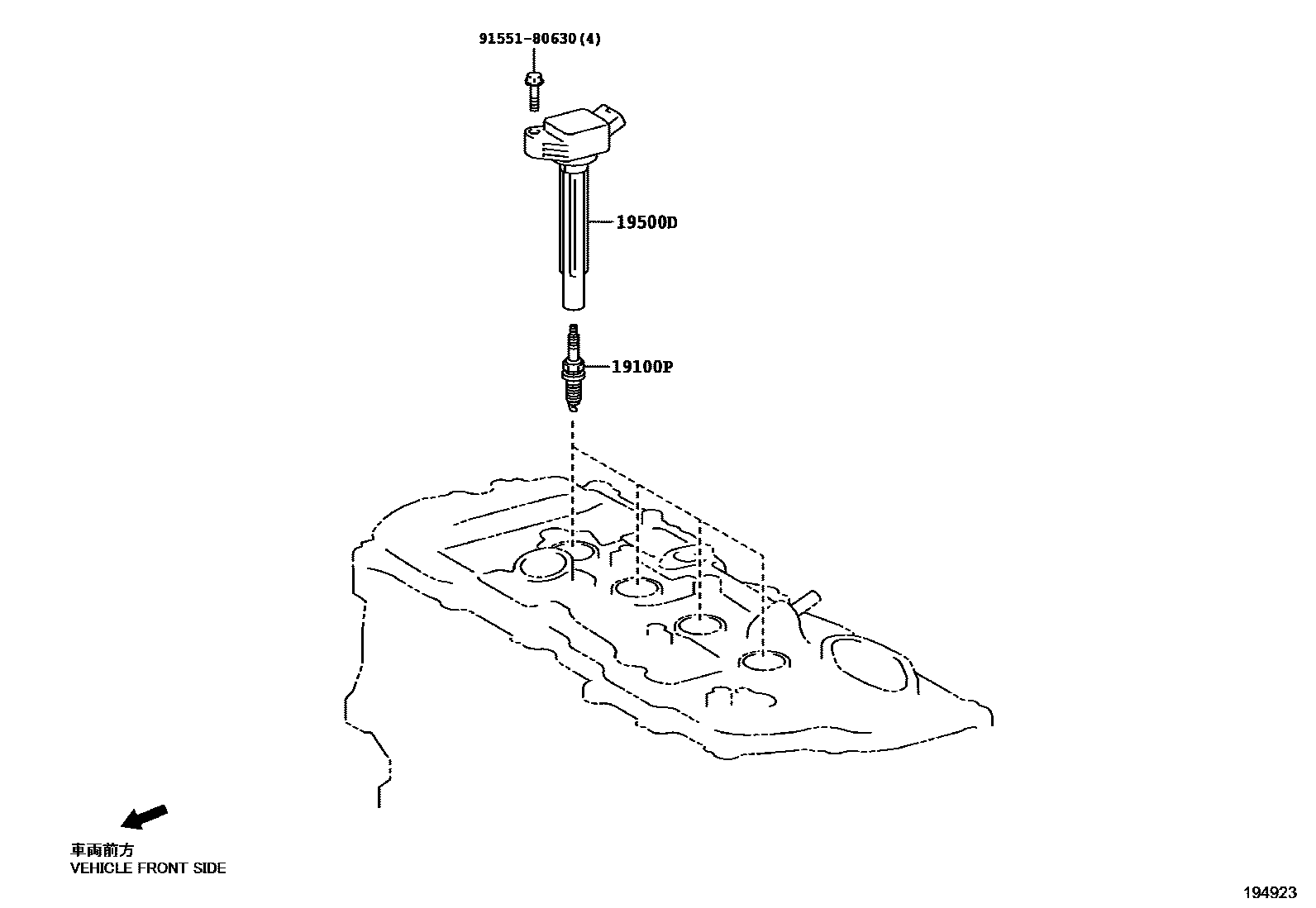

Toyota C-HR — IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90919-01281i2ZRFXE..ZYX10¥2,400201612-201708

sub90919-01298¥2,400

main90919-01285i8NRFTS..NGX10,50¥2,100201612-201910

main90919-01298i2ZRFXE..ZYX11¥2,400201709-201910

19500COIL ASSY, IGNITION

main90919-02272i2ZRFXE..ZYX10¥8,300201612-201910

19500DCOIL, IGNITION, NO.1

main90919-02271i8NRFTS..NGX10,50¥7,500201612-201910

9155180630

main91551-80630¥60

4 parts on this diagram · 2 diagrams in section
