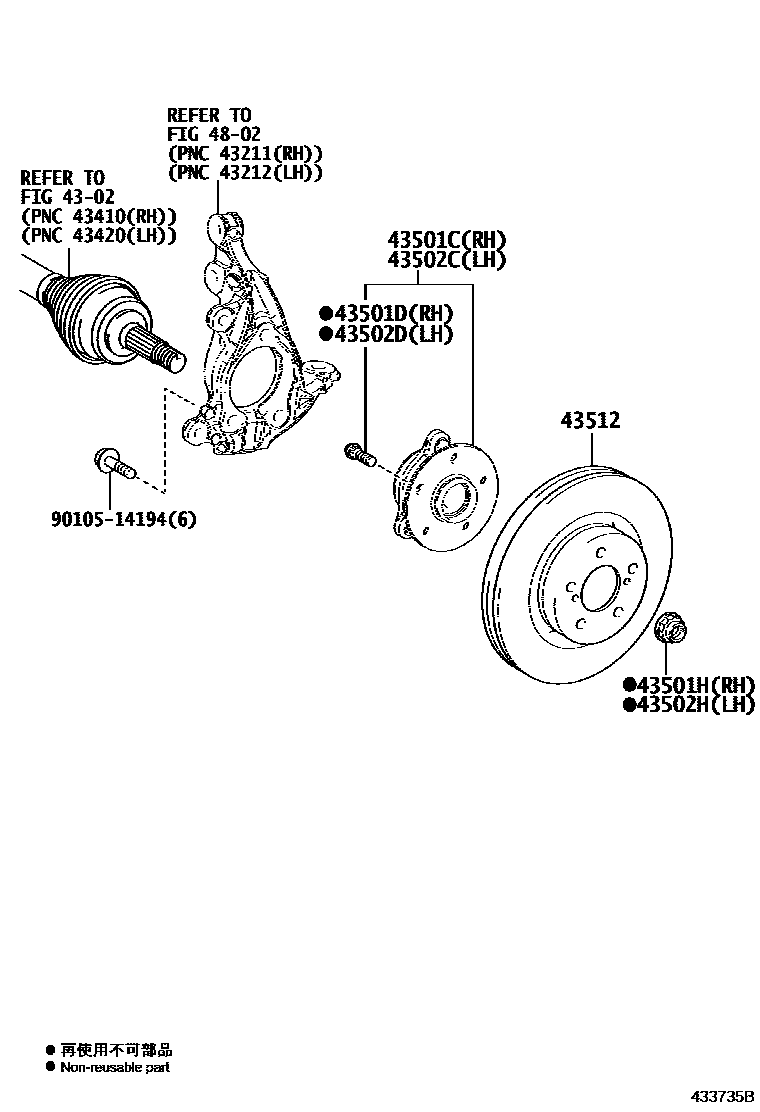

Toyota C-HR — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-10010iNGX10,50,ZYX11¥13,600201612-201910

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iNGX10,50,ZYX10¥240201612-201910

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNGX10,50,ZYX10¥220201612-201910

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-10010iNGX10,50,ZYX11¥13,600201612-201910

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iNGX10,50,ZYX10¥240201612-201910

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iNGX10,50,ZYX10¥220201612-201910

43512DISC, FRONT

main43512-33150iNGX10,50,ZYX11¥9,300201910

main43512-F4010iNGX10,50,ZYX10¥9,300201612-201910

4802

9010514194

main90105-14194¥240

10 parts on this diagram · 1 diagram in section
