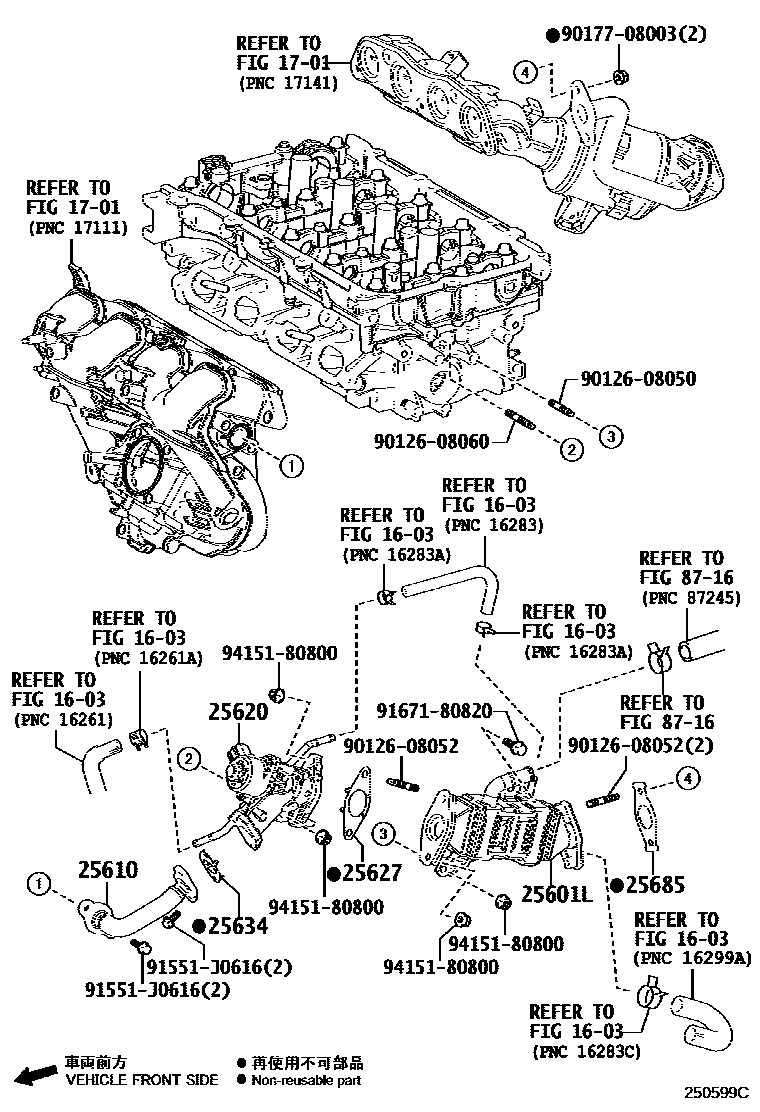

Toyota C-HR — EXHAUST GAS RECIRCULATION SYSTEM

1603

1701

25601LPIPE SUB-ASSY, EGR W/COOLER

main25601-37020i2ZRFXE..ZYX10¥16,500201612-202107

sub25601-37050¥14,900

sub16281-37071¥600

sub16281-37190¥880

main25601-37050i2ZRFXE..ZYX11¥14,900202107

25610PIPE ASSY, EGR

main25610-37020i2ZRFXE..ZYX10¥3,140201612-201910

25620VALVE ASSY, EGR

main25620-37140i2ZRFXE..ZYX10¥18,400201612-201910

25627GASKET, EGR VALVE

main25627-37020i2ZRFXE..ZYX10¥270201612-201910

25634GASKET, EGR PIPE

main25634-37020i2ZRFXE..ZYX10¥270201612-201910

25685GASKET, EGR COOLER, NO.1

main25685-37020i2ZRFXE..ZYX10¥210201612-201910

8716

9012608050

main90126-08050¥80

9012608052

main90126-08052¥80

9012608060

main90126-08060¥210

9017708003

main90177-08003¥80

91551J0616

main91551-J0616¥60

9167180820

main91671-80820¥80

9415180800

main94151-80800¥80

16 parts on this diagram · 1 diagram in section
