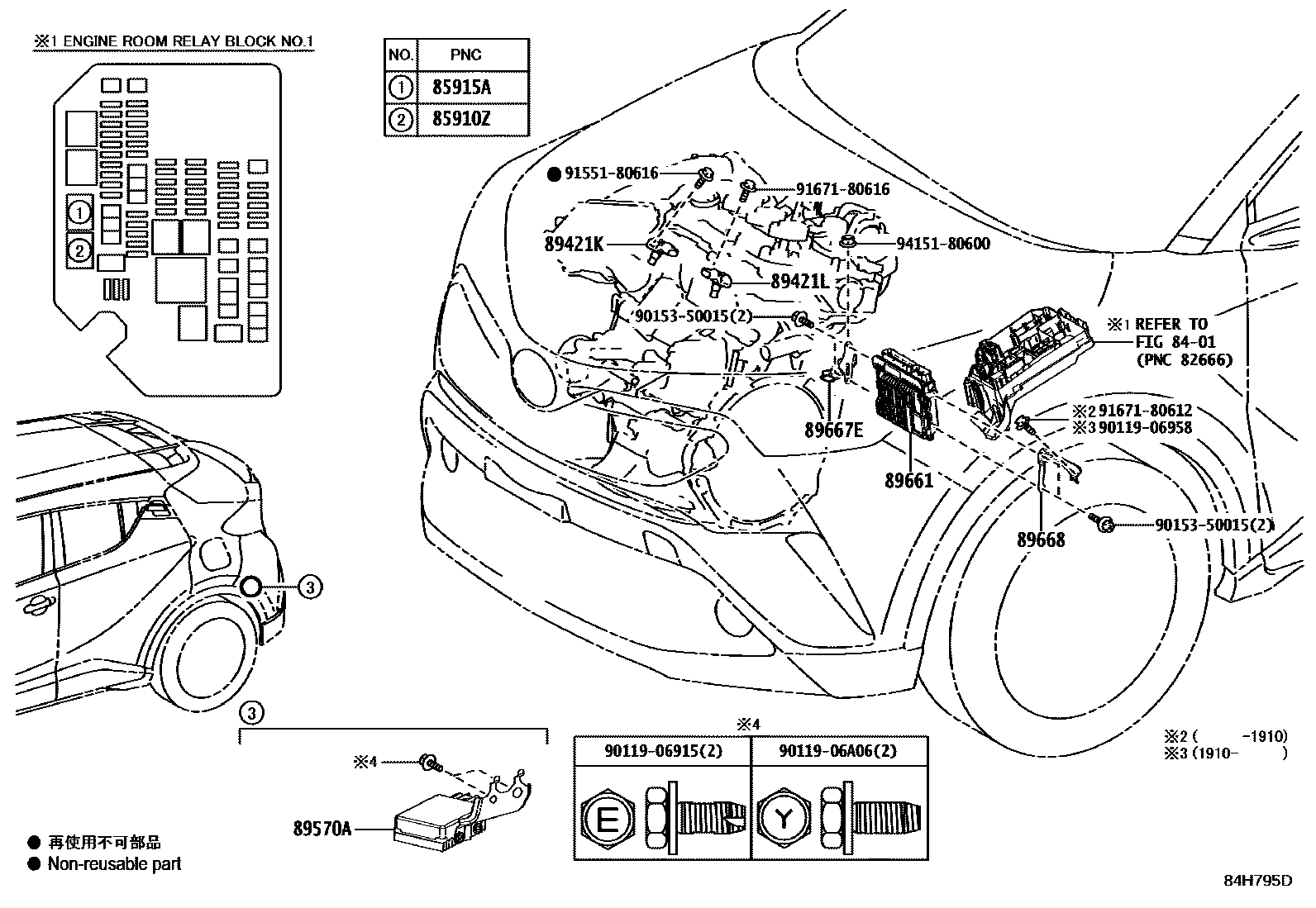

Toyota C-HR — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8401

85910ZRELAY, INJECTION (FOR EFI)

main90987-02027iNGX10,50¥2,930201612-201910

85915ARELAY, MAIN

main90987-02027iNGX10,50¥2,930201612-201910

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZYX10¥5,900201612-201910

89421KSENSOR, TURBO PRESSURE, NO.1

main89421-78010iNGX10,50¥5,900201612-201910

89421LSENSOR, TURBO PRESSURE, NO.2

main89421-78010iNGX10,50¥5,900201612-201910

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-10040iNGX10,50¥6,300201612-201910

89661COMPUTER, ENGINE CONTROL

main89661-10300iZYX10¥93,800201612-201801

sub89661-10301¥93,800

main89661-10301iZYX10¥93,800201802-201910

main89661-10380iNGX50¥107,000201612-201910

main89661-10400iNGX10¥107,000201805-201910

main89661-10420iZYX11¥89,100201910

main89661-10450iNGX10..6F¥93,800201910-202008

main89661-10490iNGX10..CVT¥93,800201910-202008

main89661-10500iNGX50¥107,000201910-202008

main89661-10530iNGX50¥89,100202008

main89661-10540iNGX10..CVT¥89,100202008

main89661-10550iNGX10..6F¥89,100202008

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-10050iNGX10,50¥470201612-201910

main89667-12370iZYX11¥450201910

main89667-47100iZYX10¥530201612-201910

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-10050iNGX10,50¥500201612-201910

main89668-12320iNGX10,50¥400201910

main89668-47050iZYX11¥440201612-201910

9011906915

main90119-06915¥60

9011906958

main90119-06958¥60

9011906A06

main90119-06A06¥60

9015350015

main90153-50015¥60

9155180616

main91551-80616¥60

9167180612

main91671-80612¥60

9167180616

main91671-80616¥60

9415180600

main94151-80600¥60

18 parts on this diagram · 2 diagrams in section
