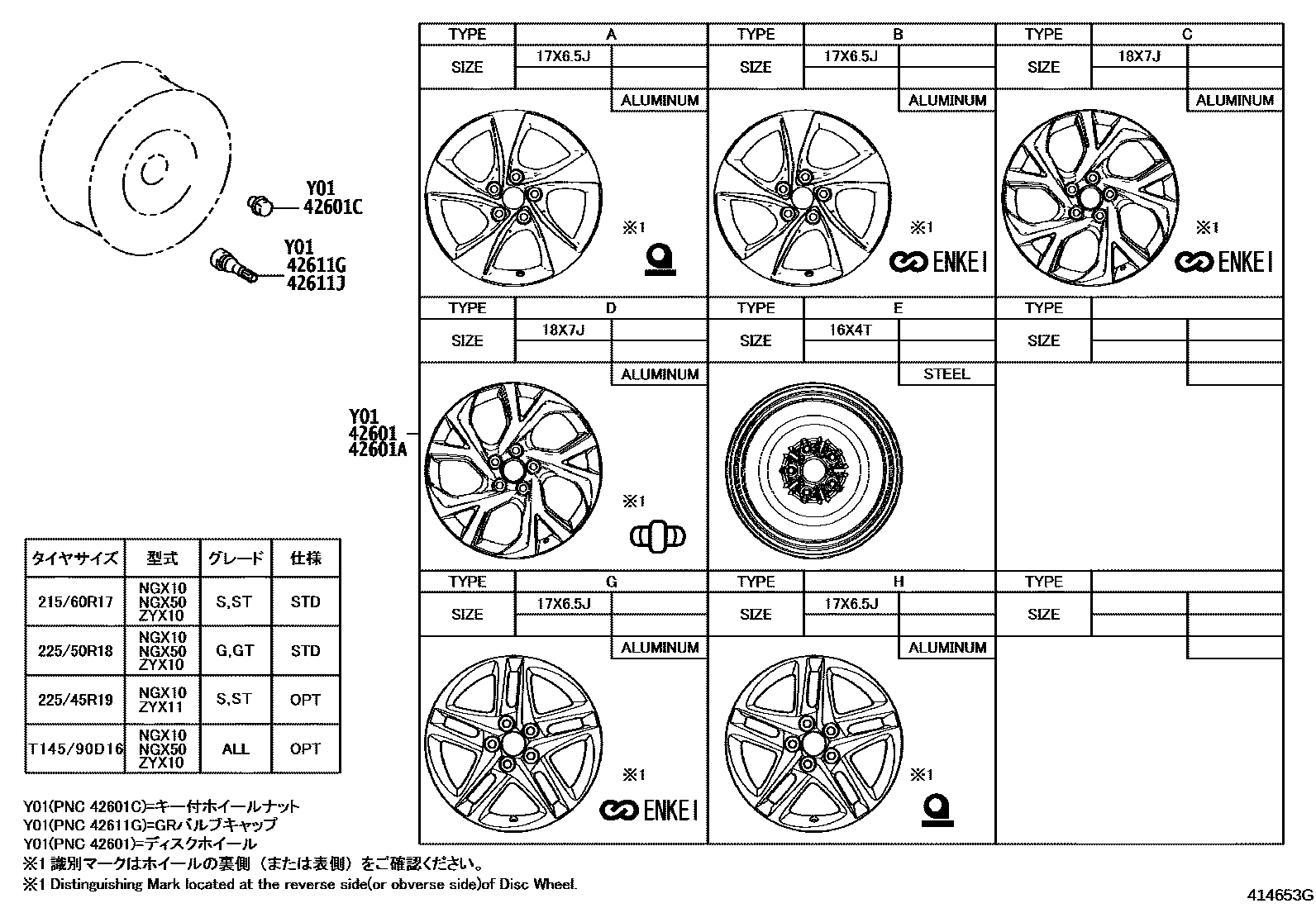

Toyota C-HR — DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-10340iNGX10,50,ZYX10..S,ST¥41,900201612-201910

main42611-10350iNGX10,50,ZYX10..S,ST¥41,900201612-201910

main42611-10360iNGX10,50,ZYX10..G,GT¥42,300201612-201910

main42611-10370iNGX50,ZYX10..G,GT¥45,700201612-201712

sub42611-10371¥45,700

main42611-10371iNGX10,50,ZYX10..G,GT¥45,700201801-201910

main42611-10400iNGX10,50,ZYX11..S,ST¥38,800201910

main42611-10410iNGX10,50,ZYX11..S,ST¥41,900201910

42601AWHEEL, DISC (FOR SPARE)

42601CNUT, HUB (FOR AXLE)

main90942-01033iNGX10,50,ZYX10¥430201612-201910

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iNGX10,50,ZYX10¥390201612-201910

42611JVALVE (FOR TUBELESS TIRE SPARE)

5 parts on this diagram · 3 diagrams in section
