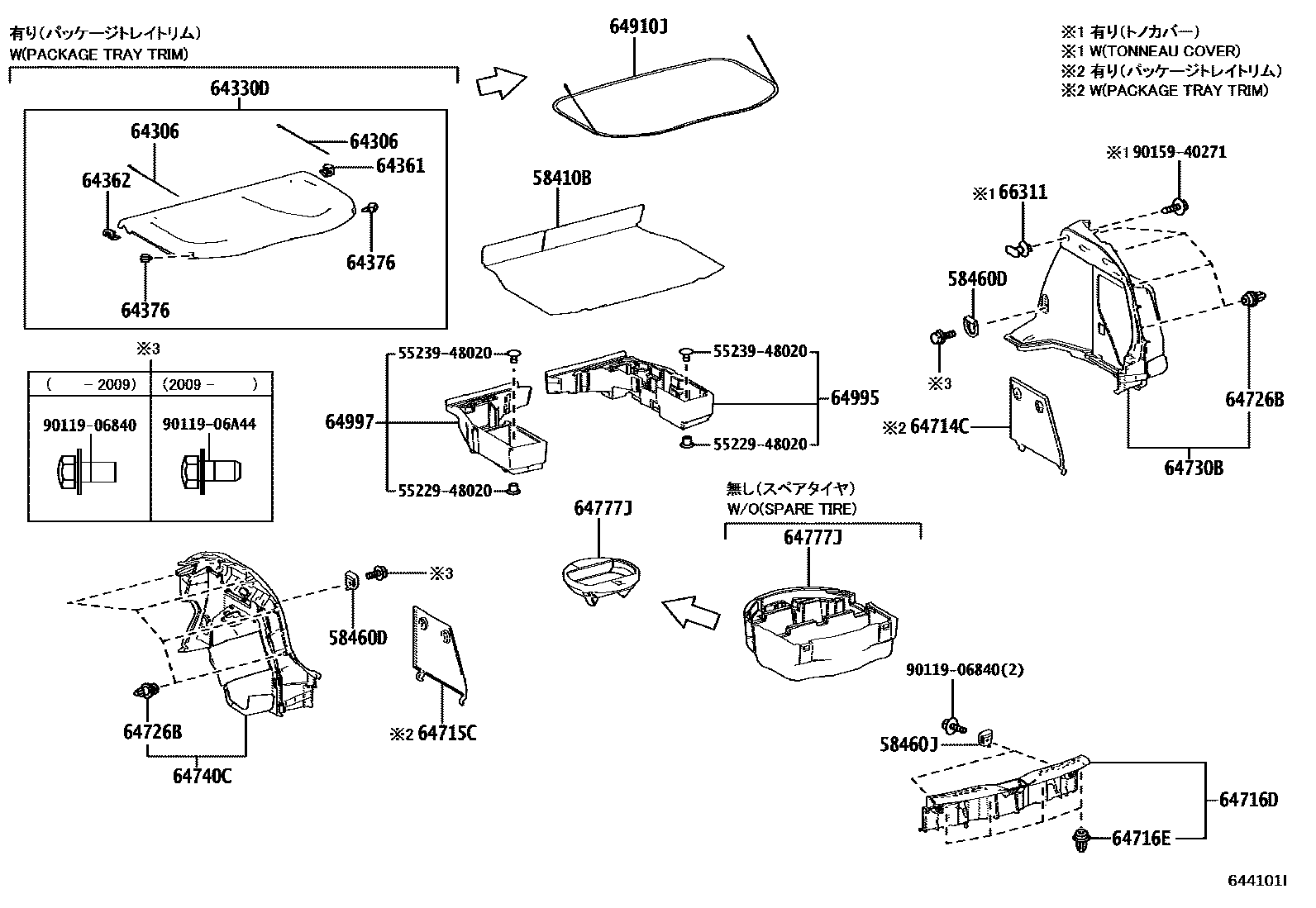

Toyota C-HR — DECK BOARD & DECK TRIM COVER

58410BBOARD ASSY, DECK

main58410-10030-C1iNGX10,50,ZYX10201612-201910

BLACK,TRIM2#

main58410-10030-C1iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iNGX10,50,ZYX10¥620201612-201910

58460JSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iNGX10,50,ZYX10¥620201612-201910

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-10070iNGX50,ZYX10..S,ST¥220201612-201910

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-10270-C2iNGX50,ZYX10201612-201804

BLACK,TRIM2#

sub64330-10271¥9,300

main64330-10271-C2iNGX10,50,ZYX10..G,GT201805-201910

BLACK,TRIM2#

main64330-10271-C2iNGX10,50,ZYX10..G,GT201805-201910

main64330-10271-C2iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#

64361HINGE, PACKAGE TRAY TRIM, RH

main64361-10020-C1iNGX50,ZYX10201612-201805

TRIM2#

sub64361-10021¥310

main64361-10021-C1iNGX10,50,ZYX10..G,GT201805-201910

BLACK,TRIM2#

main64361-10021-C1iNGX10,50,ZYX10..G,GT201805-201910

main64361-10021-C1iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#,8#

64362HINGE, PACKAGE TRAY TRIM, LH

main64362-10040-C1iNGX50,ZYX10201612-201805

TRIM2#

sub64362-10041¥310

main64362-10041-C1iNGX10,50,ZYX10..G,GT201805-201910

BLACK,TRIM2#

main64362-10041-C1iNGX10,50,ZYX10..G,GT201805-201910

main64362-10041-C1iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#,8#

64376SPACER, PACKAGE TRAY TRIM, NO.2

main64376-12020iNGX50,ZYX10..S,ST¥230201612-201910

64714CCOVER, DECK SIDE TRIM, RH

main64714-10250-C2iNGX50,ZYX10..S,ST201612-201910

BLACK,TRIM2#

main64714-10250-C2iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#

64715CCOVER, DECK SIDE TRIM, LH

main64715-10180-C2iNGX50,ZYX10..S,ST201612-201910

BLACK,TRIM2#

main64715-10180-C2iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#

64716DCOVER, DECK TRIM, REAR

main64716-10090-C1iNGX10,50,ZYX10201612-201910

BLACK,TRIM2#

main64716-10090-C1iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#,8#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-10161iNGX10,50,ZYX10¥90201612-201910

64726BCLIP, DECK REAR TRIM

main90467-10161iNGX10,50,ZYX10¥90201612-201910

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-10200-C2iNGX50,ZYX10..S,ST201612-201812

BLACK,TRIM2#

sub64730-10201¥12,900

main64730-10201-C2iNGX10,50,ZYX10..G,GT201901-201910

main64730-10201-C2iNGX10,50,ZYX10..G,GT201901-201910

BLACK,TRIM2#

main64730-10201-C2iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#

main64730-10210-C0iNGX10,50,ZYX10..S,ST201805-201812

BLACK,TRIM2#

sub64730-10211¥12,900

main64730-10211-C0iNGX10,50,ZYX10..S,ST201901-201910

BLACK,TRIM2#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-10130-C2iNGX10,50,ZYX10..G,GT201612-201812

BLACK,TRIM2#

sub64740-10131¥12,900

main64740-10131-C2iNGX10,50,ZYX10..G,GT201901-201910

BLACK,TRIM2#

main64740-10131-C2iNGX10,50,ZYX10..G,GT201901-201910

main64740-10131-C2iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#

main64740-10140-C0iNGX10,50,ZYX10..S,ST201805-201812

BLACK,TRIM2#

sub64740-10141¥12,900

main64740-10141-C0iNGX10,50,ZYX10..S,ST201901-201910

BLACK,TRIM2#

64777JCUSHION, SPARE WHEEL

main64777-10010iNGX10,50,ZYX10¥11,400201612-201910

64910JCOVER ASSY, TONNEAU

main64910-F4010iNGX10,50,ZYX11..S,ST¥5,900201805-201910

64995BOX, DECK FLOOR, RH

main64995-10010iNGX10,50,ZYX10¥4,920201612-201910

64997BOX, DECK FLOOR, LH

main64997-10010iNGX10,50,ZYX10¥4,490201612-201910

66311HOOK, ROPE

main66311-10010-C0iNGX10,50,ZYX11..S,ST201805-201910

BLACK,TRIM2#

5522948020PLATE, DASH PANEL INSULATOR, NO.4

main55229-48020¥110

5523948020SILENCER, STEERING COLUMN HOLE COVER

main55239-48020¥130

9011906840

main90119-06840¥60

9011906A44

main90119-06A44¥60

9015940271

main90159-40271¥60

25 parts on this diagram · 1 diagram in section
