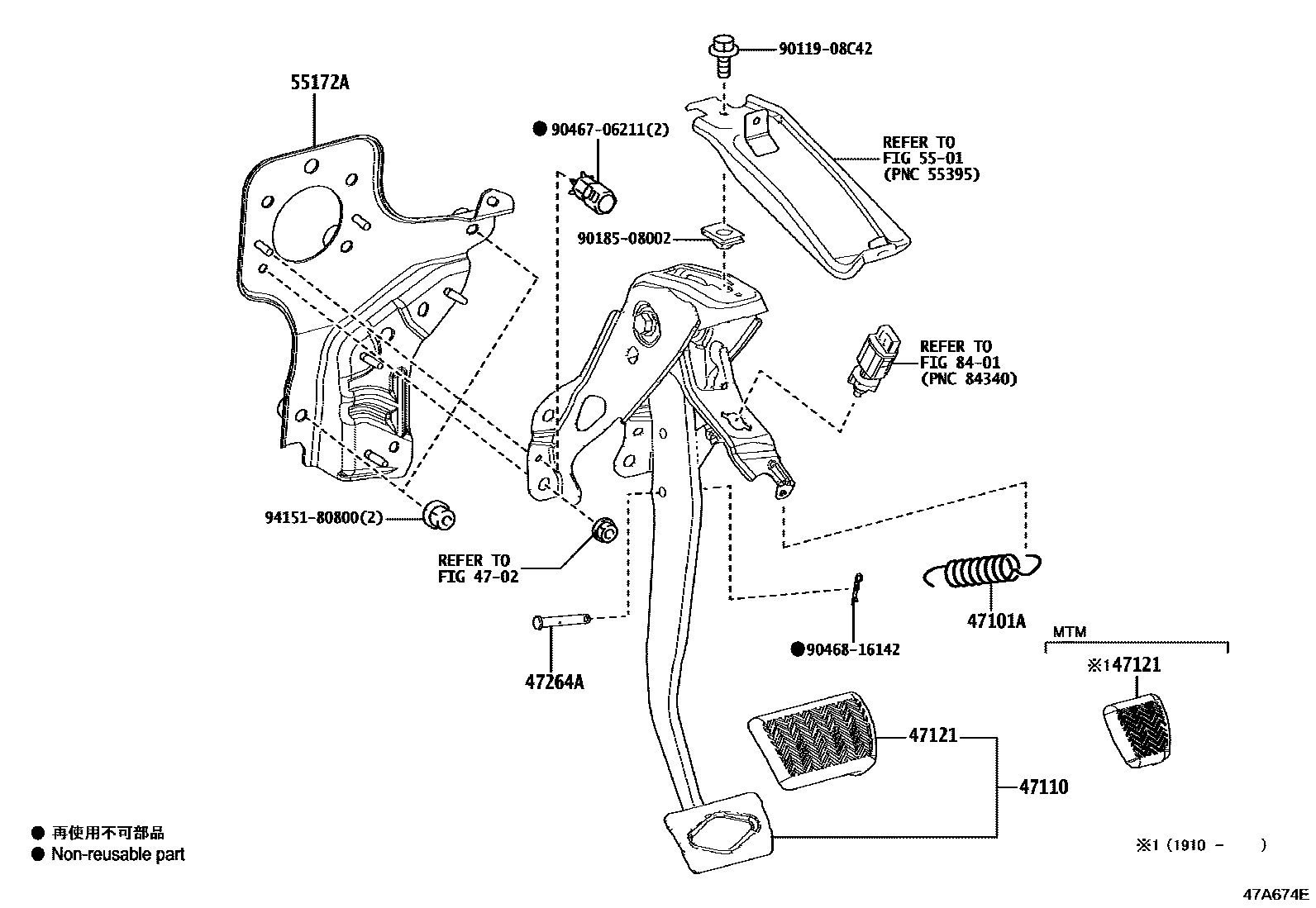

Toyota C-HR — BRAKE PEDAL & BRACKET

0001 1 0002 1

4702

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15010iNGX10,50¥180201612-201910

main90507-16030iZYX10¥180201612-201910

47110SUPPORT ASSY, BRAKE PEDAL

main47110-10030iNGX10,50¥11,400201612-201910

main47110-10040iNGX10,50..CVT¥10,200201910

main47110-10050iZYX10¥6,800201612-201910

main47110-F4080iNGX10..6F¥7,600201910

47121PAD, BRAKE PEDAL

main47121-47010iNGX10,50,ZYX10¥400201612-201910

main47121-F4020iNGX10..6F¥300201910

47264APIN(FOR PUSH ROD)

main90249-06187iNGX10,50¥120201612-201910

main90249-08221iZYX10¥220201612-201910

5501

55172ABASE, BRAKE PEDAL SUPPORT

main55172-10040iNGX10,50,ZYX10¥3,620201612-201910

8401

9011908C42

main90119-08C42¥80

9018508002

main90185-08002¥200

9046706211

main90467-06211¥80

9046816142

main90468-16142¥70

9415180800

main94151-80800¥80

13 parts on this diagram · 2 diagrams in section
