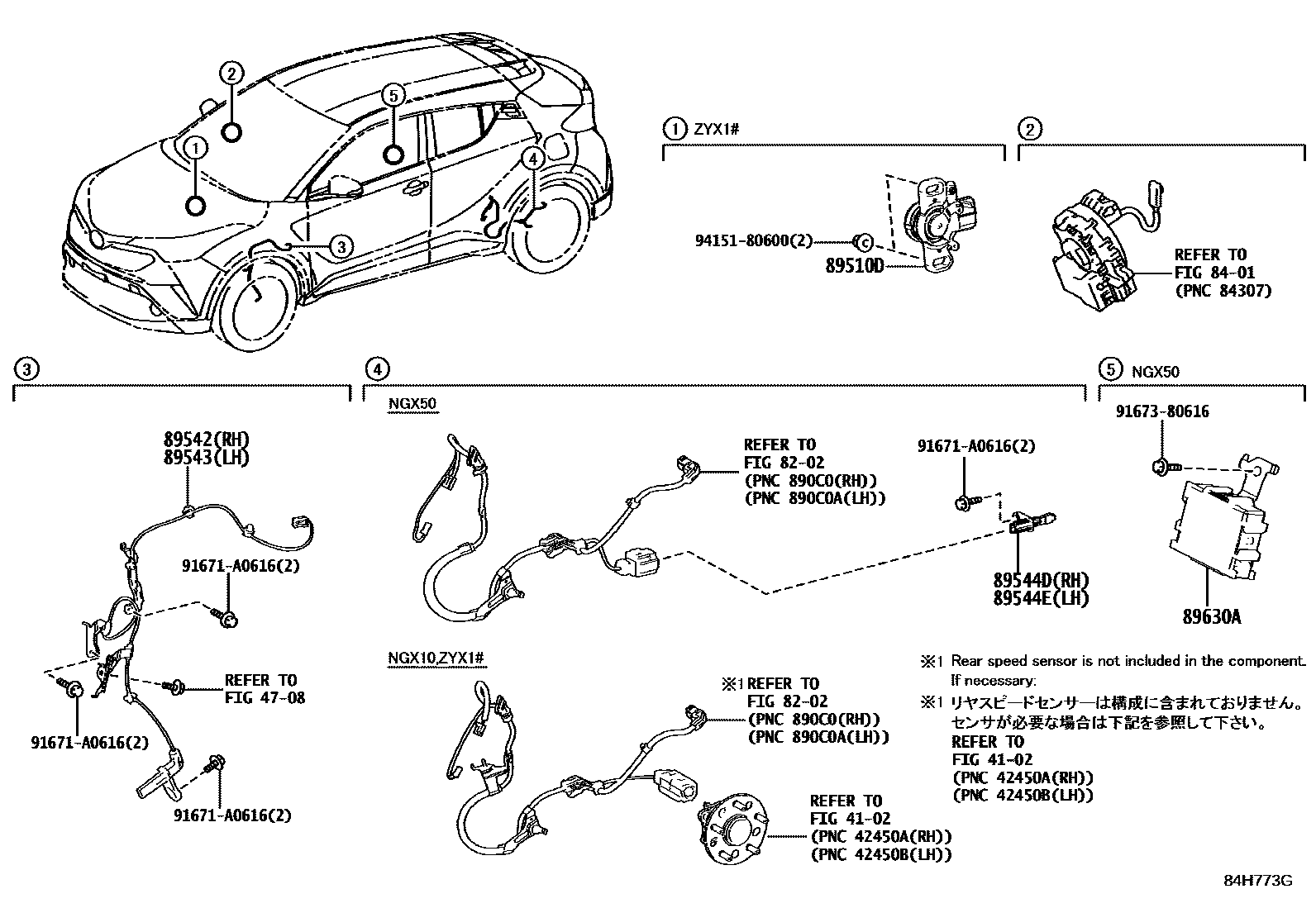

Toyota C-HR — ABS & VSC

4102

4708

8202

8401

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47030iZYX10¥7,900201612-201910

main89510-47030iZYX11¥7,900201910

89542SENSOR, SPEED, FRONT RH

main89542-10040iNGX10,50,ZYX10¥8,100201612-201910

main89542-12130iNGX10,50,ZYX11¥8,100201910

89543SENSOR, SPEED, FRONT LH

main89543-10040iNGX10,50,ZYX10¥8,100201612-201910

main89543-12130iNGX10,50,ZYX11¥8,100201910

89544DSENSOR, SKID CONTROL, REAR RH

main89544-F4020iNGX50¥9,300201612-201910

main89544-F4020iNGX50¥9,300201910

89544ESENSOR, SKID CONTROL, REAR LH

main89544-F4020iNGX50¥9,300201612-201910

main89544-F4020iNGX50¥9,300201910

89630ACOMPUTER ASSY, 4WD

main89630-10020iNGX50¥34,300201612-201910

main89630-10030iNGX50¥21,400201910

91671A0616

main91671-A0616¥60

9167380616

main91673-80616¥60

9415180600

main94151-80600¥60

13 parts on this diagram · 1 diagram in section
