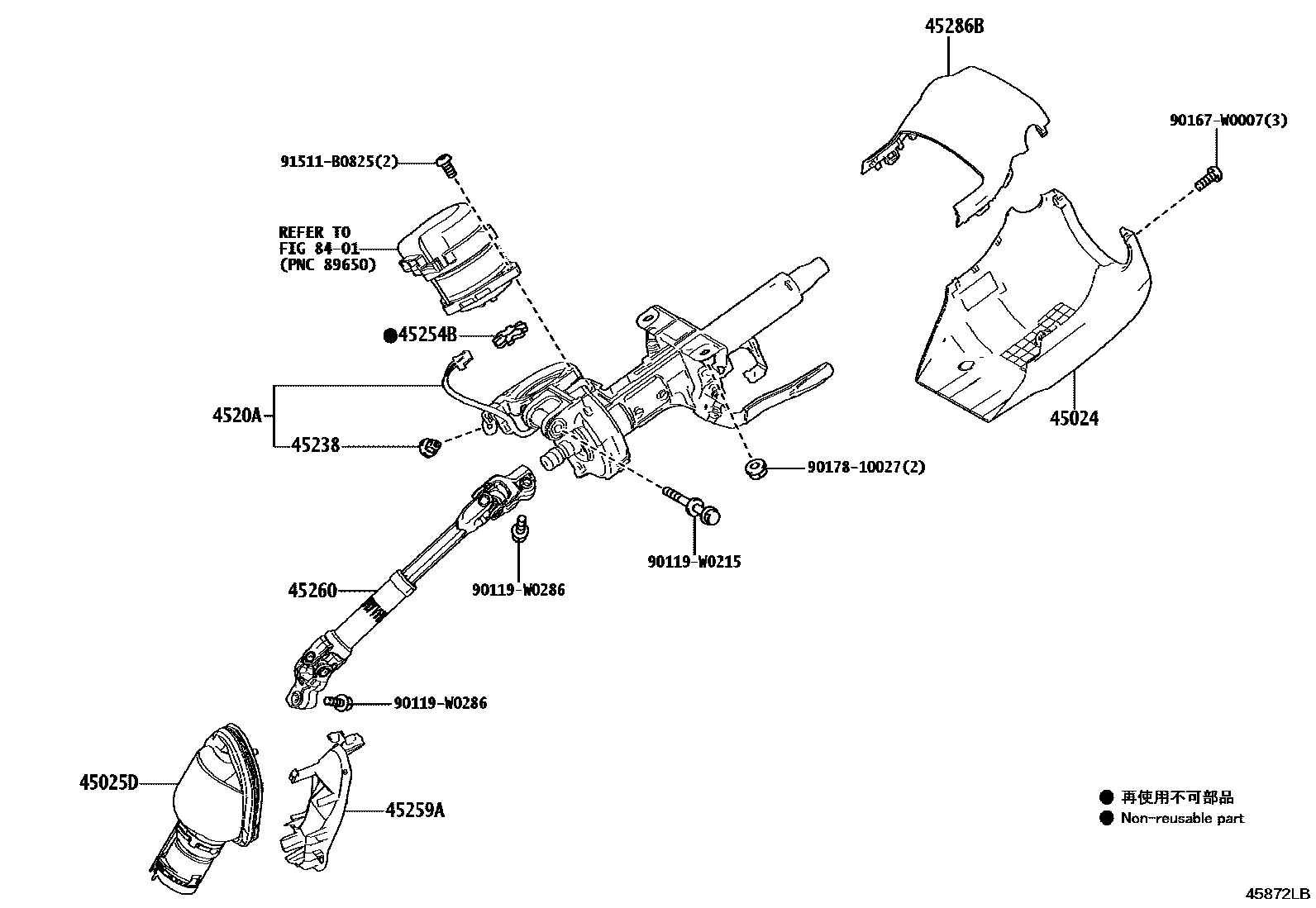

Toyota C-HR — STEERING COLUMN & SHAFT

0001 1 0002 1

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-F4060-C0iMAXH2#,ZYX20202310

BLACK,TRIM2#

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-F4010iMAXH2#,ZYX20..RHD202310-202405

main45025-F4011iMAXH2#,ZYX20..RHD202406

main45025-F4020iMAXH2#,ZYX20..LHD202310-202405

main45025-F4021iMAXH2#,ZYX20..LHD202406

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-F4350iMAXH2#,ZYX20..LHD202310

main4520A-F4360iMAXH2#,ZYX20..RHD202310

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iMAXH2#,ZYX20¥70202310

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iMAXH2#,ZYX20¥220202310

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-F4010iMAXH2#,ZYX20..RHD202310

main45259-F4020iMAXH2#,ZYX20..LHD202310

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-F4010iMAXH2#,ZYX20..LHD202310

main45260-F4020iMAXH2#,ZYX20..RHD202310

45286BCOVER, STEERING COLUMN, UPR

main45286-F4060-C0iMAXH20,25,ZYX20..ARL202310

BLACK,TRIM2#

main45286-F4070-C0iMAXH2#,ZYX20..EUR,TUR202310-202510

BLACK,TRIM2#

8401

90119W0215

main90119-W0215

90119W0286

main90119-W0286

90167W0007

main90167-W0007¥110

9017810027

main90178-10027¥100

91511B0825

main91511-B0825¥140

14 parts on this diagram · 2 diagrams in section
