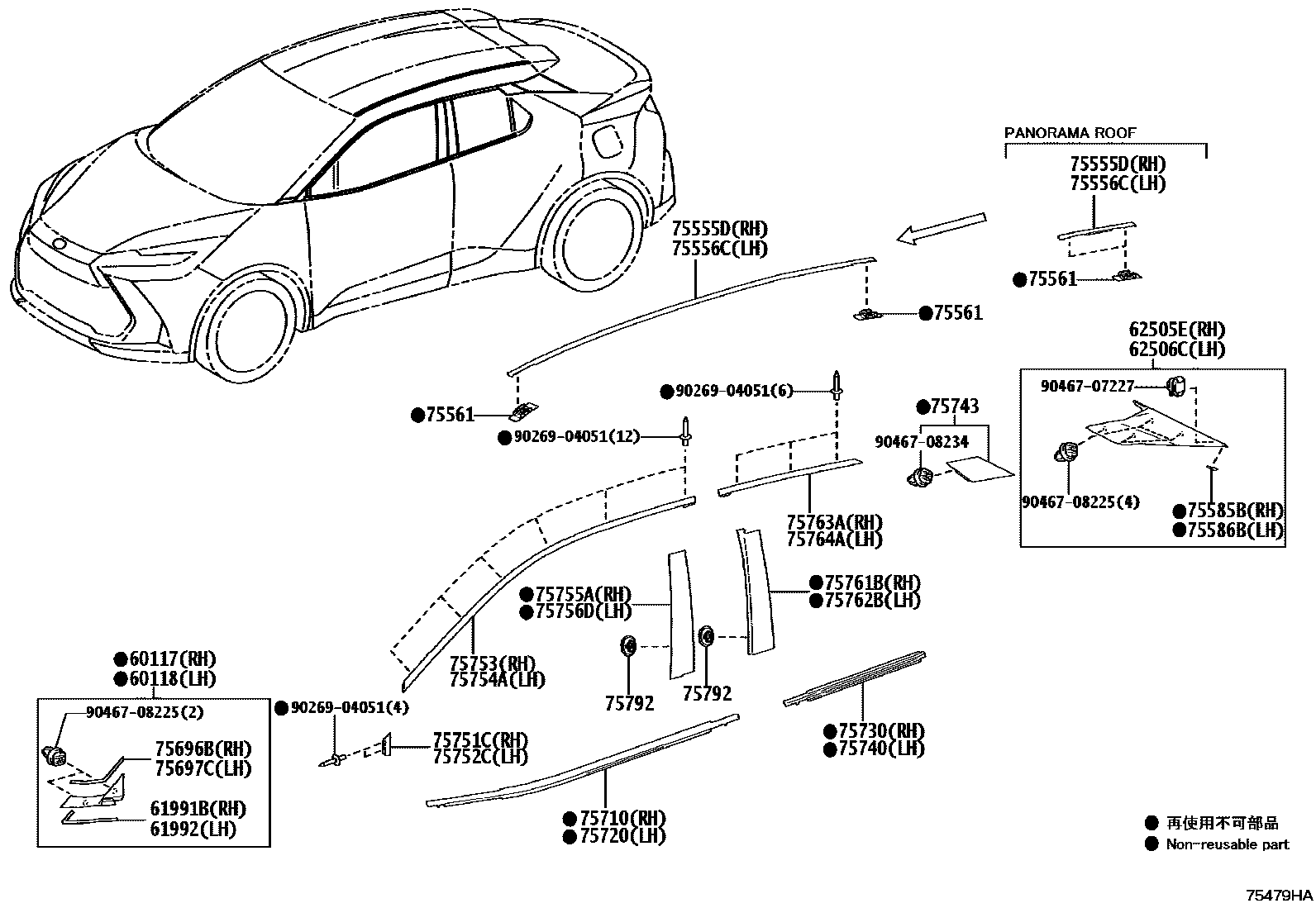

Toyota C-HR — SIDE MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
61991BPROTECTOR, FRONT PILLAR COVER, RH
61992PROTECTOR, FRONT PILLAR COVER, LH
62505ECOVER SUB-ASSY, QUARTER PILLAR, RH
NO PAINT REQ.
62506CCOVER SUB-ASSY, QUARTER PILLAR, LH
NO PAINT REQ.
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75585BPROTECTOR, REAR PILLAR GARNISH, NO.1
75586BPROTECTOR, REAR PILLAR GARNISH, NO.2
75696PAD, BODY OUTSIDE MOULDING, NO.1
75696BPAD, BODY OUTSIDE MOULDING, RH
75697CPAD, BODY OUTSIDE MOULDING, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75743MOULDING, REAR DOOR OUTSIDE, NO.2
NO PAINT REQ.,RH
NO PAINT REQ.,LH
75751CMOULDING, FRONT DOOR WINDOW FRAME, FRONT RH
75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
NO PAINT REQ.
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
NO PAINT REQ.
75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75792CLIP, DOOR WINDOW FRAME MOULDING
9026904051
9046707227
9046708225
9046708234
34 parts on this diagram · 3 diagrams in section
