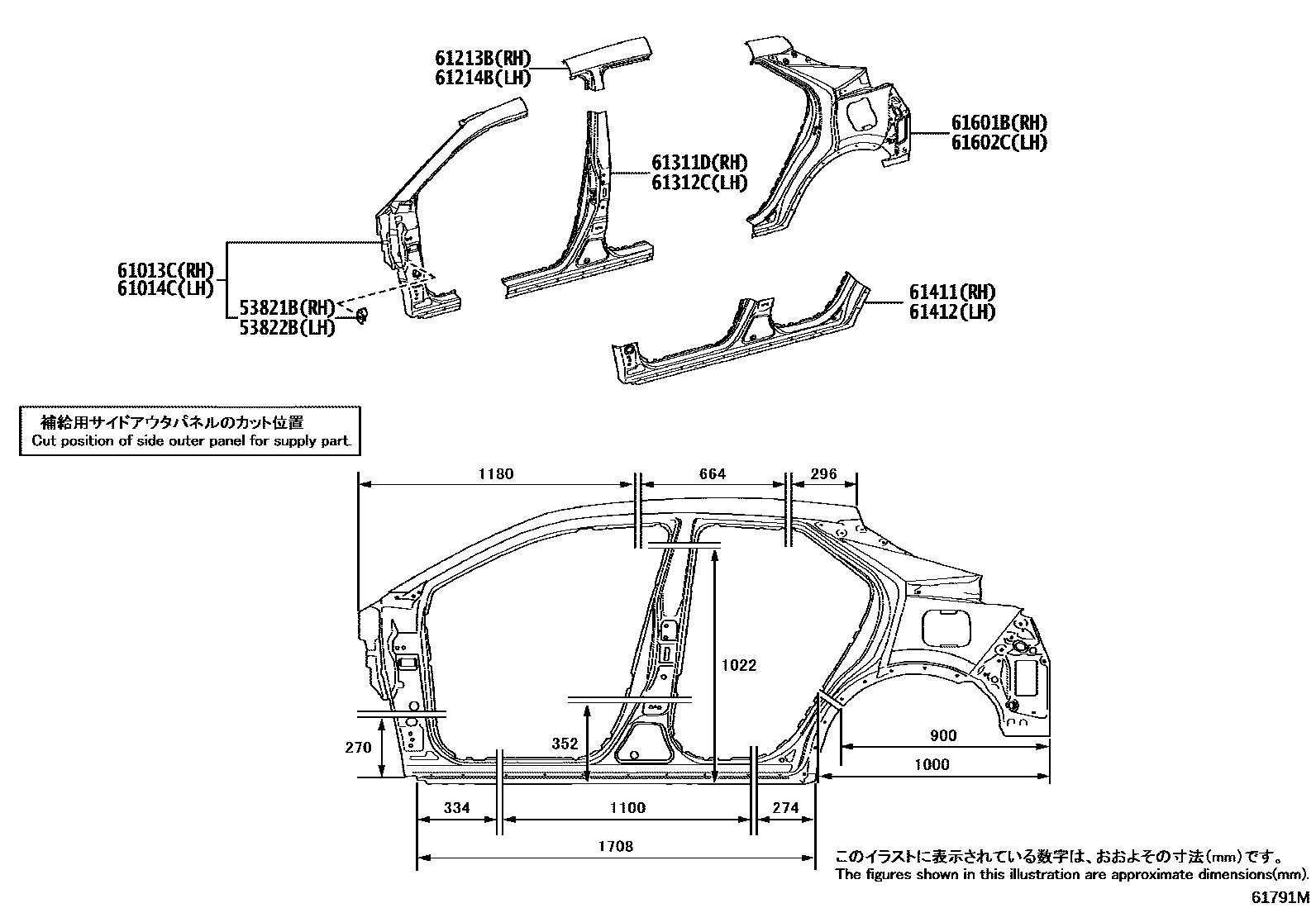

Toyota C-HR — SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-F4030iMAXH2#,ZYX20202310

53822BBRACKET, FRONT FENDER, REAR LH

main53821-F4030iMAXH2#,ZYX20202310

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-F4050iMAXH2#,ZYX20202310

61014CPANEL SUB-ASSY, SIDE, INNER LH

main61014-F4050iMAXH2#,ZYX20202310

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-F4030iMAXH2#,ZYX20202310

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-F4030iMAXH2#,ZYX20202310

61311DPANEL, REAR BODY, FRONT OUTSIDE RH

main61311-F4070iMAXH2#,ZYX20202310

61312CPANEL, REAR BODY FRONT OUTSIDE, LH

main61312-F4070iMAXH2#,ZYX20202310

61411PANEL, ROCKER, OUTER RH

main61411-F4060iMAXH2#,ZYX20202310

61412PANEL, ROCKER, OUTER LH

main61412-F4060iMAXH2#,ZYX20202310

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-F4030iMAXH20,25,ZYX20202310

main61601-F4090iMAXH21202401

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-F4090iMAXH2#,ZYX20202310

12 parts on this diagram · 3 diagrams in section
