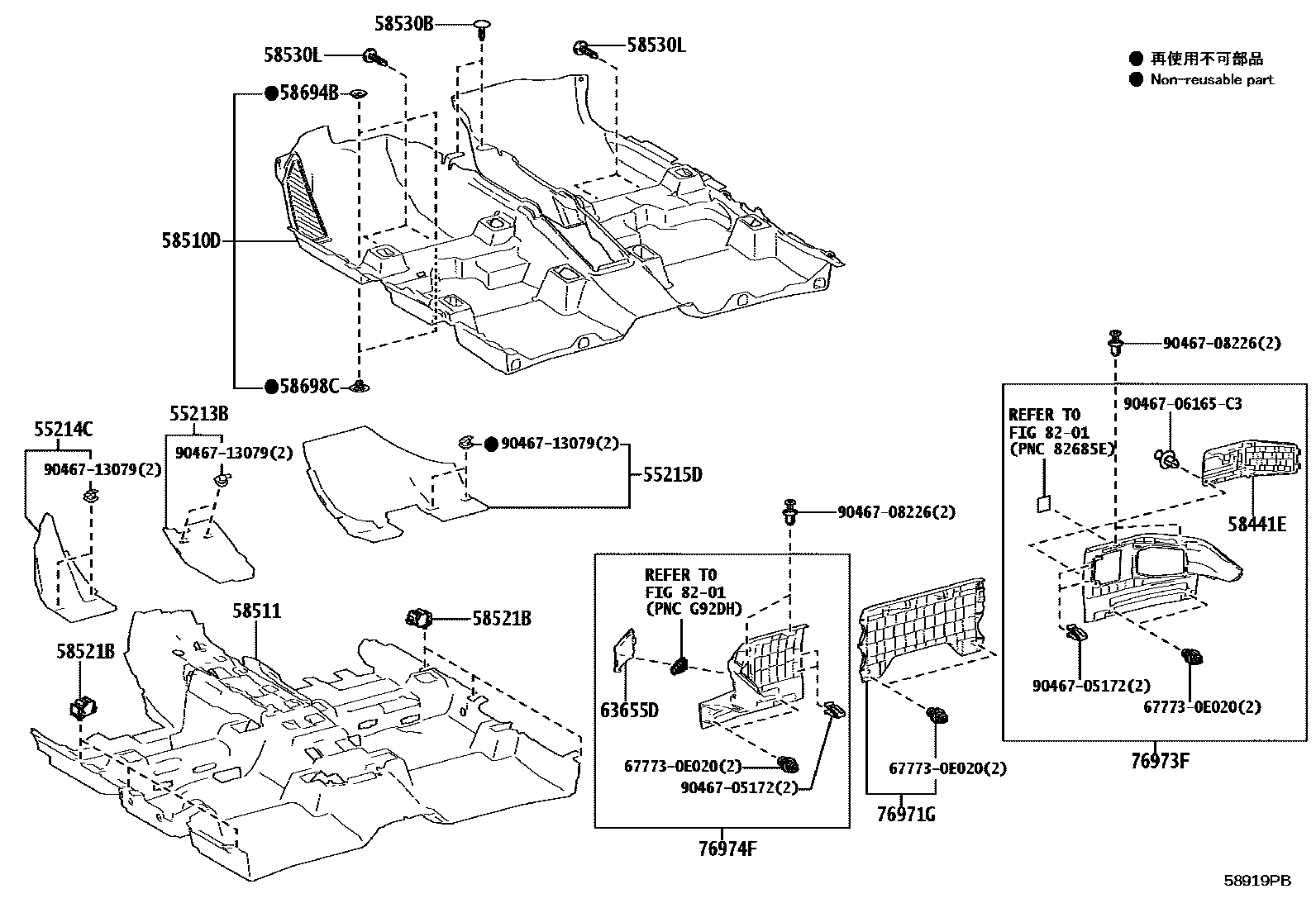

Toyota C-HR — MAT & CARPET

0001 1FLOOR CARPET 0002 1FLOOR CARPET 0003 1FLOOR CARPET 0004 1FLOOR CARPET 0005 1FLOOR MAT 0006 1FLOOR MAT

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-F4010iMAXH20,25,ZYX20..LHD202310

main55213-F4020iMAXH20,25,ZYX20..RHD202310

main55213-F4080iMAXH21..LHD202401

main55213-F4090iMAXH21..RHD202401

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-F4010iMAXH2#,ZYX20..LHD202310

main55214-F4020iMAXH20,25,ZYX20..RHD202310

main55214-F4130iMAXH21..RHD202401

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-F4010iMAXH20,25,ZYX20..LHD202310

main55215-F4020iMAXH20,25,ZYX20..RHD202310

main55215-F4080iMAXH21..LHD202401

main55215-F4090iMAXH21..RHD202401

58441ECOVER, BATTERY SERVICE HOLE

main58441-F4070-C0iMAXH20,25,ZYX20202310

BLACK,TRIM2#

58510DCARPET ASSY, FLOOR, FRONT

main58510-F4130-C1iZYX20..RHD..N202310

BLACK,TRIM2#

main58510-F4150-C1iZYX20..LHD..N202310

BLACK,TRIM2#

main58510-F4390-C1iMAXH20,25,ZYX20..RHD..(E,G,K)202310

BLACK,TRIM2#

main58510-F4410-C1iMAXH20,25,ZYX20..LHD..(E,G,K)202310

BLACK,TRIM2#

main58510-F4430-C1iMAXH21..RHD202401

BLACK,TRIM2#

main58510-F4440-C1iMAXH21..LHD202401

BLACK,TRIM2#

58511MAT, FLOOR, FRONT

main58511-F4100iMAXH20,25,ZYX20..ARL,EUR202310

main58511-F4110iZYX20..TUR202310

COLD AREA SPEC

main58511-F4110iZYX20..TUR202310

SUB COLD AREA SPEC

main58511-F4150iMAXH21202401

58521BHOOK, FLOOR CARPET

main58521-02160iMAXH2#,ZYX20202310

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-W0006-C4iMAXH2#,ZYX20202310

BLACK,TRIM2#

sub90467-W0006¥130

58530LCLIP, FLOOR CARPET, CENTER

main64726-10020-C2iMAXH20,25,ZYX20202310

BLACK,TRIM2#

main90467-07226-C0iMAXH21202401

BLACK,TRIM2#

58694BPLATE, MAT SET, UPPER

main58694-78010iMAXH2#,ZYX20¥130202310

58698CPLATE, MAT SET, LOWER

main58698-78010iMAXH2#,ZYX20¥230202310

63655DCOVER, AIR INTAKE

main58451-F4010-C0iMAXH2#,ZYX20202310

BLACK,TRIM2#

76971GCOVER, REAR UNDER

main76971-F4050-C0iMAXH20,25,ZYX20202310

BLACK,TRIM2#

main76971-F4080-C0iMAXH21202401

BLACK,TRIM2#

76973FCOVER, REAR UNDER SIDE, RH

main76973-F4050-C0iMAXH20,25,ZYX20202310

BLACK,TRIM2#

main76973-F4060-C0iMAXH21202401

BLACK,TRIM2#

76974FCOVER, REAR UNDER SIDE, LH

main76974-F4060-C0iMAXH20,25,ZYX20202310

BLACK,TRIM2#

main76974-F4070-C0iMAXH21202401

BLACK,TRIM2#

8201

677730E020

main67773-0E020¥100

9046705172

main90467-05172¥60

9046706165C3

main90467-06165C3

9046708226

main90467-08226¥100

9046713079

main90467-13079¥120

21 parts on this diagram · 6 diagrams in section
