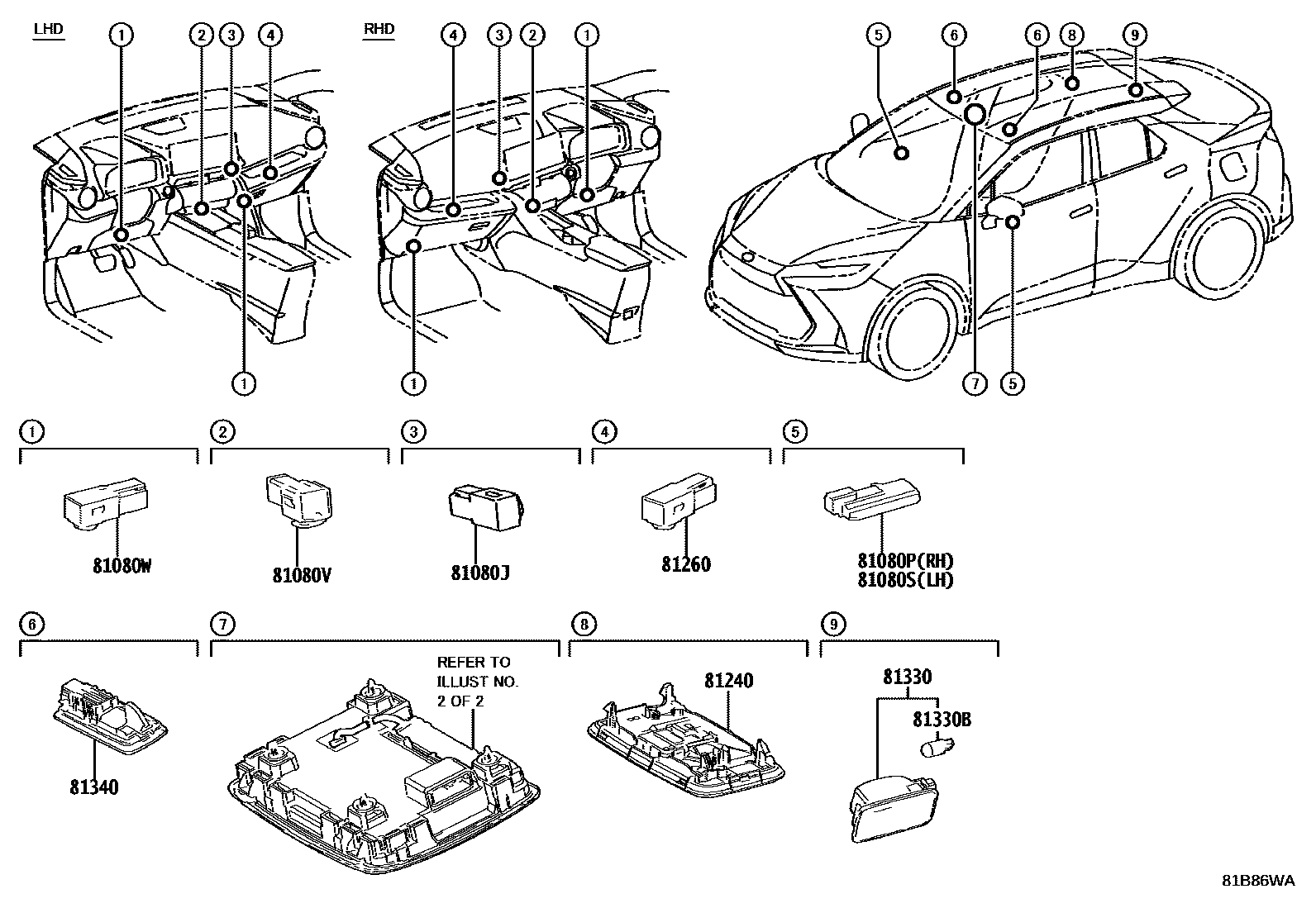

Toyota C-HR — INTERIOR LAMP

0001 1 0002 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-02040iMAXH2#,ZYX20..E,G,K202310

81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-F4070iMAXH21..K;MAXH20,25,ZYX20..(G,K)..(EUR,TUR)¥1,470202310

81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81090-F4060iMAXH21..K;MAXH20,25,ZYX20..(G,K)..(EUR,TUR)¥1,470202310

81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81080-12100iMAXH2#,ZYX20..E,G,K¥920202310

81080WLAMP ASSY, INTERIOR ILLUMINATION, NO.3

main81080-02040iMAXH2#,ZYX20..E,G,K202310

81240LAMP ASSY, ROOM, NO.1

main81240-02110-C0iMAXH2#,ZYX20202310

BLACK,TRIM2#

81260LAMP ASSY, GLOVE BOX

main81080-02040iMAXH2#,ZYX20202310

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-02060iMAXH2#,ZYX20¥2,680202310

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-WB021iMAXH2#,ZYX20¥110202310

12V 5W

81340LAMP ASSY, VANITY

main81340-33170iMAXH2#,ZYX20¥990202310

10 parts on this diagram · 2 diagrams in section
