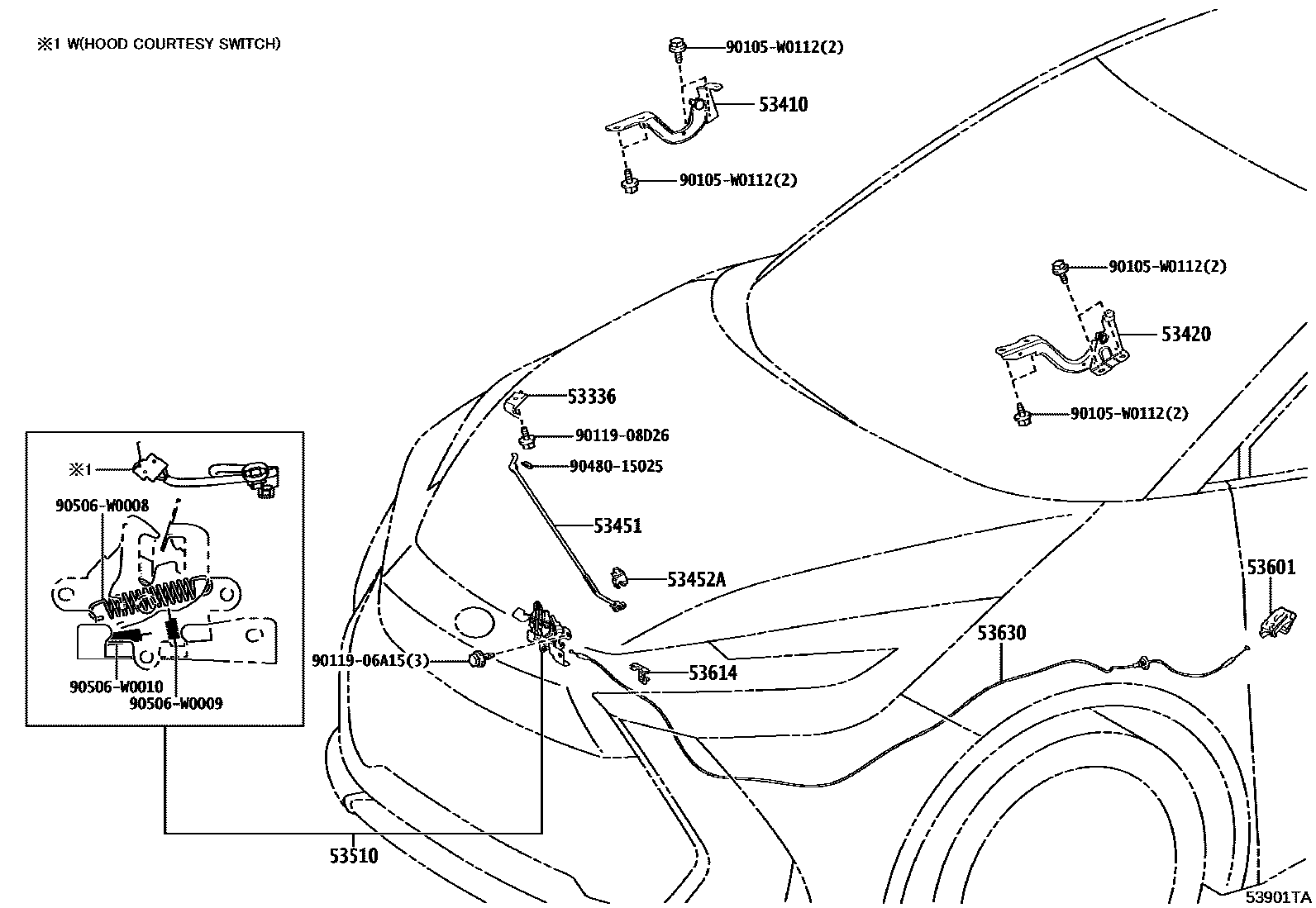

Toyota C-HR — HOOD LOCK & HINGE

0001 1 0002 1

53336BRACKET, HOOD STAY, RH

main53336-F4040iMAXH2#,ZYX20202310

53410HINGE ASSY, HOOD, RH

main53410-F4130iMAXH2#,ZYX20202310

53420HINGE ASSY, HOOD, LH

main53420-F4130iMAXH2#,ZYX20202310

53451ROD, HOOD SUPPORT

main53440-F4040iMAXH2#,ZYX20202310

53452AHOLDER, HOOD STAY

main53452-15020iMAXH2#,ZYX20¥340202408

main53452-K0010iMAXH2#,ZYX20202310-202407

53510LOCK ASSY, HOOD

main53510-F4090iMAXH2#,ZYX20..RHD202310

main53510-F4100iMAXH21..LHD202401

main53510-F4120iMAXH20,25,ZYX20..LHD202310

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-F4020-C0iMAXH2#,ZYX20202310

BLACK,TRIM2#

sub53601-F4020¥1,860

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-F4010iMAXH2#,ZYX20202310

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-F4060iMAXH20,25,ZYX20..RHD202310

main53630-F4070iMAXH2#,ZYX20..LHD202310

main53630-F4110iMAXH21..RHD202401

90105W0112

main90105-W0112

9011906A15

main90119-06A15¥60

9011908D26

main90119-08D26¥80

9048015025

main90480-15025¥220

90506W0008

main90506-W0008

90506W0009

main90506-W0009

90506W0010

main90506-W0010

16 parts on this diagram · 2 diagrams in section
