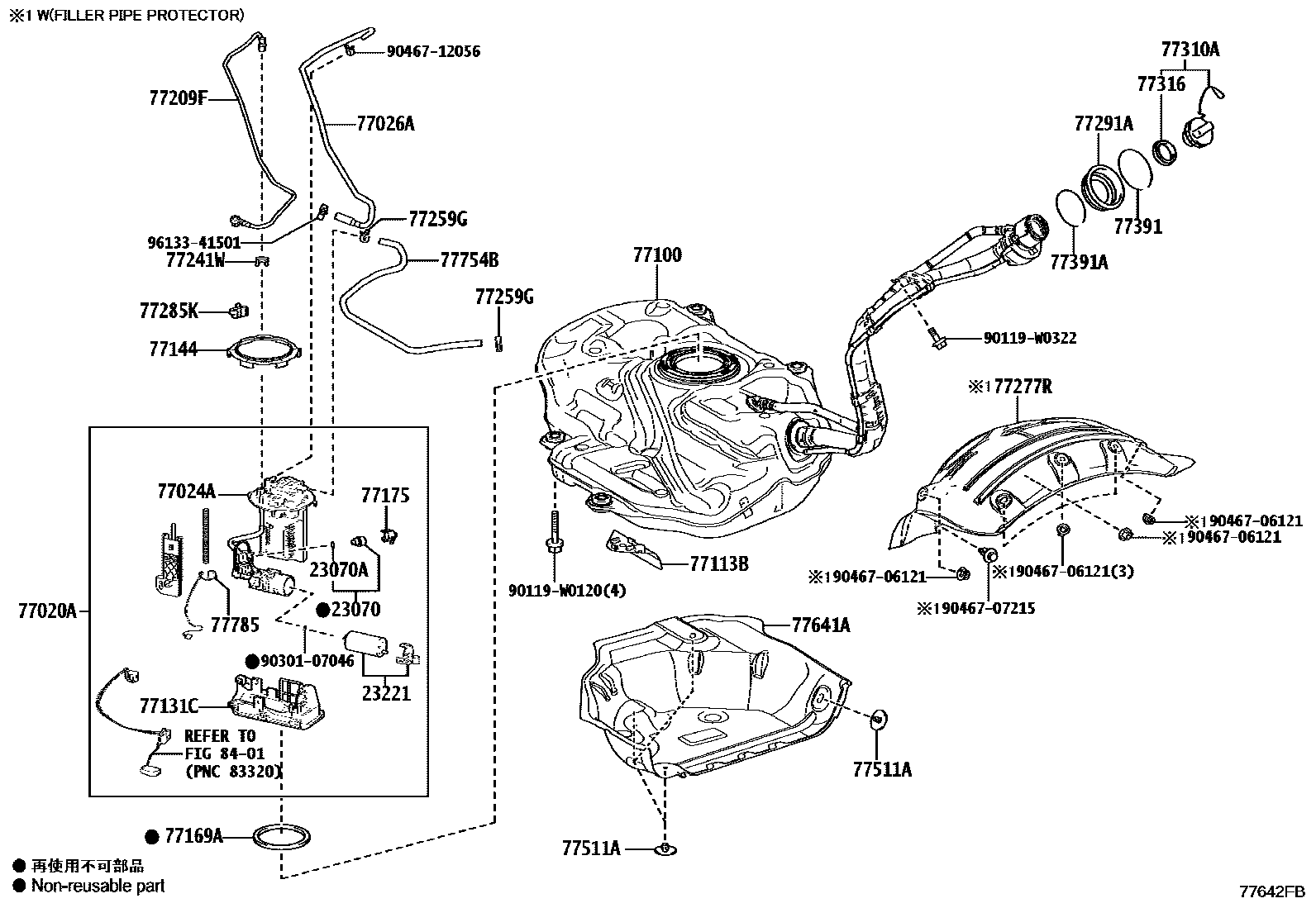

Toyota C-HR — FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TUBE 0005 1FUEL TUBE 0006 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-24010iM20..MAXH2#¥2,560202310

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-15024iM20..MAXH2#¥140202310

23221PUMP, FUEL

main23210-0T010i2ZR..ZYX20202310

main23210-0T040iM20..MAXH2#202310

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-02C21iZYX20202310

main77020-02C50iMAXH20,25202310

main77020-F4120iMAXH21202401

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-02540iMAXH20,25202310

main77024-02570iZYX20202310

main77024-F4120iMAXH21202401

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-02150iMAXH20,25,ZYX20202310

77100TANK ASSY, FUEL

main77001-F4120iMAXH20,25,ZYX20202310

main77001-F4140iMAXH21202401

77113BPLATE, FUEL TANK SIDE

main77113-F4010iMAXH20,25,ZYX20202310

77131CSUB-TANK, FUEL, NO.1

main77103-K0030iMAXH2#202310

main77103-K0040iZYX20202310

77144RETAINER, FUEL PUMP GAUGE

main77144-F4010iMAXH2#,ZYX20202310

77169AGASKET, FUEL SUCTION TUBE SET

main77169-F4010iMAXH21202401

main77169-F4050iMAXH20,25,ZYX20202310

77175SUPPORT, FUEL SUCTION, NO.2

main77175-02050iMAXH20,25202310

main77175-76010iMAXH21¥510202401

main77175-F4010iZYX20202310

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02380iMAXH20,25,ZYX20202310

main77209-F4140iMAXH21202401

77241WCLIP, TUBE JOINT

main77241-32060iMAXH20,25,ZYX20¥80202310

main77241-32060iMAXH21¥80202401

77259GCLIP, FUEL HOSE

main90466-W0006iMAXH20,25,ZYX20¥100202310

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-F4030iZYX20..N202310

77285KCLAMP, FUEL TUBE, NO.1

main77285-30350iMAXH2#,ZYX20¥200202310

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-F4011iMAXH2#,ZYX20202310

77310ACAP ASSY, FUEL TANK

main77300-12020iMAXH20,25,ZYX20¥1,660202310

main77300-33040iMAXH21¥2,370202401

77316GASKET, FUEL TANK CAP

main77316-52040iMAXH20,25,ZYX20¥230202310

main77316-75020iMAXH21¥200202401

77391RING, FUEL INLET BOX

main77391-75010iMAXH2#,ZYX20¥170202310

77391ARING, FUEL INLET BOX

main77391-12020iMAXH2#,ZYX20¥180202310

77511ABRACKET, FUEL TANK

main77512-35140iMAXH2#,ZYX20¥230202310

77641APROTECTOR, FUEL TANK, NO.1

main77641-F4090iMAXH20,25,ZYX20202310

main77641-F4100iMAXH21202401

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-02190iMAXH20,25,ZYX20202310

77785HARNESS, FUEL PUMP

main77785-02160iZYX20202310

main77785-76010iMAXH2#¥870202310

8401

90119W0120

main90119-W0120

90119W0322

main90119-W0322

9030107046

main90301-07046¥170

9046706121

main90467-06121¥220

9046707215

main90467-07215¥80

9046712056

main90467-12056¥70

9613341501

main96133-41501¥90

34 parts on this diagram · 6 diagrams in section
