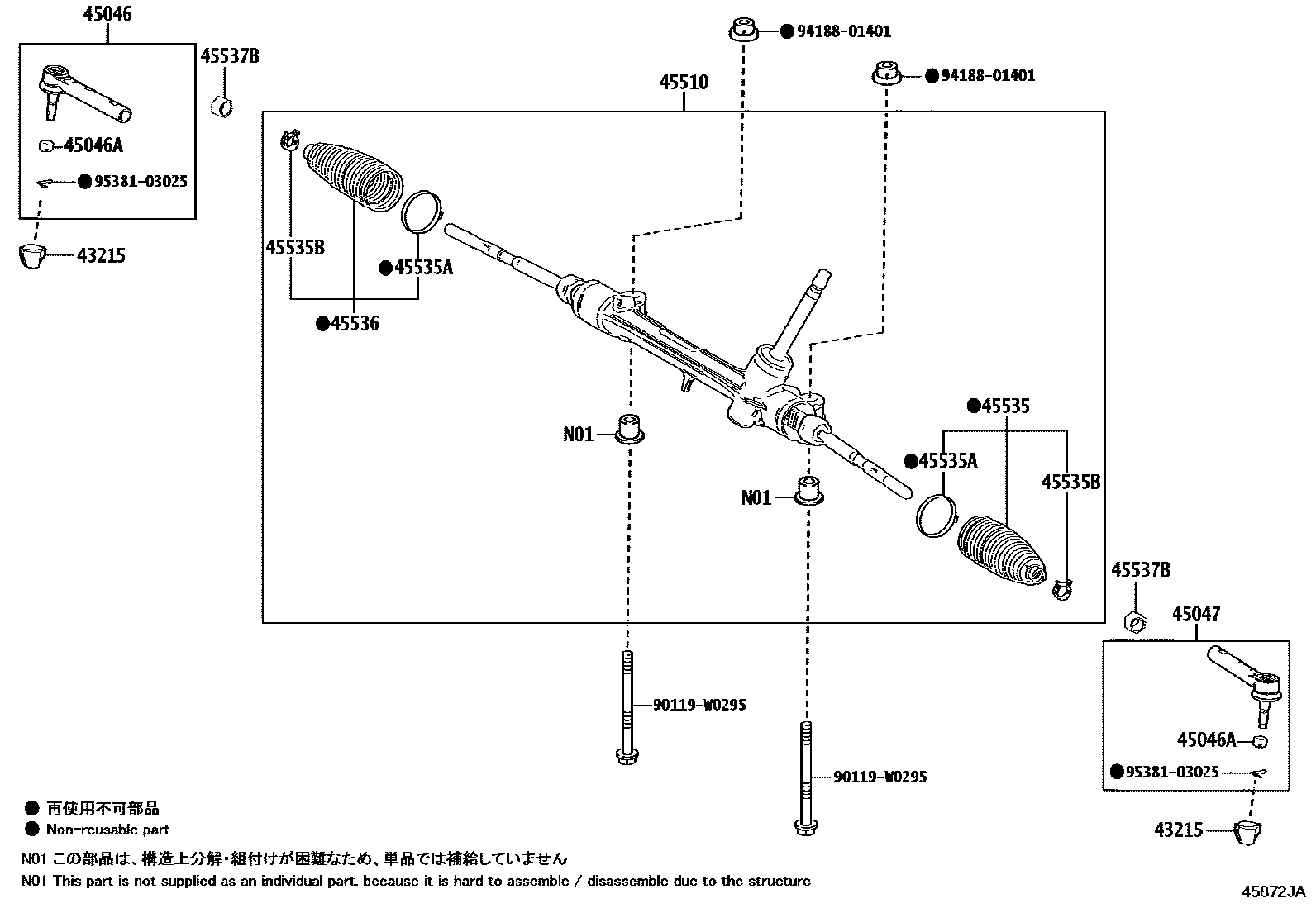

Toyota C-HR — FRONT STEERING GEAR & LINK

0001 1 0002 1

43215SEAL, STEERING KNUCKLE

main43215-12010iMAXH2#,ZYX20¥210202310

45046END SUB-ASSY, TIE ROD, RH

main45046-F9020iMAXH2#,ZYX20202310

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMAXH2#,ZYX20¥130202310

45047END SUB-ASSY, TIE ROD, LH

main45046-F9020iMAXH2#,ZYX20202310

45510GEAR ASSY, STEERING

main45510-F4070iMAXH20,25,ZYX20..LHD202310

main45510-F4080iMAXH20,25,ZYX20..RHD202310

main45510-F4090iMAXH21..LHD202401

main45510-F4100iMAXH21..RHD202401

45535BOOT, STEERING RACK, NO.1

main45535-F9010iMAXH2#,ZYX20202310-202404

main45535-F9011iMAXH2#,ZYX20202405

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-F4010iMAXH2#,ZYX20202310-202404

main45538-F4011iMAXH2#,ZYX20202405

45535BCLIP(FOR STEERING RACK BOOT)

main45537-02010iMAXH2#,ZYX20¥200202310

45536BOOT, STEERING RACK, NO.2

main45535-F9010iMAXH2#,ZYX20202310-202404

main45535-F9011iMAXH2#,ZYX20202405

45537BNUT, RACK END LOCK

main90178-16001iMAXH2#,ZYX20¥120202310

90119W0295

main90119-W0295

9418801401

main94188-01401¥190

9538103025

main95381-03025¥130

13 parts on this diagram · 2 diagrams in section
