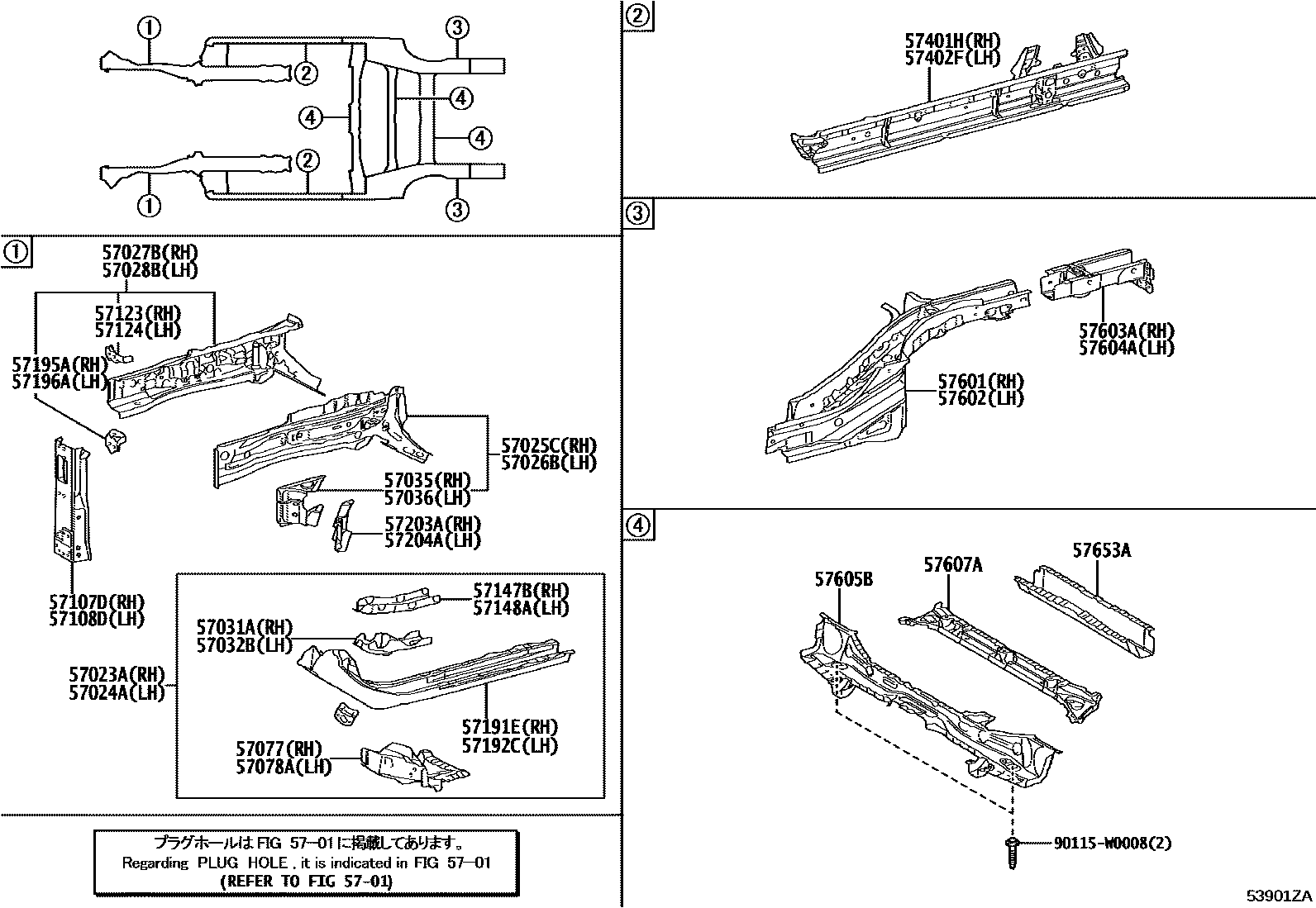

Toyota C-HR — FLOOR SIDE MEMBER

0001 1 0002 1

5701

57023AMEMBER SUB-ASSY, REAR SIDE, RH

main57023-F4080iMAXH21202401

main57023-F4090iMAXH20,25,ZYX20202310

57024AMEMBER SUB-ASSY, REAR SIDE, LH

main57024-F4080iMAXH21202401

main57024-F4090iMAXH20,25,ZYX20202310

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-F4011iMAXH2#,ZYX20202310

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-F4011iMAXH2#,ZYX20202310

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-F4011iMAXH2#,ZYX20202310

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-F4010iMAXH2#,ZYX20202310

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-F4010iMAXH20,25,ZYX20202310

main57031-F4070iMAXH21202401

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-F4010iMAXH20,25,ZYX20202310

main57032-F4070iMAXH21202401

57035PANEL SUB-ASSY, FRONT STEP, RH

main57035-F4011iMAXH2#,ZYX20202310

57036PANEL SUB-ASSY, FRONT STEP, LH

main57036-F4011iMAXH2#,ZYX20202310

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-F4070iMAXH2#,ZYX20202310

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-F4070iMAXH2#,ZYX20202310

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-F4010iMAXH2#,ZYX20202310

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-F4010iMAXH2#,ZYX20202310

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-F4010iMAXH2#,ZYX20202310

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-F4010iMAXH2#,ZYX20202310

57147BPLATE, FRONT SIDE MEMBER, REAR RH

main57147-F4010iMAXH20,25,ZYX20202310

main57147-F4070iMAXH21202401

57148APLATE, FRONT SIDE MEMBER, REAR LH

main57148-F4010iMAXH20,25,ZYX20202310

main57148-F4070iMAXH21202401

57191EMEMBER SUB-ASSY, FRONT SIDE, INNER REAR RH

main57191-F4010iMAXH20,25,ZYX20202310

57192CMEMBER SUB-ASSY, FRONT SIDE, INNER REAR LH

main57192-F4010iMAXH20,25,ZYX20202310

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-F4010iMAXH2#,ZYX20202310

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-F4010iMAXH2#,ZYX20202310

57203AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57203-F4011iMAXH2#,ZYX20202310

57204AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57204-F4011iMAXH2#,ZYX20202310

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-F4050iMAXH21202401

main57401-F4080iMAXH20,25,ZYX20202310

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-F4050iMAXH21202401

main57402-F4080iMAXH20,25,ZYX20202310

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-F4010iMAXH2#,ZYX20¥27,600202310

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-F4010iMAXH2#,ZYX20¥27,600202310

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-F4010iMAXH2#,ZYX20202310

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-F4010iMAXH2#,ZYX20202310

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-F4010iMAXH20,25,ZYX20202310

main57605-F4110iMAXH21202401

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-F4010iMAXH2#,ZYX20202310

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-F4010iMAXH2#,ZYX20202310

90115W0008

main90115-W0008¥60

35 parts on this diagram · 2 diagrams in section
