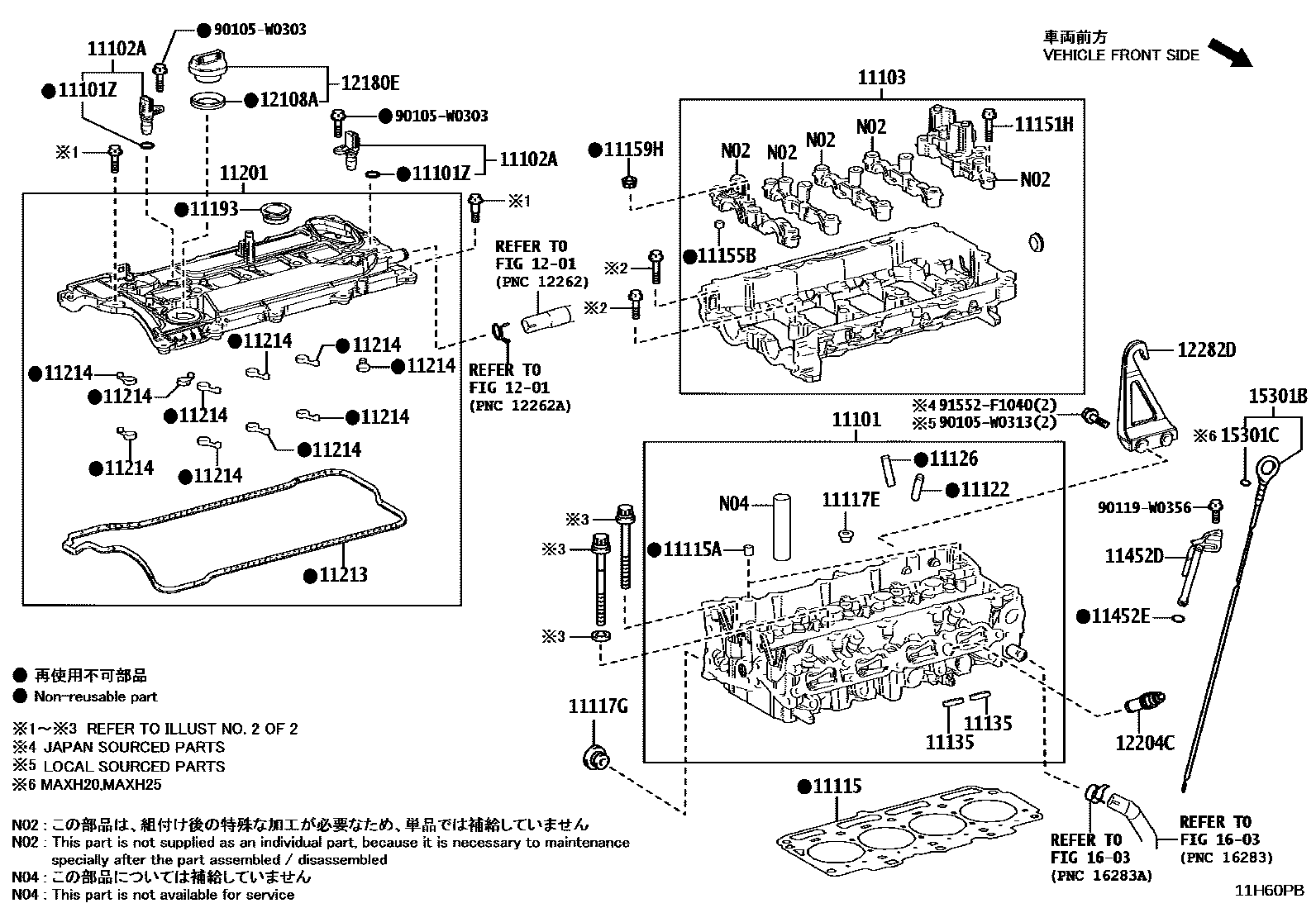

Toyota C-HR — CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
(L)
(J)
11101ZO RING, CAM POSITION SENSOR
11102ASENSOR, CAMSHAFT POSITION
11103HOUSING SUB-ASSY, CAMSHAFT
(L)
(J)
11115GASKET, CYLINDER HEAD
11115APIN, RING
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11135SEAT, EXHAUST VALVE
STD
STD
O/S 0.03
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
11155BPIN, RING
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11193GASKET, SPARK PLUG TUBE
11201COVER SUB-ASSY, CYLINDER HEAD
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
11452DGUIDE, OIL LEVEL GAGE
11452ERING, O(FOR OIL LEVEL GAGE GUIDE)
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12180ECAP ASSY, OIL FILLER
12204CVALVE SUB-ASSY, VENTILATION
(J)
(L)
12282DHANGER, ENGINE, NO.2
(L)
PAINTED=GREEN
PAINTED=BROWN
(J)
15301CRING, O(FOR OIL LEVEL GAGE)
1603
90105W0303
main90105-W0303
90105W0313
main90105-W0313
90119W0356
main90119-W0356
91552F1040
33 parts on this diagram · 4 diagrams in section
