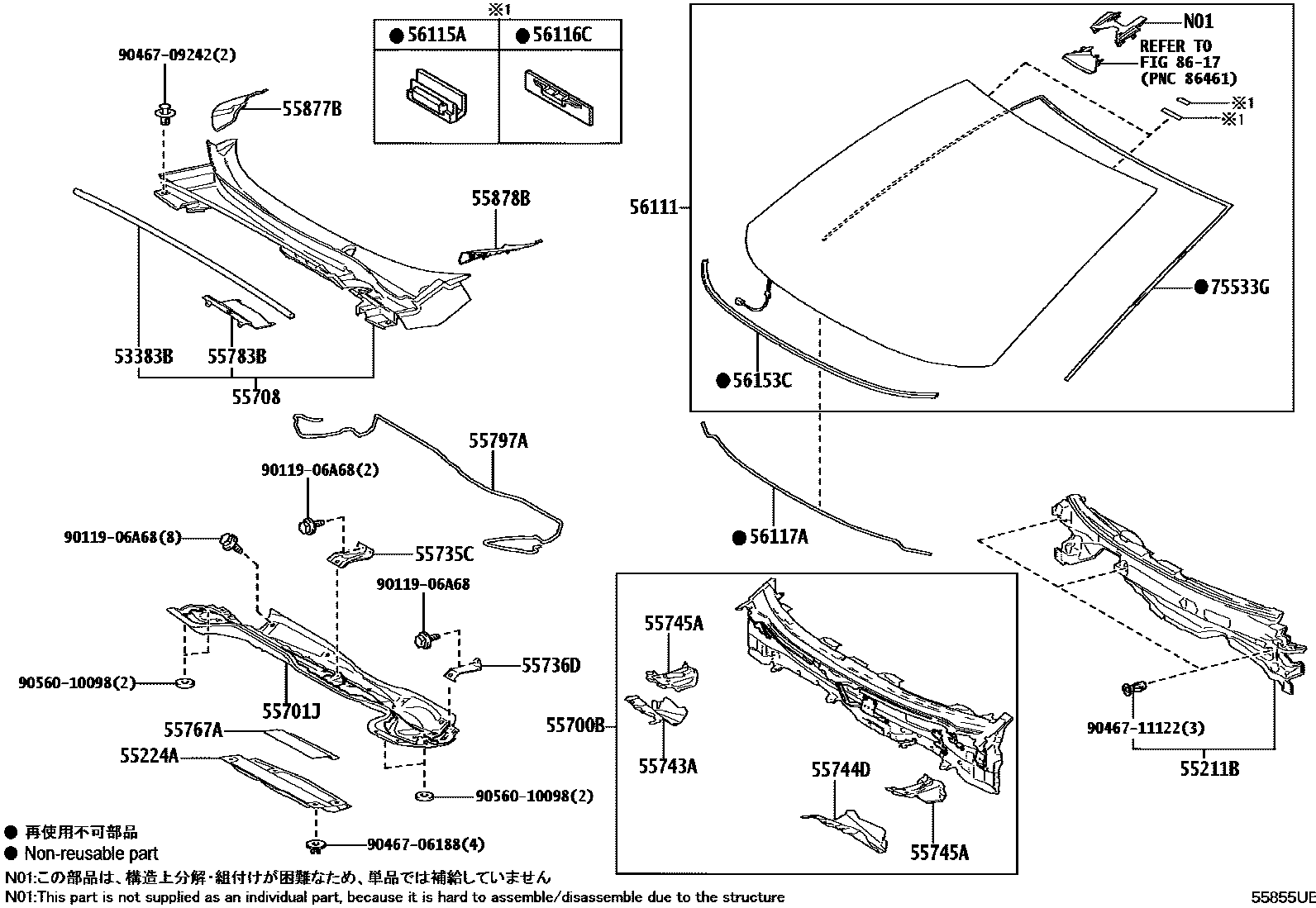

Toyota C-HR — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55211BSILENCER, FRONT PANEL
55224AINSULATOR, DASH PANEL, OUTER NO.2
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55735CREINFORCEMENT, COWL BODY MOUNTING, RH
55736DREINFORCEMENT, COWL BODY MOUNTING, LH
55743AEXTENSION, COWL TO COWL SIDE, RH
55744DEXTENSION, COWL TO COWL SIDE, LH
55745AREINFORCEMENT, COWL TOP, INNER
RH
LH
55767ASHEET, COWL TOP INSULATOR, NO.5
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55797ASEAL, COWL WATER EXTRACT
55877BCOVER, COWL VENT, RH
55878BCOVER, COWL VENT, LH
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=1339
*D,L=1339,WINTER PACKAGE
*D,L=1339,WINTER PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
*D,L=1339,WINTER PACKAGE&HEAD UP DISPLAY-WITH
*D,L=1339,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
*D,L=1339,HEAD UP DISPLAY-WITH
56153CMOULDING, FRONT WINDOW, INNER CENTER
75533GMOULDING, WINDSHIELD, OUTSIDE
8617
9011906A68
9046706188
9046709242
9046711122
9056010098
28 parts on this diagram · 2 diagrams in section
