Toyota C-HR — AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-F4720iMAXH20,25,ZYX20..LHD202310-202510

main89170-F4730iMAXH20,25,ZYX20..RHD..EUR202310-202510

main89170-F4850iMAXH20,25,ZYX20..ARL202310-202510

main89170-F4860iMAXH21..LHD202401-202510

main89170-F4870iMAXH21..RHD202401-202510

89173ASENSOR, AIRBAG, FRONT RH

main89173-F9030iMAXH2#,ZYX20202310

89174ASENSOR, AIRBAG, FRONT LH

main89173-F9030iMAXH2#,ZYX20202310

89831DSENSOR, FLOOR SIDE AIRBAG, RH

main89831-F4080iMAXH2#,ZYX20202310

89831ESENSOR, FLOOR SIDE AIRBAG, LH

main89831-F4080iMAXH2#,ZYX20202310

89835SENSOR, DOOR SIDE AIRBAG, LH

main8983A-F4030iMAXH2#,ZYX20202310

89865SENSOR, DOOR SIDE AIRBAG, RH

main8983A-F4030iMAXH2#,ZYX20202310

90105W0251

main90105-W0251

90119W0206

main90119-W0206

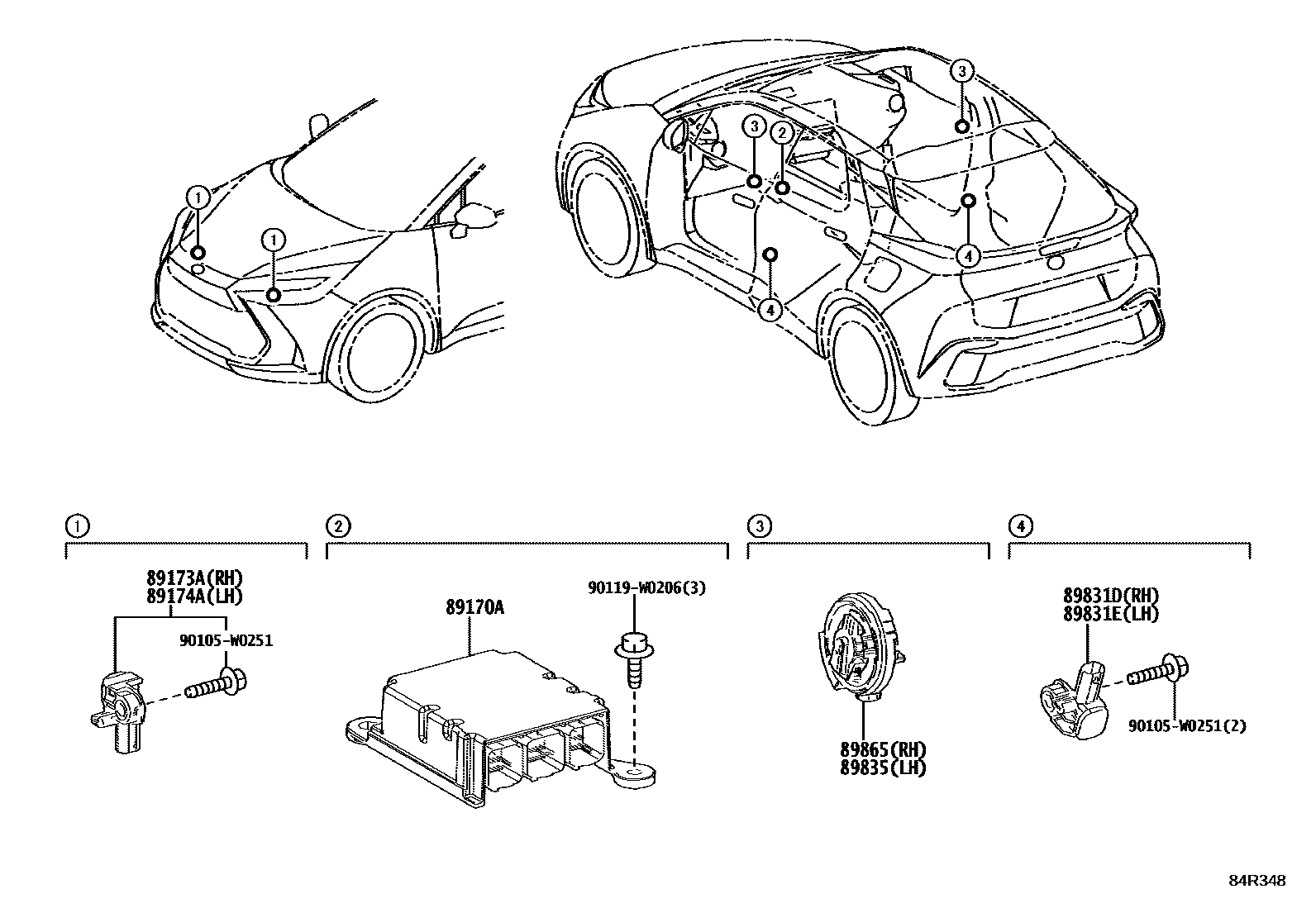

9 parts on this diagram · 1 diagram in section
