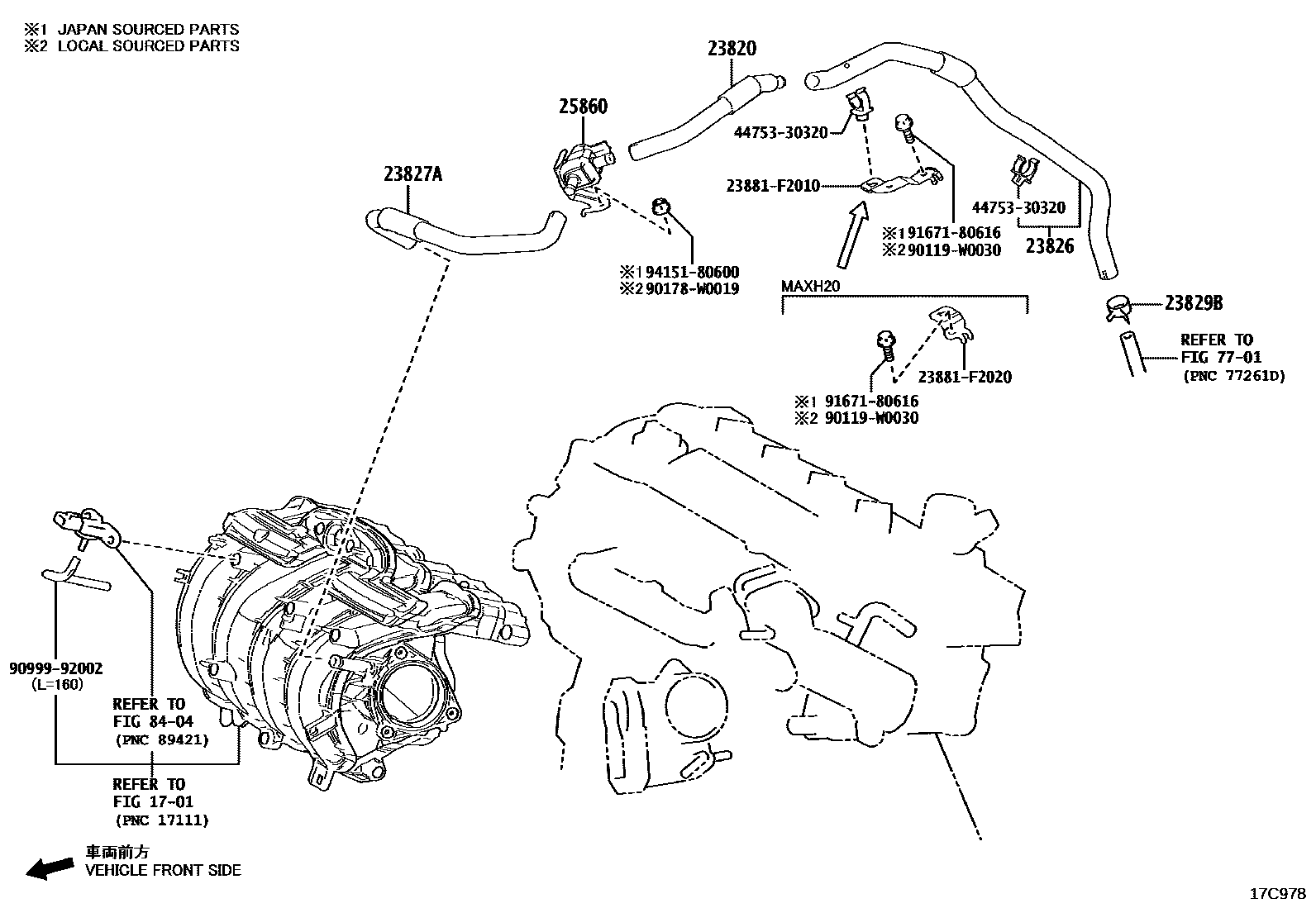

Toyota C-HR — VACUUM PIPING
1701
23820HOSE ASSY, FUEL VAPOR FEED
(J)
(J)
(L)
(L)
23826HOSE, FUEL VAPOR FEED, NO.1
(L)
(J)
(J)
(J)
(L)
23827AHOSE, FUEL VAPOR FEED, NO.2
(J)
(J)
(L)
(L)
(L)
(J)
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
25860VALVE ASSY, VACUUM SWITCHING, NO.1
7701
8404
23881F2010BRACKET, FUEL HOSE
main23881-F2010
23881F2020BRACKET, FUEL HOSE
main23881-F2020
4475330320CLAMP, VACUUM RESERVOIR, NO.2
90119W0030
90178W0019
9099992002
9167180616
9415180600
16 parts on this diagram · 4 diagrams in section
