Toyota C-HR — SUSPENSION CROSSMEMBER & UNDER COVER

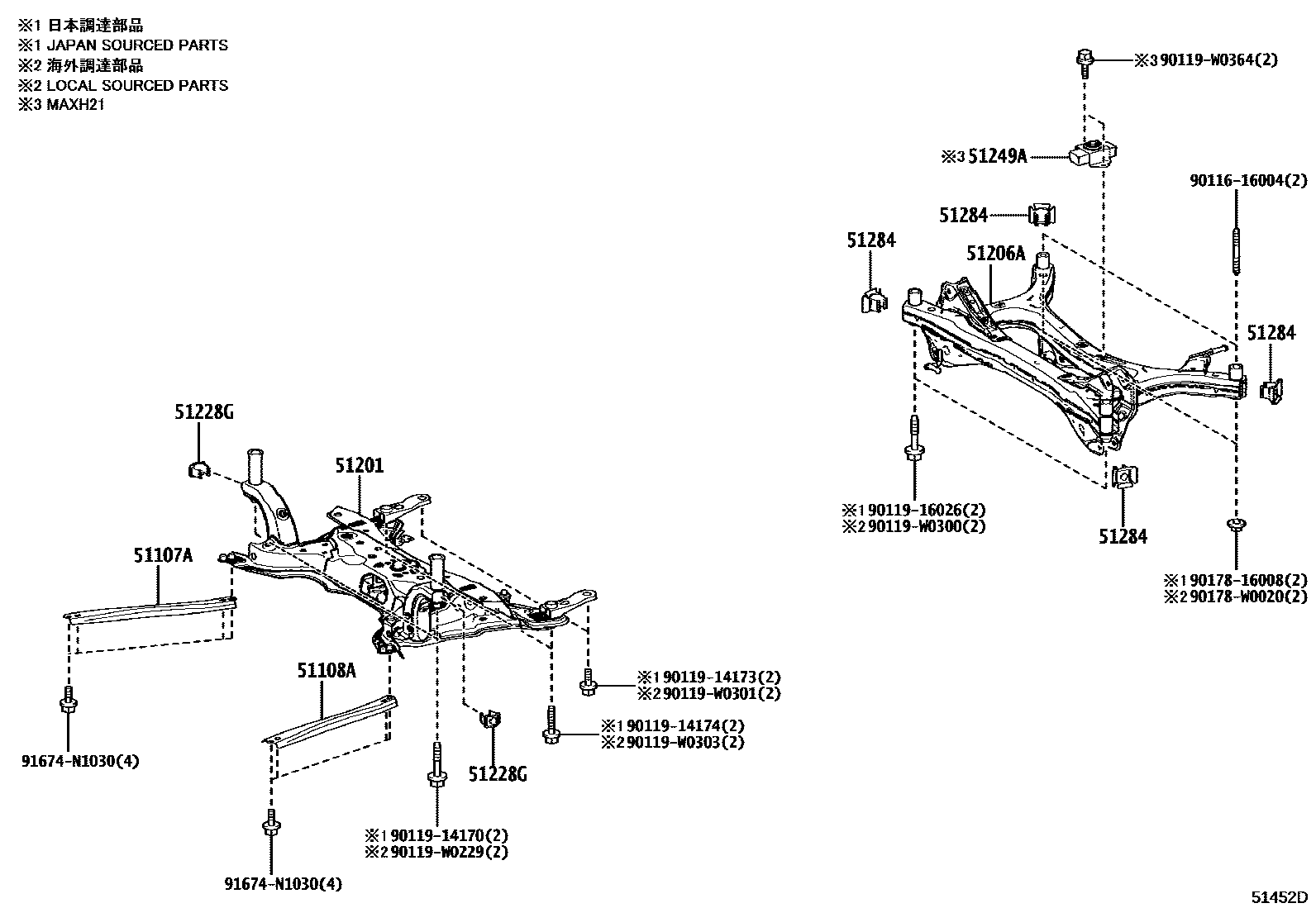

0001 1SUSPENSION CROSSMEMBER 0002 1SUSPENSION CROSSMEMBER 0003 1UNDER COVER 0004 1UNDER COVER 0005 1UNDER COVER

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51151-F4010iMAXH2#,ZYX20202310

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51151-F4010iMAXH2#,ZYX20202310

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-F4070iMAXH2#,ZYX20202310

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-16041iMAXH25¥52,200202310

main51206-F4120iMAXH20,21,ZYX20202310

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-F4010iMAXH2#,ZYX20202310

51249ADAMPER, REAR SUSPENSION MEMBER

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-F4010iMAXH20,21,ZYX20202310

9011616004

main90116-16004¥610

9011914170

main90119-14170¥490

9011914173

main90119-14173¥310

9011914174

main90119-14174¥360

9011916026

main90119-16026¥610

90119W0229

main90119-W0229

90119W0300

main90119-W0300

90119W0301

main90119-W0301

90119W0303

main90119-W0303¥360

90119W0364

main90119-W0364

9017816008

main90178-16008¥190

90178W0020

main90178-W0020

91674N1030

main91674-N1030¥120

20 parts on this diagram · 5 diagrams in section
