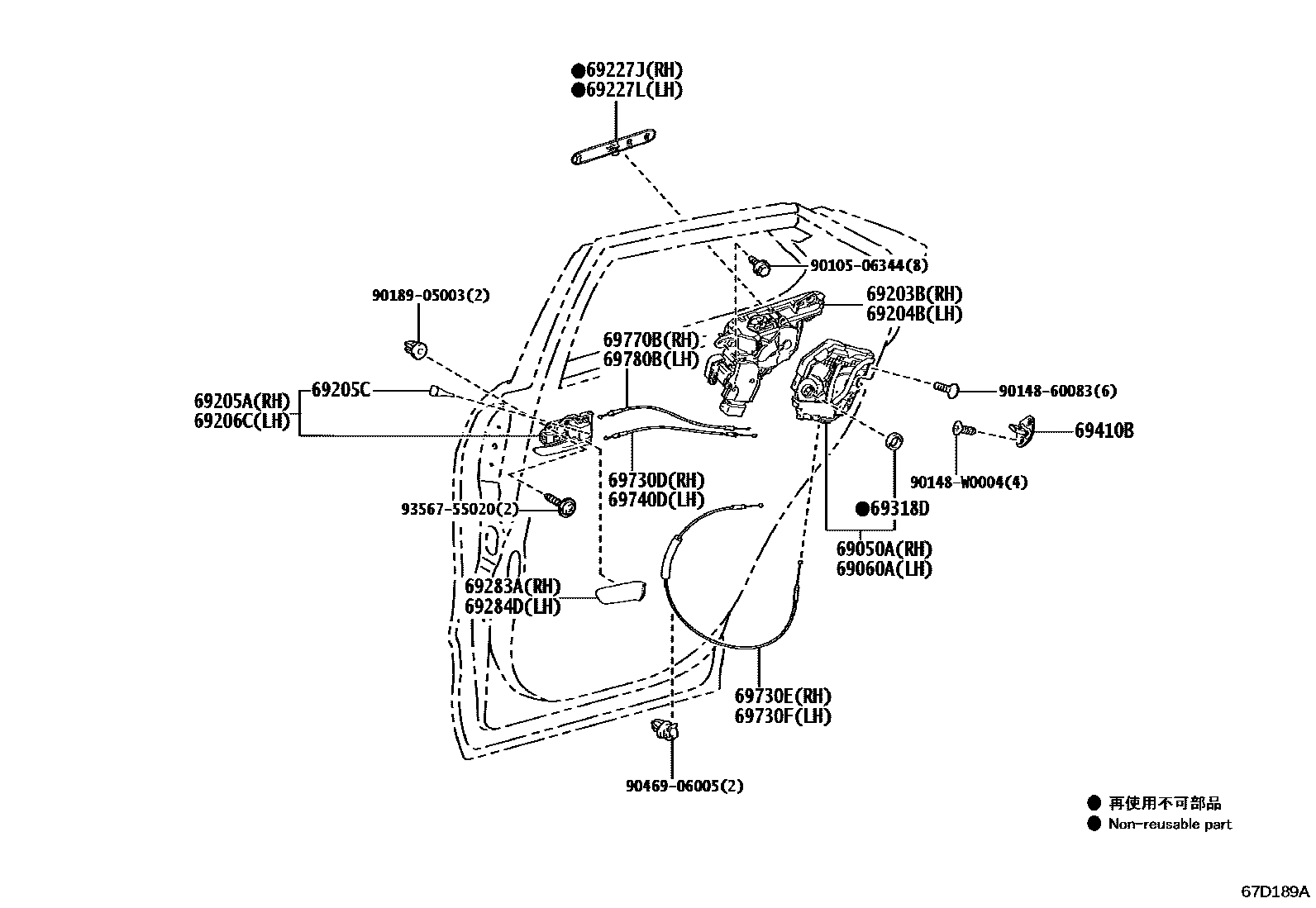

Toyota C-HR — REAR DOOR LOCK & HANDLE
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
69203BHANDLE SUB-ASSY, REAR DOOR, OUTSIDE RH
69204BHANDLE SUB-ASSY, REAR DOOR, OUTSIDE LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM2#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040 ,2MQ
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2VP
GRAY ME.,1G3
GRAY ME.,1G3 ,2NB
ASH GRAY ME.,2VF
SILVER ME.,1L0
SILVER ME.,1L0 ,2VU
PRECIOUS SILVER,2MR
BLACK MC.,209
EMOTIONAL RED 2,3U5
EMOTIONAL RED 2,2TB ,3U5
SULFUR ME.,2YT
DK. TEAL M.M.,2YB ,785
DK. TEAL M.M.,785
DEEP AMETHYST M.M.,2XE ,9AH
DEEP AMETHYST M.M.,9AH
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
SUPER WHITE 2,040 ,2MQ
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2VP
GRAY ME.,1G3
GRAY ME.,1G3 ,2NB
ASH GRAY ME.,2VF
SILVER ME.,1L0 ,2VU
SILVER ME.,1L0
PRECIOUS SILVER,2MR
BLACK MC.,209
EMOTIONAL RED 2,3U5
EMOTIONAL RED 2,2TB ,3U5
SULFUR ME.,2YT
DK. TEAL M.M.,785
DK. TEAL M.M.,2YB ,785
DEEP AMETHYST M.M.,2XE ,9AH
DEEP AMETHYST M.M.,9AH
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730ECABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.1
69730FCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.2
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9010506344
9014860083
90148W0004
9018905003
9046906005
9356755020
25 parts on this diagram · 1 diagram in section
