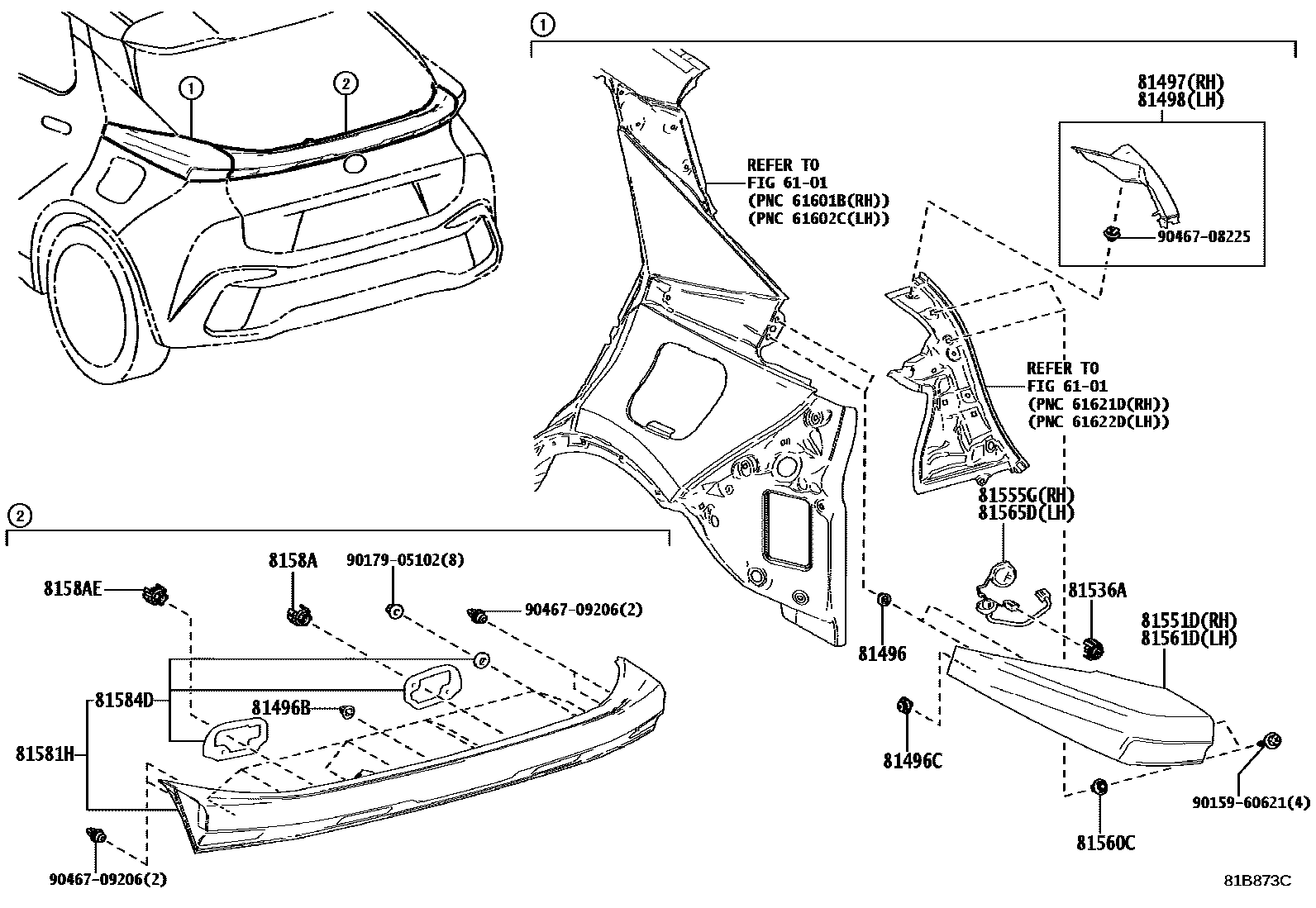

Toyota C-HR — REAR COMBINATION LAMP

0001 1 0002 1

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iMAXH2#,ZYX20¥70202310

81496BGUIDE, REAR LAMP

main81496-78010iMAXH2#,ZYX20¥90202310

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iMAXH2#,ZYX20¥100202310

81497COVER, REAR COMBINATION LAMP, RH

main81497-F4050iMAXH2#,ZYX20202310

81498COVER, REAR COMBINATION LAMP, LH

main81498-F4050iMAXH2#,ZYX20202310

81536ALED, REAR COMBINATION LAMP

main81536-F4200iMAXH2#,ZYX20202310

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-F4200iMAXH2#,ZYX20202310

81555GCORD, REAR COMBINATION LAMP, RH

main81555-F4200iMAXH2#,ZYX20202310

81560CGROMMET

main90189-06242iMAXH2#,ZYX20¥70202310

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-F4200iMAXH2#,ZYX20202310

81565DCORD, REAR COMBINATION LAMP, LH

main81565-F4200iMAXH2#,ZYX20202310

81581HLENS & BODY, REAR LAMP

main81581-F4210iMAXH2#,ZYX20..RHD202310-202411

main81581-F4211iMAXH2#,ZYX20..RHD202411

main81581-F4220iMAXH2#,ZYX20..LHD202310-202411

main81581-F4221iMAXH2#,ZYX20..LHD202411

81584DGASKET, REAR LAMP

main81584-F4210iMAXH2#,ZYX20202310

8158ALED, REAR LAMP

main8158A-F4210iMAXH2#,ZYX20202310

8158AELED, BACK-UP LAMP

main8158B-F4210iMAXH2#,ZYX20202310

9015960621

main90159-60621¥60

9017905102

main90179-05102¥90

9046708225

main90467-08225¥60

9046709206

main90467-09206¥80

20 parts on this diagram · 2 diagrams in section
