Toyota C-HR — PARKING BRAKE & CABLE

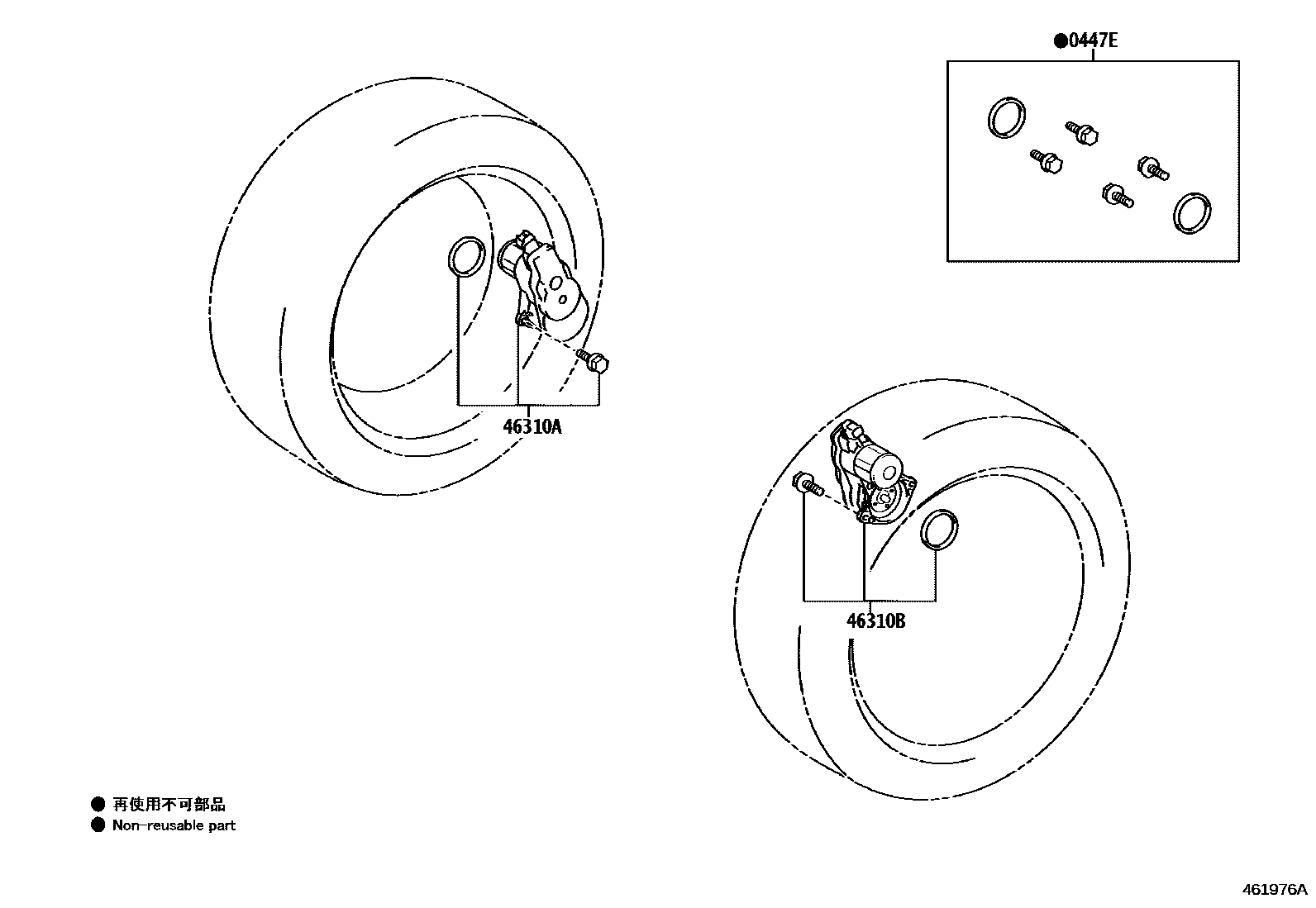

Parts diagram

0447ESEAL KIT, PARKING BRAKE ACTUATOR

main0447E-0D010i202310

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-09005i202310

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-09005i202310

3 parts on this diagram · 1 diagram in section
