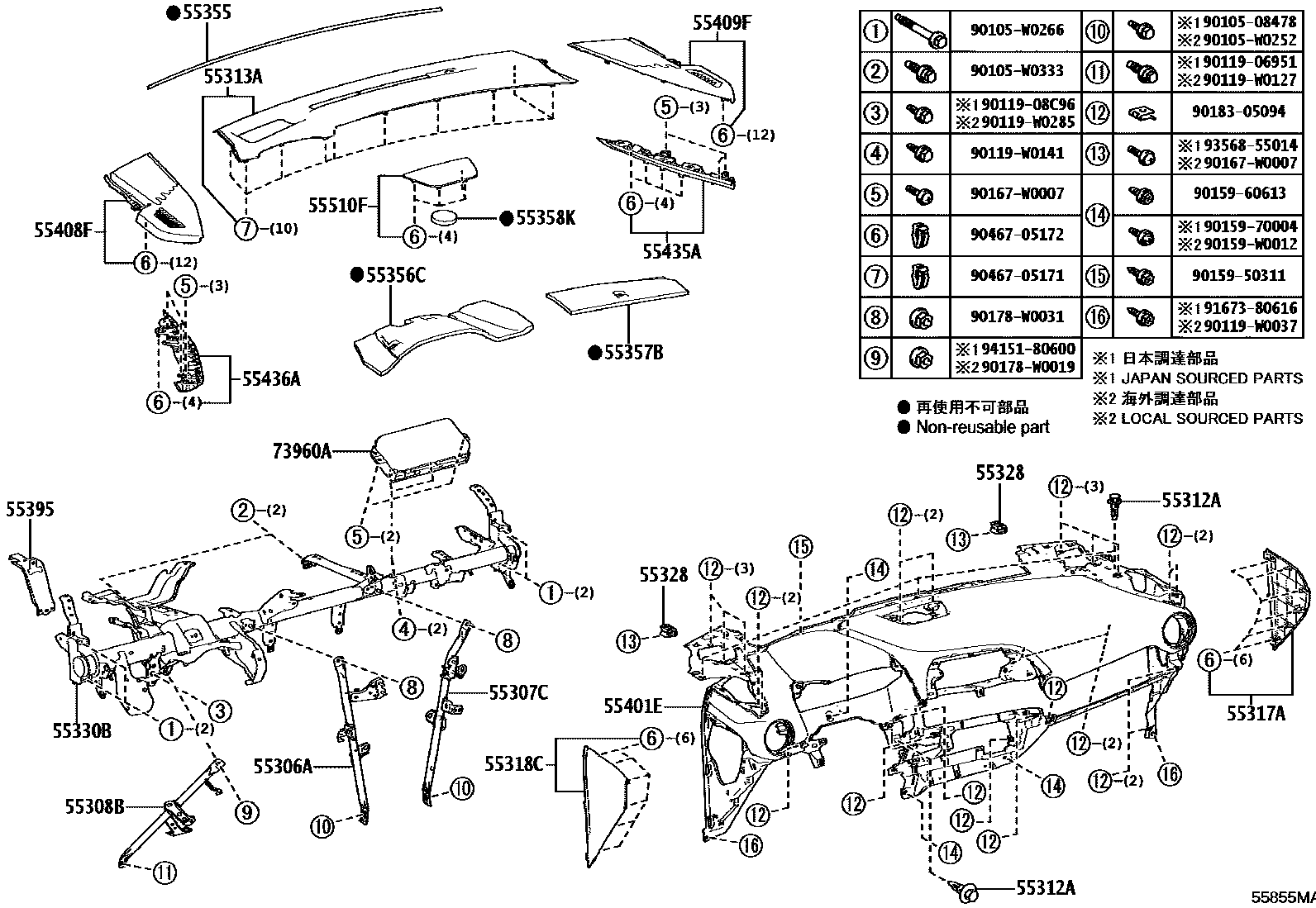

Toyota C-HR — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-F4040iMAXH2#,ZYX20..LHD202310

main55306-F4050iMAXH2#,ZYX20..RHD202310

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-F4030iMAXH2#,ZYX20..LHD202310

main55307-F4070iMAXH2#,ZYX20..RHD202310

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-F4050iMAXH2#,ZYX20..LHD202310

main55308-F4060iMAXH2#,ZYX20..RHD202310

55312ACLIP, INSTRUMENT PANEL

main52161-02030iMAXH2#,ZYX20¥140202310

55313APANEL, INSTRUMENT MAIN

main55313-F4010iMAXH2#,ZYX20..LHD202310

main55313-F4030iMAXH2#,ZYX20..RHD202310

55317APANEL, INSTRUMENT SIDE, RH

main55317-F4050-C0iMAXH2#,ZYX20..LHD202310

BLACK,TRIM2#

main55317-F4060-C0iMAXH2#,ZYX20..RHD202310

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-F4050-C0iMAXH2#,ZYX20..LHD202310

BLACK,TRIM2#

main55318-F4060-C0iMAXH2#,ZYX20..RHD..EUR202310

BLACK,TRIM2#

main55318-F4080-C0iMAXH20,25,ZYX20..ARL202310

BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-02110iMAXH2#,ZYX20202310

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-F4110iMAXH2#,ZYX20..LHD202310

main55330-F4130iMAXH2#,ZYX20..RHD202310

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-F4050iMAXH2#,ZYX20202310

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-F4030iMAXH2#,ZYX20..E,G,K202310

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-F4020iMAXH2#,ZYX20..E,G,K202310

55358KCUSHION, INSTRUMENT PANEL, NO.4

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-F4010iMAXH2#,ZYX20..LHD202310

main55395-F4020iMAXH2#,ZYX20..RHD¥930202310

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-F4150-C0iMAXH2#,ZYX20..LHD202310-202404

BLACK,TRIM2#

sub55401-F4151

main55401-F4151-C0iMAXH2#,ZYX20..LHD202405

BLACK/SOFT BLACK,TRIM2#

main55401-F4160-C0iMAXH2#,ZYX20..RHD202310-202404

BLACK,TRIM2#

main55401-F4161-C0iMAXH2#,ZYX20..RHD202405

BLACK/SOFT BLACK,TRIM2#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-F4070iMAXH2#,ZYX20202310

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-F4040iMAXH2#,ZYX20202310

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-F4040-B0iMAXH2#,ZYX20..K,N202310

LIGHT GUN METAL,TRIM2#

main55435-F4040-B1iMAXH2#,ZYX20..E202310

PLATINUM,TRIM20,21

main55435-F4040-C3iMAXH2#,ZYX20..G202310

LIQUID BLACK,TRIM2#

main55435-F4040-C3iMAXH2#,ZYX20..G202310

LIQUID BLACK,TRIM20

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-F4040-B0iMAXH2#,ZYX20..K,N202310

LIGHT GUN METAL,TRIM2#

main55436-F4040-B1iMAXH2#,ZYX20..E202310

PLATINUM,TRIM20,21

main55436-F4040-C3iMAXH2#,ZYX20..G202310

LIQUID BLACK,TRIM2#

main55436-F4040-C3iMAXH2#,ZYX20..G202310

LIQUID BLACK,TRIM20

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-F4010iMAXH2#,ZYX20202310

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-F4070iMAXH2#,ZYX20202310

9010508478

main90105-08478¥80

90105W0252

main90105-W0252

90105W0266

main90105-W0266

90105W0333

main90105-W0333

9011906951

main90119-06951¥80

9011908C96

main90119-08C96¥80

90119W0037

main90119-W0037¥60

90119W0127

main90119-W0127¥80

90119W0141

main90119-W0141

90119W0285

main90119-W0285

9015950311

main90159-50311¥70

9015960613

main90159-60613¥60

9015970004

main90159-70004¥60

90159W0012

main90159-W0012

90167W0007

main90167-W0007¥110

90178W0019

main90178-W0019¥110

90178W0031

main90178-W0031¥100

9018305094

main90183-05094¥90

9046705171

main90467-05171¥60

9046705172

main90467-05172¥60

9167380616

main91673-80616¥60

9356855014

main93568-55014¥70

9415180600

main94151-80600¥60

44 parts on this diagram · 8 diagrams in section
