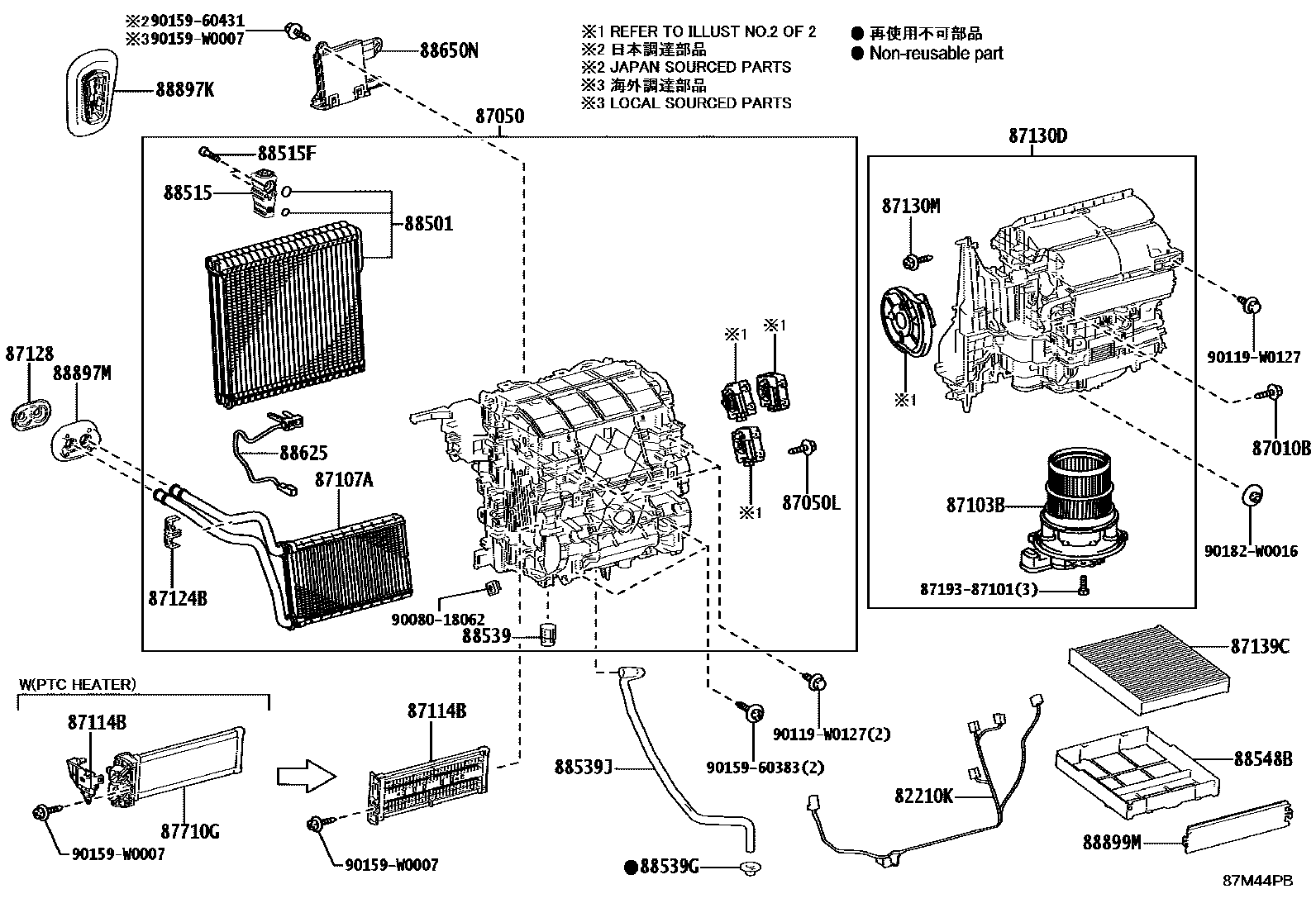

Toyota C-HR — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1 0005 1DAMPER SERVO 0006 1DAMPER SERVO

82210KHARNESS ASSY, AIR CONDITIONER

main82212-F4060iMAXH21..LHD202401

main82212-F4090iMAXH21..RHD202401

main82212-F4100iMAXH20,25,ZYX20..LHD..(E,G,K)202310

GEORGIA SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main82212-F4100iMAXH20,25,ZYX20..LHD..(E,G,K)202310

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main82212-F4100iZYX20..LHD..N..EUR202310

MOLDOVA SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main82212-F4100iZYX20..LHD..N..EUR202310

AZERBAIJAN SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main82212-F4100iZYX20..LHD..N..EUR202310

UKRAINE SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main82212-F4110iZYX20..LHD..N202310

main82212-F4120iZYX20..RHD..N..EUR202310

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main82212-F4130iZYX20..RHD..N..EUR202310

87010BSCREW(FOR AIR CONDITIONER UNIT)

main90099-00968iMAXH2#,ZYX20202310

87050RADIATOR ASSY, AIR CONDITIONER

main87050-F4320iMAXH20,25,ZYX20..LHD..(E,G,K)202310

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main87050-F4330iZYX20..LHD..N202310

main87050-F4360iZYX20..RHD..N..EUR202310

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main87050-F4370iZYX20..RHD..N..EUR202310

main87050-F4400iMAXH20,25,ZYX20..ARL202310-202502

main87050-F4440iMAXH21..LHD202401

main87050-F4450iMAXH21..RHD202401

87050LSCREW(FOR AIR CONDITIONER RADIATOR)

main90099-00968iZYX20..LHD..N..EUR202310

GEORGIA SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main90099-00968iZYX20..LHD..N202310

MOLDOVA SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main90099-00968iZYX20..LHD..N202310

AZERBAIJAN SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main90099-00968iZYX20..LHD..N202310

UKRAINE SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main90099-00968iZYX20..LHD..N202310

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02740iMAXH2#,ZYX20..RHD202310

main87103-02750iMAXH2#,ZYX20..LHD202310

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-F4010iMAXH2#,ZYX20..RHD202310

main87107-F4020iMAXH2#,ZYX20..LHD202310

87114BCOVER, HEATER

main87114-F4050iMAXH20,25,ZYX20..LHD..EUR202310

COLD AREA SPEC

main87114-F4050iMAXH20,25,ZYX20..LHD..EUR202310

SUB COLD AREA SPEC

main87114-F4060iMAXH20,25,ZYX20..ARL,EUR202310

87124BCLAMP, HEATER

main87124-F4010iMAXH2#,ZYX20202310

87128GROMMET, HEATER

main87128-28010iMAXH2#,ZYX20¥400202310

87130DBLOWER ASSY

main87130-F4011iMAXH21..RHD202401

main87130-F4021iMAXH21..LHD202401

main87130-F4090iMAXH20,25,ZYX20..LHD202310

main87130-F4100iMAXH20,25,ZYX20..RHD202310

87130MSCREW(FOR BLOWER)

main90099-00968iMAXH2#,ZYX20202310

87139CFILTER, CLEAN AIR

main87139-F4020iMAXH20,25,ZYX20202310

POLLEN FILTER

main87139-F4030iMAXH2#,ZYX20202310

DEODORANT FILTER

87710GQUICK HEATER ASSY

main87710-F4030iZYX20..TUR202310

COLD AREA SPEC

main87710-F4030iZYX20..TUR202310

SUB COLD AREA SPEC

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-F4100iMAXH2#,ZYX20202310

88515VALVE, COOLER EXPANSION

main88515-02560iMAXH20,25,ZYX20..ARL202310-202502

main88515-02770iMAXH20,25,ZYX20..EUR,TUR202310

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542iMAXH2#,ZYX20¥120202310

88539HOSE, COOLER UNIT DRAIN, NO.1

main88899-10110iZYX20..LHD..N..EUR202310

AZERBAIJAN SPEC

main88899-10110iZYX20..LHD..N..EUR202310

AZERBAIJAN SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88899-10110iZYX20..LHD..N..EUR202310

UKRAINE SPEC

main88899-10110iZYX20..LHD..N..EUR202310

UKRAINE SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88899-10110iZYX20..LHD..N..EUR202310

GEORGIA SPEC

main88899-10110iZYX20..LHD..N..EUR202310

GEORGIA SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88899-10110iZYX20..LHD..N..EUR202310

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88899-10110iZYX20..LHD..N..EUR202310

MOLDOVA SPEC

main88899-10110iZYX20..LHD..N..EUR202310

MOLDOVA SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-47010iMAXH2#,ZYX20¥220202310

88539JHOSE, DRAIN COOLER

main88539-F4030iMAXH20,25,ZYX20..RHD202310

main88539-F4040iMAXH20,25,ZYX20..LHD202310

main88539-F4110iMAXH21..RHD202401

main88539-F4120iMAXH21..LHD202401

88548BCASE, AIR FILTER

main88899-F4030iZYX20..N..(EUR,TUR)202310

main88899-F4430iZYX20..N..(EUR,TUR)202310

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

88625THERMISTOR, COOLER, NO.1

main88620-02210iMAXH20,25,ZYX20..LHD..(E,G,K)..EUR202310

AZERBAIJAN SPEC

main88620-02210iMAXH20,25,ZYX20..LHD..(E,G,K)..EUR202310

UKRAINE SPEC

main88620-02210iMAXH20,25,ZYX20..LHD..(E,G,K)..EUR202310

GEORGIA SPEC

main88620-02210iMAXH20,25,ZYX20..LHD..(E,G,K)..EUR202310

MOLDOVA SPEC

main88620-02210iMAXH20,25,ZYX20..ARL202310-202502

main88620-F4010iMAXH2#,ZYX20..(E,G,K)..(EUR,TUR)202310

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

88650NAMPLIFIER ASSY, AIR CONDITIONER

main886H0-F4010iMAXH20,25,ZYX20..K202310-202411

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

main886H0-F4011iMAXH20,25,ZYX20..E,G202411

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

main886H0-F4020iMAXH20,25,ZYX20..K,N202310-202411

main886H0-F4021iMAXH20,25,ZYX20..LHD..K..EUR202411

ISRAEL SPEC&ANTI-BACTERIA & MINUS ION SUPPLY-WITH

main886H0-F4021iMAXH20,25,ZYX20..LHD..(E,G)..EUR202411

ISRAEL SPEC&ANTI-BACTERIA & MINUS ION SUPPLY-WITHOUT

main886H0-F4021iMAXH20,25,ZYX20..LHD..(E,G)..EUR202411

ANTI-BACTERIA & MINUS ION SUPPLY-WITHOUT

main886H0-F4021iMAXH20,25,ZYX20..LHD..K..EUR202411

ISRAEL SPEC

main886H0-F4030iMAXH21..LHD..K202401

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

main886H0-F4040iMAXH21..LHD..K202401

main886H0-F4050iMAXH21..RHD..(E,G)202401

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

main886H0-F4060iMAXH21..RHD..K202401

88897KGROMMET, (FOR COOLER PIPE)

main88899-F4040iMAXH20,25,ZYX20202310

main88899-F4440iMAXH21202401

88897MGROMMET (FOR HEATER PIPE)

main87128-F4010iMAXH2#,ZYX20202310

88899MPLATE, COVER(FOR AIR FILTER)

main88899-F4011iMAXH2#,ZYX20202310

8719387101

main87193-87101¥0

9008018062

main90080-18062

90119W0127

main90119-W0127¥80

9015960383

main90159-60383¥70

9015960431

main90159-60431¥70

90159W0007

main90159-W0007¥100

90182W0016

main90182-W0016¥110

32 parts on this diagram · 6 diagrams in section
