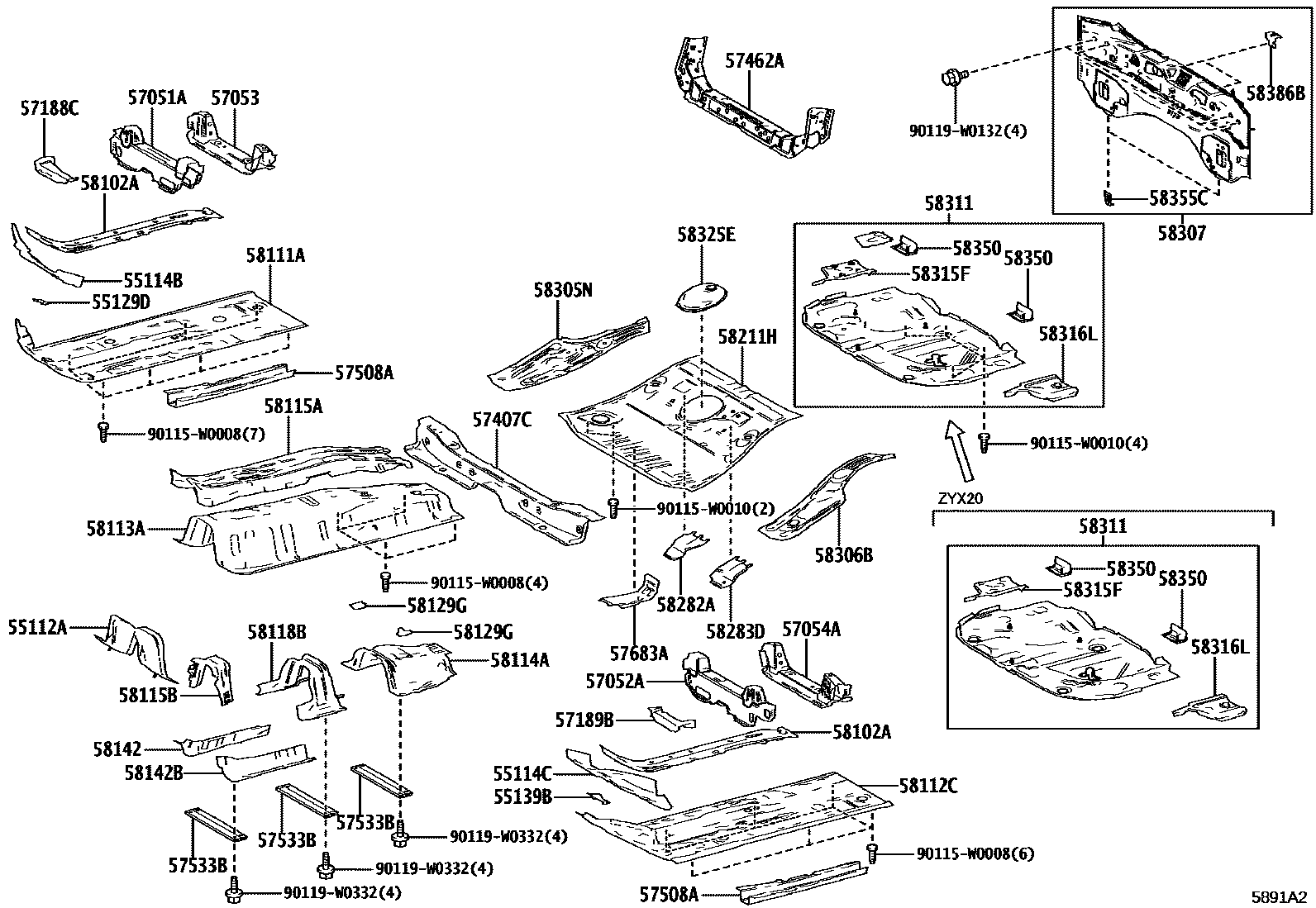

Toyota C-HR — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

55112APANEL, DASH, NO.2

main55112-F4010iMAXH20,25,ZYX20202310

main55112-F4070iMAXH21202401

55114BPANEL, DASH, LOWER

main55113-02040iMAXH2#,ZYX20202310

55114CPANEL, DASH, LOWER LH

main55114-02080iMAXH2#,ZYX20202310

55129DCOVER, DASH PANEL HOLE, RH

main55129-F4010iMAXH2#,ZYX20202310

55139BCOVER, DASH PANEL HOLE, LH

main55139-F4010iMAXH2#,ZYX20202310

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-F4011iMAXH20,25,ZYX20202310

main57051-F4070iMAXH21202401

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-F4011iMAXH20,25,ZYX20202310

main57052-F4070iMAXH21202401

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-F4070iMAXH20,25,ZYX20202310

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-F4070iMAXH20,25,ZYX20202310

57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH

main57188-F4010iMAXH20,25,ZYX20202310

main57188-F4070iMAXH21202401

57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH

main57189-F4010iMAXH20,25,ZYX20202310

main57189-F4070iMAXH21202401

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-F4010iMAXH20,25,ZYX20202310

main57407-F4090iMAXH21202401

57462AMEMBER, CENTER FLOOR CROSS, NO.2

main57405-F4010iMAXH2#,ZYX20202310

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-F4010iMAXH20,25,ZYX20202310

57533BBRACE, FRONT FLOOR, CENTER

main57533-F4010iMAXH20,25,ZYX20202310

57683ABRACKET, FUEL TANK MOUNTING, NO.1

main57683-F4020iMAXH2#,ZYX20202310

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-02190iMAXH20,25,ZYX20202310

main58102-F4070iMAXH21202401

58111APAN, FRONT FLOOR, RH

main58111-F4012iMAXH20,25,ZYX20202310

main58111-F4080iMAXH21202401

58112CPAN, FRONT FLOOR, LH

main58112-F4012iMAXH20,25,ZYX20202310

58113APANEL, FRONT FLOOR, CENTER

main58113-F4100iMAXH20,25,ZYX20202310

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-F4011iMAXH20,25,ZYX20202310

58115AREINFORCEMENT, FRONT FLOOR PANEL

main58115-F4010iMAXH20,25,ZYX20202310

58115BPANEL, FRONT FLOOR, REAR

main58117-F4010iMAXH20,25,ZYX20202310

main58117-F4070iMAXH21202401

58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2

main58118-F4010iMAXH20,25,ZYX20202310

main58118-F4070iMAXH21202401

58129GBRACKET, FRONT CROSS TO FRONT PANEL MEMBER REINFORCE

main58129-02020iMAXH20,25,ZYX20202310

58142REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN

main58141-F4011iMAXH20,25,ZYX20202310-202406

main58141-F4012iMAXH20,25,ZYX20202407

58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH

main58142-F4011iMAXH20,25,ZYX20202310-202406

main58142-F4012iMAXH20,25,ZYX20202407

58211HPAN, CENTER FLOOR

main58211-F4010iMAXH2#,ZYX20202310

58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-F4010iMAXH2#,ZYX20202310

58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH

main58283-F4010iMAXH2#,ZYX20202310

58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH

main58305-F4011iMAXH2#,ZYX20202310

58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH

main58306-F4012iMAXH2#,ZYX20202310

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-F4090iMAXH2#,ZYX20202310

58311PAN, REAR FLOOR

main58301-F4150iZYX20202310

main58301-F4160iMAXH20202310

main58301-F4170iMAXH25202310

main58301-F4190iMAXH21202401

58315FEXTENSION, REAR FLOOR SIDE PANEL, FRONT

main58315-F4050iZYX20202310

main58315-F4060iMAXH20,25202310

58316LEXTENSION, REAR FLOOR SIDE PANEL, REAR

main58316-F4050iMAXH2#,ZYX20202310

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-F4011iMAXH2#,ZYX20202310

58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH

main58350-F4010iMAXH2#,ZYX20202310

58355CBRACKET, REAR BUMPER ARM

main58355-F4050iMAXH2#,ZYX20202310

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-02160iMAXH2#,ZYX20202310

90115W0008

main90115-W0008¥60

90115W0010

main90115-W0010¥60

90119W0132

main90119-W0132

90119W0332

main90119-W0332

44 parts on this diagram · 2 diagrams in section
