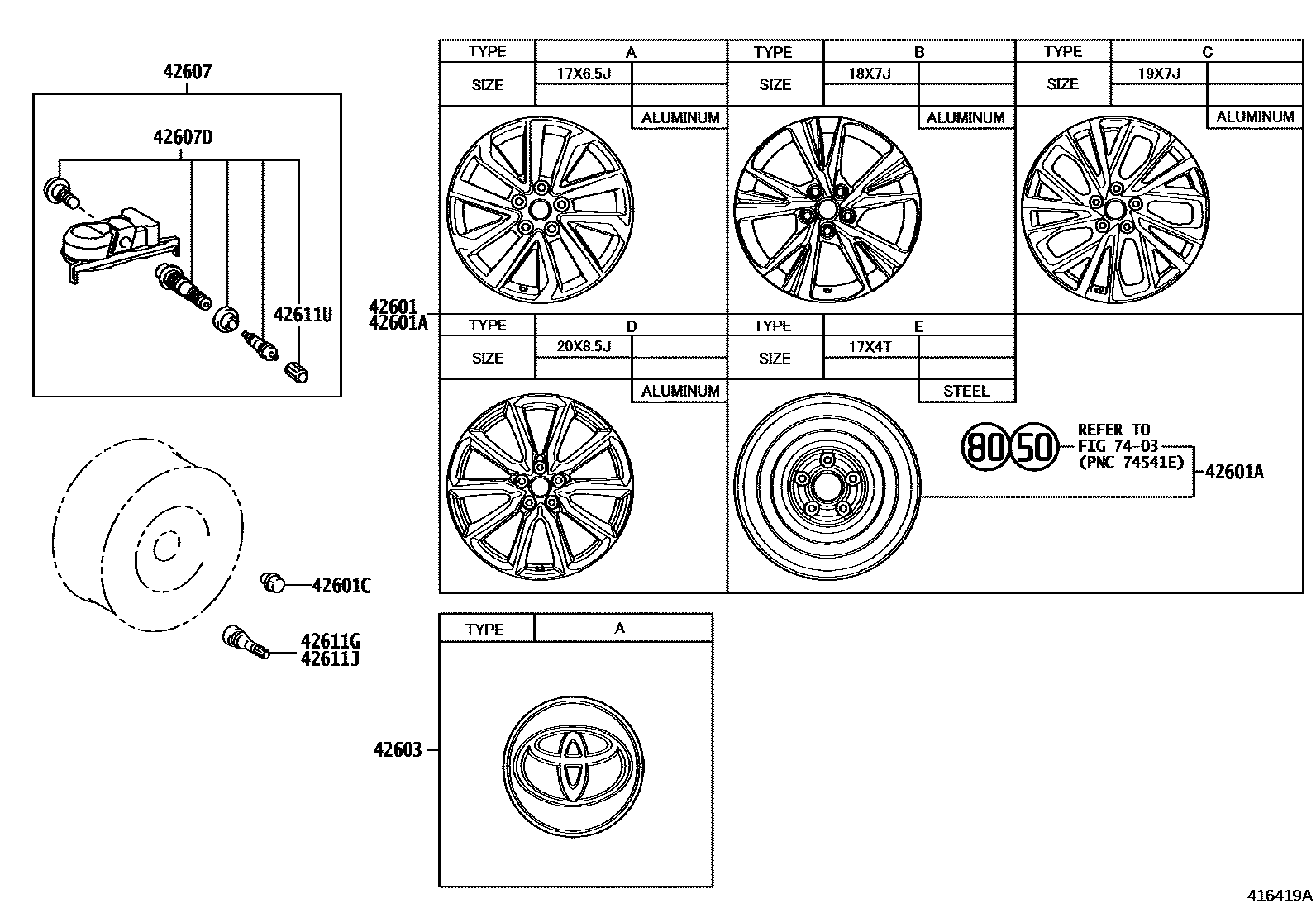

Toyota C-HR — DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL & WHEEL HUB ORNAME0002 1BALANCE WEIGHT

42601WHEEL, DISC

main42611-F4321iMAXH2#,ZYX20..E,G,K202310

17X6.5J, #,TIRE & DISC WHEEL-215/60R17,ALUMINUM,TYPE A:REFER ILLUST.

main42611-F4321iZYX20..N202310

17X6.5J, #,TYPE A:REFER ILLUST.

main42611-F4331iMAXH2#,ZYX20..K202310-202510

18X7J, #,TIRE & DISC WHEEL-225/55R18,ALUMINUM,TYPE B:REFER ILLUST.

main42611-F4331iMAXH2#,ZYX20..E202310-202510

18X7J, #,TYPE B:REFER ILLUST.

main42611-F4341iMAXH2#,ZYX20..K202310

19X7J, #,TIRE & DISC WHEEL-225/50R19,ALUMINUM,TYPE C:REFER ILLUST.

main42611-F4341iMAXH2#,ZYX20..E202310

19X7J, #,TYPE C:REFER ILLUST.

main42611-F4361iMAXH2#,ZYX20..G202310

19X7J, #,TYPE C:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

42601CNUT, HUB (FOR AXLE)

main90942-01033iZYX20..N¥430202310

TIRE & DISC WHEEL-215/60R17,ALUMINUM

main90942-01115iMAXH2#,ZYX20..E,G,K¥340202310

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-F4010iMAXH2#,ZYX20..K202310-202510

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-02060iMAXH2#,ZYX20..EUR,TUR202310

42607DVALVE, TIRE PRESSURE MONITOR

main90942-W5002iMAXH2#,ZYX20..EUR,TUR202310

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iMAXH20,25,ZYX20..ARL¥390202310

42611JVALVE (FOR TUBELESS TIRE SPARE)

42611UCAP, TIRE VALVE

main90942-W5001iMAXH2#,ZYX20..EUR,TUR202310

7403

10 parts on this diagram · 2 diagrams in section
